500kg Welding Positioner, Rotary Tilting Welding Turning Table for Pipe & Vessel Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 75.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,L/C,D/A |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-500
Document
Model NO.:
BWJ-500
Rated Load:
500kg
Control Mode:
Normal Or CNC
Horizontal Loading Weight:
500kg
Vertical Loading Weight:
250kg
Rotation Speed:
0.1-1.5rpm Stepless Adjustable
Tilting Motor:
Manual
Tilting Range:
0~120°
Turntable Diameter:
600mm (Customizable)
Highlight:
500kg welding positioner table
,rotary tilting welding table
,pipe vessel welding positioner
Product Description

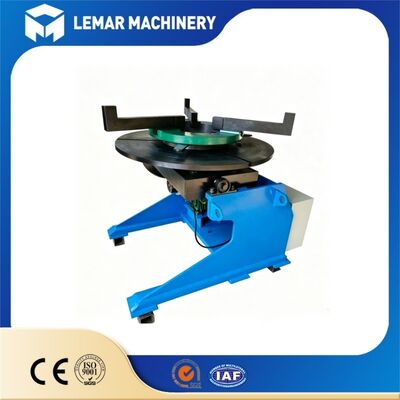

500kg Welding Positioner, Rotary Tilting Welding Turning Table for Pipe & Vessel Welding
Product Overview
The 500kg welding positioner is a popular welding auxiliary machine designed to rotate and tilt workpieces for optimal welding angles. Equipped with a VFD speed regulation system, the table operates smoothly and stably, enabling operators to efficiently complete circumferential welding of cylinders, pipes, and small pressure vessels. This significantly improves welding quality and efficiency, making it ideal for metal fabrication workshops.
Core Advantages
- Dual function of table rotation and workpiece tilting for optimal welding angle
- VFD stepless speed control ensures uniform and stable rotation
- T-slot worktable for easy fixture and workpiece clamping
- Robust welded steel frame, solid and durable for long-term operation
- Complete safety protection to guarantee operator and machine safety
- Simple operation, easy installation and low maintenance cost
Application Scope
- Circumferential welding for small pressure vessels and storage tanks
- Circular welding and assembly of steel pipes and pipe fittings
- Roller, cylinder and rotary mechanical parts welding
- Elbow and special-shaped metal workpiece positioning welding
- Small boiler and heat exchanger component welding
- Matching automatic welding machine for semi-automatic welding station
- Hardware and mechanical spare parts precision welding
Main Technical Parameters
| Item | Specification |
|---|---|
| Model | HJ-500 |
| Rated Load | 500kg |
| Tilting Angle | 0~120° |
| Rotation Speed | 0.1~2 rpm, infinitely variable speed |
| Standard Table Diameter | 800mm (customizable) |
| Table Type | T-slot worktable |
| Control Mode | Hand pendant remote control |
| Motor Power | 1.1kW |
| Power Supply | 380V/50Hz (220V/415V/60Hz customizable) |
| Structure | Heavy welded steel frame |
| Protection | Overload protection & emergency stop |
| Application | Pipe, cylinder, small pressure vessel |
Production & Quality Inspection
- Thick steel plate frame with stress relief treatment to prevent deformation
- Strict inspection for raw steel, motors, reducers and electrical components
- Precision machining for rotary shaft and mounting base
- No-load test and 120% overload running test before shipment
- Check painting quality, rotation stability and speed accuracy
- Test running videos and inspection records can be supplied
Customer Cases
- Supplied welding positioners for local pipe fabrication factories
- Delivered units for small pressure vessel manufacturers
- Served clients for cylinder and roller circular welding projects
- Provided equipment for machinery spare parts welding production
- Cooperated with overseas buyers for semi-automatic welding station
- Customized positioners for special-shaped workpiece welding
Frequently Asked Questions
What is the standard table size of this 500kg welding positioner?
Standard table diameter is 800mm, custom table size is available.
Can you supply chuck for clamping steel pipe?
Yes, 3 jaw or 4 jaw welding chuck can be equipped as optional part.
Can we customize voltage for different countries?
Yes. Standard is 380V/50Hz, 220V, 415V, 60Hz can be customized.
What workpieces is this positioner suitable for?
Ideal for small pressure vessel, steel pipe, cylinder and rotary mechanical parts.
How long is your production lead time?
Normally 20-30 working days after receiving deposit.
What is covered in your warranty?
1-year warranty for whole machine, consumable spare parts excluded. Lifelong technical support.
