D16 3D Welding Table with Five Sided Machined Surfaces
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
3D welding table with machined surfaces
,D16 welding table five sided
,welding table with precision machining

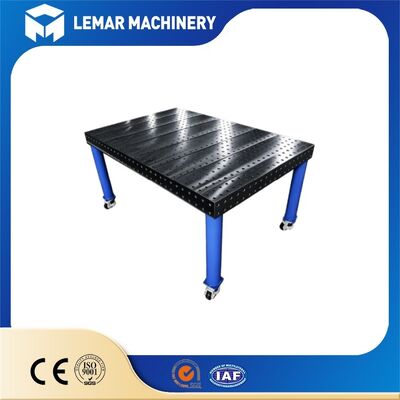

The D16 3D Welding Table with Five Sided Machined Surfaces delivers full 5-face CNC machining for true 3D flexible fixturing. Equipped with D16 (Φ16mm H7) 50×50mm grid holes on the top and four side walls, it allows vertical clamping, spatial frame assembly and seamless multi-table splicing.
Choose Q355 welded steel for cost efficiency or HT300 cast iron for maximum thermal stability. Optional plasma nitriding protects surfaces from welding spatter and abrasion. Compatible with global standard D16 modular fixtures, perfect for low & medium batch precision welding projects.
| Specification | Details |
|---|---|
| Aperture | Φ16mm (H7, 16.065~16.149mm) |
| Grid Spacing | 50mm × 50mm |
| Hole Position Tolerance | ±0.05mm |
| Flatness | ≤0.1mm/1000mm; High-precision version up to ≤0.05mm/1000mm |
| Perpendicularity | ≤0.1mm/200mm |
| Material | Q355 high-strength steel / HT300 cast iron optional |
| Table Top Thickness | 12mm, common table height: 100mm /150mm /200mm |
| Surface Treatment | Optional Plasma Nitriding, nitrided layer 0.2-0.4mm, HV450~700, anti-spatter, wear-resistant, high temperature deformation resistance |
| Load Capacity | Standard static load 2 tons; ultimate frame load approx. 5 tons |
| Surface Roughness | Ra1.6~Ra3.2 |
| Standard Sizes | 800×800, 1000×1000, 1200×800, 1500×1000, 2400×1200mm, custom sizes available |
- Holes on all five faces enable true 3D flexible positioning, offering far greater freedom in fixture setup compared to 2D tables.
- D16 welding table system with a 50mm grid provides high hole density, allowing for more closely spaced positioning points for small workpieces.
- Modular design means only the specific clamps need to be changed when switching products, significantly reducing costs and lead times associated with dedicated tooling.
- The nitrided version offers resistance to weld spatter and wear, ensuring a long service life.
- Multiple tables can be freely joined together, making it easy to scale up the setup for larger projects.
- Platform Unit: 12-month warranty covering manufacturing defects (e.g., casting cracks, failure to meet factory machining precision standards); damage caused by human error (e.g., hammering, torch cutting, overloading, or high-temperature welding burns) is excluded.
- Fixture Accessories: Classified as consumables; not covered by the extended warranty.
- Technical Support: Guidance on fixture setup, leveling tutorials, and precision re-verification methods; provision of drawings and 3D STEP models (upon request) for customer fixture simulation.
- Spare Parts Delivery: Wear-prone parts can be packaged and shipped with the main unit or supplied later via separate sea or air freight.
Our 3D welding tables earn consistent positive feedback from fabricators worldwide. One customer building custom trailers for surf lifesaving and floodwater rescue boats highlights that laying out trailer components on the table is effortless with outstanding accuracy.
He is pleased with the well-matched table size and full set of clamps & fixtures, and plans to purchase another complete set. Another fabricator, Ivan, confirms the welding table is superbly manufactured and performs flawlessly; his only comment relates to external shipping and customs fees rather than the table itself.
See why fabricators around the globe trust our D16 3D Welding Table with Five Sided Machined Surfaces for accurate, flexible workpiece fixturing. Contact us to share your welding requirements, we will provide a tailored quotation and full technical details for your workshop.
