D28 3D Welding Fixture Table with 100mm Hole Grid Pitch
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,D/A,L/C,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Grid Pitch:
100 Mm × 100 Mm Orthogonal Hole Grid
Hole Dimension:
Φ28 Mm, H7 Precision Reamed Hole
Machined Surfaces:
5-sided Machining (Top Surface + Four Vertical Sides With Holes)
Table Plate Thickness:
25mm
Side Panel Height:
200 Mm
Available Material:
HT300 Grey Cast Iron / Q355 Structural Steel
Flatness Tolerance:
0.02mm/m
Surface Treatment:
Nitriding
Single Support Leg Load:
900–1000 Kg
Highlight:
3D welding fixture table with 100mm grid
,welding fixture table with hole grid
,D28 welding table with grid pitch
Product Description

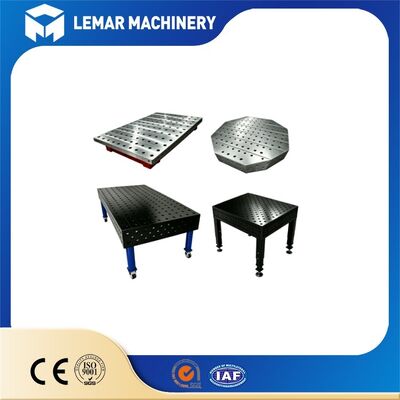

D28 3D Welding Fixture Table with 100mm Hole Grid Pitch
The D28 3D Welding Fixture Table with 100mm Hole Grid Pitch is a universal modular welding fixture system. Equipped with 100mm grid pitch and Φ28mm H7 precision holes on the top and four side faces, it supports 3-dimensional workpiece clamping. With optional nitriding surface treatment and strict stress relief process, it maintains stable precision under heavy welding loads. All D28 standard accessories can be freely combined to quickly build custom fixtures for frames, chassis and structural parts.
Size Chart
| Table Size (L × W) | Plate Thickness | Side Height | Max Static Load |
|---|---|---|---|
| 1000 × 1000 mm | 25mm | 200 mm | 3 ton |
| 1200 × 1000 mm | 25mm | 200 mm | 4 ton |
| 2000 × 1000 mm | 25mm | 200 mm | 6 ton |
| 2400 × 1200 mm | 25mm | 200 mm | 7.5 ton |
| 3000 × 1500 mm | 25mm | 200 mm | 9 ton |
| 4000 × 2000 mm | 25mm | 200 mm | 10 ton |
Principles and Characteristics
- Modular Flexible Fixturing: There is no need to fabricate dedicated welding jigs for each specific workpiece. By utilizing standardized D28 accessories—such as positioning angles, support blocks, quick-action clamps, locating pins, and tensioning bolts—fixtures can be assembled rapidly. Switching between products simply requires reconfiguring the accessories, making the system ideal for high-mix, low-volume production.
- 3D Clamping Capability: While 2D welding tables feature holes only on the top surface, D28 welding tables are equipped with a 100mm grid of D28 holes across all four side walls as well. This allows for workpiece fixation on the sides and in vertical orientations, enabling the clamping of complex 3D structures such as housings, vehicle frames, and machinery chassis.
Selection Differences: D28 (100mm Grid) vs. D16 (50mm Grid)
- D28 / 100mm Welding Table: Heavy-duty fixturing. Features larger hole diameters and highly rigid accessories; suitable for thick plates, large frames, construction machinery, rail transport equipment, and structural steelwork. Offers high load-bearing capacity and efficient positioning for large components due to the wider grid spacing.
- D16 / 50mm Welding Table: Lightweight, precision fixturing. Features smaller holes and a denser grid; suitable for sheet metal and small frames, offering finer adjustment and positioning capabilities.
D28 and D16 accessories are not directly interchangeable.
Supporting Structure
- Standard Fixed Legs: Welded square-tube legs featuring leveling feet for fine-tuning the tabletop's level; load capacity of 900-1000 kg per leg.
- Optional Mobile Casters: Heavy-duty swivel casters with brakes, suitable for repositioning workstations within the workshop; note that caster-equipped versions cannot support full-load heavy-duty welding—heavy loads require the table to rest directly on the floor.
- Modular Expansion: Multiple D28 tabletops can be joined side-by-side using dedicated D28 locking connectors, maintaining a continuous grid pattern; ideal for oversized workpieces or long robotic welding lines.
- Robotic Workstation Integration: Tabletops can be pre-drilled with mounting holes for robot bases, enabling seamless integration with welding robots, positioners, and workpiece rotators.
Our Advantages
| Other Suppliers | WUXI LEMAR |
|---|---|
| Use low quality raw materials, which are prone to rust and have poor flatness. | Using high-quality cast iron (HT300/Q355 steel), nitriding treatment. Not only improves the hardness of desktop, but also makes it more corrosion-resistant and rust-resistant, greatly extending service life. |
Packaging, Logistics, and Delivery
- Export Packaging: Fumigation-free plywood crates; interior features foam padding and timber bracing to prevent impact damage or deformation during sea transit. Large tabletops are crated individually, while accessories are packed in separate smaller boxes.
- Shipping Methods: Sea freight (primary method), air freight, and land transport; for large items, please note container height and weight limits.
- Warranty: Standard 12-month warranty on the tabletop unit; 1-year warranty on accessories and consumable parts; extended warranty options available.
- MOQ: Starts at 1 unit; OEM services supported (customer logo engraving on the tabletop edge).
Troubleshooting Tips
- Stuck locating pins: Clean welding spatter inside holes.
- Poor repeatability: Check table level, support layout and flatness.
- Spatter adhesion: Apply anti-spatter agent and optimize welding parameters.
Cut down your jig manufacturing cost and reduce changeover time with our D28 3D Welding Fixture Table with 100mm Hole Grid Pitch.
Whether you need a single table or a full modular fixture system, please feel free to contact us.
Tell us your working conditions, and we will recommend the most suitable configuration for your welding application.
