Modular 3D Steel D28 Welding Platform for Robotic Welding Automation
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 2040mm*1040mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Verticality:
≤0.1mm/200mm
Customization Capabilities:
Supports Customization/Multiple Units Splicing
Precision:
0.1
Export Port:
Shanghai
Thickness:
25mm
Flatness:
≤0.1mm/1000mm
Working Face:
5-Sided Precision Machining
Production Capacity:
50000PCS/Year
Origin:
Jiangsu Wuxi
Highlight:
Modular 3D steel welding platform
,D28 robotic welding automation table
,3D welding table with steel construction
Product Description

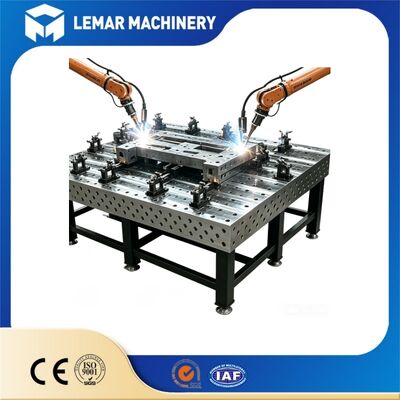

Modular 3D Steel D28 Welding Platform for Robotic Welding Automation
Product Overview
This Modular 3D Steel D28 Welding Platform is purpose-engineered to integrate seamlessly with robotic welding cells for automated metal manufacturing.Featuring a five-sided precision drilled D28 hole grid system, this heavy-duty steel fixture platform delivers repeatable locating references for robot welding arms. The base plate adopts fully stress-relieved steel and precisely controlled gas nitriding treatment to sustain stable flatness under continuous thermal welding impact and heavy clamping force. Standard modular fixture components can be rapidly reconfigured for different workpieces, eliminating costly dedicated robot-specific jigs. Strict export-level quality checks are completed for every unit, making it a reliable fixture foundation for high-volume automated production lines across Europe and America.
Core Advantages
- Robot-Friendly Stable Datum Reference: Rigid flat working surface provides consistent reference points for robotic welding program execution.
- D28 Heavy-Load Dense Locating Grid: 100 mm D28 hole system supports high clamping force for large-size robot-processed assemblies.
- Process-Controlled Nitrided Surface Layer: Restricted thin white compound layer brings outstanding anti-spatter and wear resistance for non-stop automation cycles.
- Eliminate Custom Robot-Dedicated Jigs: Recombinable modular fixtures replace one-off tooling and shorten robot-cell re-commissioning time.
- Multi-Side 3-Dimensional Clamping Ability: Five-face hole layout allows multi-direction fixturing for complex spatial robot-welded components.
- Expandable Platform Splicing Structure: Multiple platforms can be connected to build large working zones for multi-robot collaborative production.
Main Application Scenarios
- Robotic automated welding production lines for metal structural components
- Robot-integrated fabrication workshops for custom metal assemblies
- Batch automated welding of chassis and frame parts
- Automated fixture positioning for robot welding job shops
- Low-volume high-precision robotic welding prototype projects
- Manufacturing cells combining robot welding and manual auxiliary processing
Customer Feedback
Frequently Asked Questions
Q1:Can this D28 flexible welding table work with different brands of robotic welding arms?
Yes. It adopts standard D28 modular hole system. As long as your robot arm has accessible working range covering the table surface, normal collaborative operation can be realized. No special adaptation transformation for the robot body is needed.
Yes. It adopts standard D28 modular hole system. As long as your robot arm has accessible working range covering the table surface, normal collaborative operation can be realized. No special adaptation transformation for the robot body is needed.
Q2:What should I do if welding spatters accumulate heavily on the table surface during robot continuous running?
If you choose the nitrided surface version, spatter can be cleared conveniently without damaging the base material. Regular surface cleaning is suggested to keep hole precision and clamping smoothness.
If you choose the nitrided surface version, spatter can be cleared conveniently without damaging the base material. Regular surface cleaning is suggested to keep hole precision and clamping smoothness.
Q3:Does the table flatness drop quickly under long-time robotic cyclic pressure?
No. The whole table body is made of thick Q355 steel and processed by stress-relief treatment. Reasonable load usage will not bring fast flatness deterioration for automated production. Please follow our load limit suggestion.
No. The whole table body is made of thick Q355 steel and processed by stress-relief treatment. Reasonable load usage will not bring fast flatness deterioration for automated production. Please follow our load limit suggestion.
Q4:Can I expand the working area by connecting multiple D28 tables for large-size robot welding workpieces?
Multiple tables can be spliced together to expand working dimensions. Ensure joint flatness during installation, so your robotic welding arm can move smoothly across connected table surfaces.
Multiple tables can be spliced together to expand working dimensions. Ensure joint flatness during installation, so your robotic welding arm can move smoothly across connected table surfaces.
Q:Is on-site technical guidance available when matching this table with my existing robotic welding station?
We provide detailed assembly and level-adjustment documents. For overseas customers, we offer remote technical support to guide your engineers during table installation and robot-table matching debugging.
We provide detailed assembly and level-adjustment documents. For overseas customers, we offer remote technical support to guide your engineers during table installation and robot-table matching debugging.
Contact Information
Provide your robot model parameters, maximum workpiece dimension and production cycle requirements to our sales team. Our engineering team will work out matched platform configuration and supporting fixture scheme for your robotic welding automation project. Get in touch today to optimize your automated metal-processing production efficiency.
