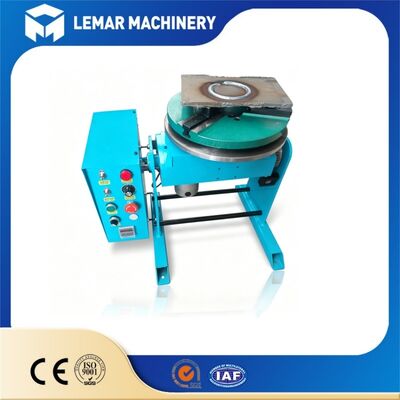

200kg Tilting Welding Positioner for MIG TIG SAW Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 75.00cm * 66.00cm *74.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
200kg tilting welding positioner
,MIG TIG SAW welding positioner
,rotary welding positioner with tilt
Our BWJ‑200 welding positioner is a compact tilting rotary worktable designed for manual and semi‑automatic welding applications. It features 0‑90° tilting and 360° continuous rotation capabilities, positioning workpieces in ideal flat welding positions. This significantly reduces labor intensity and improves weld quality for MIG, TIG, and SAW jobs. The heavy‑duty welded base ensures stable performance under 200kg horizontal payload, making it suitable for job shops, metal fabrication facilities, and mechanical maintenance workshops.
- Rated horizontal load: 200kg, vertical tilting load: 100kg
- 0‑90° tilting angle, 360° continuous rotation
- Frequency stepless speed regulation for stable, low‑noise operation
- Dual operation mode: foot pedal and control box
- Heavy welded steel frame with anti‑deformation structure
- Compatible with MIG, TIG, and SAW welding power sources
- Multiple voltage options with CE certification available
- Customization support for chuck, torch holder, and control system
| Item | Specification |
|---|---|
| Model | BWJ‑200 |
| Horizontal Load Capacity | 200kg |
| Tilted Max Load | 100kg |
| Table Diameter | 400mm |
| Rotation Speed | 0.2‑2 rpm stepless adjustable |
| Tilting Range | 0‑90° |
| Drive Mode | Gear motor drive |
| Control Method | Control box + foot pedal |
| Standard Voltage | 220V 1Phase |
Suitable for circular welding of small pipes, pipe elbows, flanges, shaft parts, small tanks, and metal hardware fittings. Commonly applied in:
- Hardware processing factories
- Mechanical maintenance workshops
- Pipeline manufacturing
- Small vessel fabrication
- Automotive accessory processing
- 3‑jaw / 4‑jaw self‑centering chuck
- Pneumatic / manual welding torch rack
- PLC touch‑screen control system
- Timing & welding‑machine linkage function
- Special voltage for South America, Southeast Asia, Europe markets
Before Use: Confirm positioner sits on flat, solid ground. Check all bolts are tightened and power voltage matches nameplate specifications.
Workpiece Placement: Fix workpiece firmly on faceplate. Keep gravity center within supporting range to prevent tipping.
Speed & Tilt Adjustment: Start with low rotation speed. Adjust tilting angle to achieve flat welding position. Do not switch forward/reverse suddenly during operation.
Safety Reminder: Keep away from rotating workpiece. Press emergency stop and cut power immediately if abnormal noise or vibration occurs.
A: It is compatible with MIG, TIG, SAW and other common manual & semi‑auto welding machines.
A: Yes, 3‑jaw or 4‑jaw chuck is an optional extra accessory. Please advise your clamping range requirements.
A: Custom voltage is available. Please provide your local voltage and frequency specifications.
A: 12‑month warranty against manufacturing defects, excluding quick‑wear spare parts.
A: Yes, PLC touch‑screen control panel is an optional upgrade for automatic cycle and angle setting functionality.
