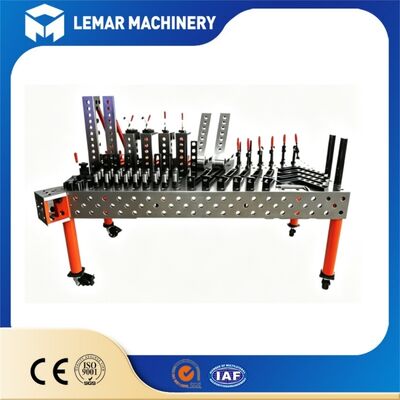

Robust D28 3D Welding Table for Large‑Part Metal Assembly Works
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000*2000*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 3D welding table for metal assembly
,large-part welding table with robust design
,3D welding table for industrial works
This robust D28 3D welding table is purpose‑built for large‑part metal assembly and heavy‑duty welding tasks. Adopting stress‑relieved high‑strength steel substrate and mature gas nitriding treatment, this 3D flexible platform eliminates the need for time‑consuming custom‑built jigs.
The standardized D28 hole grid delivers full interoperability with global standard clamping kits. Strict export‑grade quality inspection is implemented throughout production to guarantee long‑term flatness and load‑bearing performance. Widely trusted by overseas fabricators, it fits both manual workstation setup and heavy robotic welding cells for oversized workpieces.
Detailed technical parameters and dimensional specifications available upon request.
Engineered to handle large‑size metal assemblies. The expanded working surface and high load capacity hold bulky components stable during clamping and welding, avoiding workpiece offset that occurs on small‑sized platforms.
The gas nitriding process strictly restricts the thickness of brittle white compound layer. A total diffusion depth of 0.3 mm delivers outstanding wear resistance and anti‑spatter performance, outperforming most competitors with only 0.1 mm nitriding depth.
Raw material undergoes complete stress relief before machining. Internal residual stress is removed to prevent long‑term warping even under continuous heavy clamping and thermal welding impact.
100‑mm D28 hole layout matches international industrial standards. Users can mix and match positioning blocks, angle supports and quick clamps from different brands without extra modification or re‑drilling.
Replace multiple dedicated custom jigs with reusable modular accessories. Switching between different large‑part projects takes much less setup time, cutting your fixture procurement and maintenance expenditure significantly.
Solid datum plane provides reliable reference points for robot welding arms. It works seamlessly with welding positioners for automated large‑part production, supporting both small‑batch trial production and high‑volume manufacturing.
- Heavy machinery frame assembly
- Construction equipment component welding
- Truck and trailer part fabrication
- Large steel frame processing
- Robotic automated welding workshops
- Heavy metal structural component manufacturing
We apply full stress relief for base steel plates. Under proper operation, the table maintains stable flatness. Overload impact or improper local striking shall be avoided to protect the working surface.
Yes. We supply the table body alone, or separate accessories such as support feet, quick clamps and positioning angles. You can select items according to your existing workshop stock.
The nitrided surface gains high hardness. It reduces welding spatter adhesion and slows down surface abrasion caused by frequent fixture movement. The thin controlled white layer avoids brittle peeling risks.
Custom dimensions are supported. Please share your maximum workpiece size and workshop space constraints. Our technical team will work out a feasible drawing and quotation for you.
Our products are made for European and American export markets. Relevant supporting technical documents can be supplied upon your formal request for customs and project review.
We accept T/T as primary payment option. EXW FOB CIF and DDP solutions are available to match your target destination and logistics requirements.
Share your detailed workpiece dimensions, expected load requirement and workshop conditions with our sales team. Our technical staff will offer targeted configuration suggestions and accurate quotation for your large‑part assembly projects. Reach out right now to boost your welding fixture efficiency.
