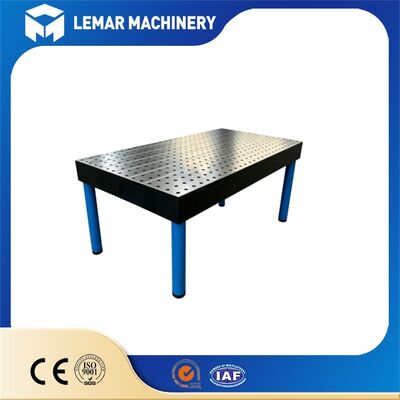

D28 Welding Table with Modular Fixture Kit for Custom Jigs
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table modular fixture kit
,3D welding table custom jigs
,welding table with fixture kit
Our D28 modular welding table system enables fast assembly of custom welding jigs without custom machining. Featuring 100 mm D28 hole grid, precision‑nitrided table surface and comprehensive fixture kit, it suits manual welding workshops as well as automated robot welding stations for multi‑variant part production. Improve setup efficiency, cut fixture costs and secure reliable dimensional repeatability for all your fabrication projects.
| Item | Specification |
|---|---|
| System Hole Diameter | Φ28 mm H7, hole tolerance ±0.05 mm |
| Grid Pitch | 100 × 100 mm, millimeter‑scale markings on four table edges |
| Tabletop Material | ① Q345/Q355 low‑alloy steel；② HT300 grey cast iron |
| Tabletop Thickness | 25 mm with bottom reinforcing ribs; 5‑sided machining (D28 holes on top surface & four side faces) |
| Flatness | Standard grade ≤0.1 mm/1000 mm; Precision Grade‑0 ≤0.05 mm/1000 mm |
| Surface Treatment | Nitriding treatment, hardness HV550‑900, wear‑resistant & anti‑spatter |
| Load Capacity | Single leg: 900‑1000 kg; Overall static load: 3‑10 tons |
| Available Standard Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm; Expandable via table splicing |
- Non-standard table size customization: Any length and width, standard thickness 25mm, thickened 28-30mm for extreme heavy loads.
- Precision grade selection: Standard grade / Robot grade 0.
- Nitriding hardness customization: Standard HV550-900.
- Outrigger customization: Fixed height, adjustable height, casters, heavy-duty floor frame base.
- Fixture package customization: Not limited to 32/55/79/105 pieces; fixture combinations can be selected according to the customer's workpiece list, avoiding the purchase of useless accessories and reducing customer costs.
- Additional accessory package: Copper bushing kit, complete set of dust plugs, fixture storage trolley, spare quick-lock pin spare parts package.
- Inspection documents: Factory dimensional inspection report, hardness report; supports third-party SGS/BV inspection.
Assemble 2D & 3D custom welding jigs within minutes with modular fixture kit. No custom‑machined dedicated tooling required, shorten jig lead‑time and reduce tooling cost.
Φ28 mm H7 precision holes with ±0.05 mm tolerance, 100×100 mm grid. Five‑sided machined D28 holes support multi‑angle clamping, guarantee repeat positioning accuracy for manual & robotic welding.
Full nitriding on table surface and inner hole walls, hardness HV550‑900. Welding spatter is easy to remove. Hole walls resist wear from frequent pin insertion and removal for longer service life.
23‑25 mm thick tabletop with bottom reinforcing ribs. Complete stress‑relief treatment eliminates internal stress. Two material options: impact‑resistant Q345/Q355 steel, vibration‑damping HT300 grey cast iron.
700‑1000 kg load per single leg, total static load 3‑10 tons. Multiple standard sizes available. Tables can be precisely spliced for oversized workpieces, perfect for high‑mix low‑volume workshops.
Suitable for frames, chassis, structural steel and sheet metal fabrication. Works for both manual welding and robotic welding cells, one table for multiple workpiece production.
| Lemar welding table to UK | Lemar welding table to Finland |
Cut your tooling cost and improve welding efficiency with the D28 Welding Table with Modular Fixture Kit for Custom Jigs. From table material selection to fixture package configuration, we can customize the complete set according to your production conditions. Please do not hesitate to reach out to us, we will reply with detailed proposal within working hours.
