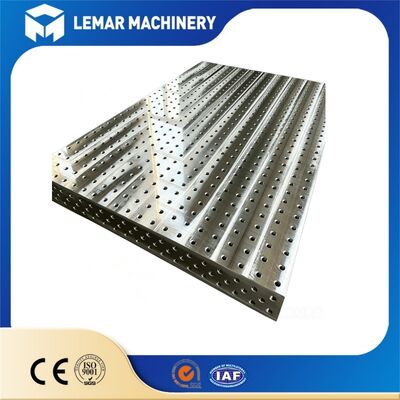

Sturdy D28 3D Fixture Welding Table For Professional Metal Fabrication
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Condition:
New
Flatness:
≤0.1mm/1000mm
Diameter:
28mm
Thickness:
25mm
Working Face:
5-Sided Precision Machining
Verticality:
≤0.1mm/200mm
Trademark:
Lemar
HS Code:
732690
Highlight:
Sturdy D28 3D welding table
,Professional metal fabrication table
,3D fixture welding table
Product Description
Sturdy D28 3D Fixture Welding Table For Professional Metal Fabrication
Product Overview
Flexible D28 Modular Precision Welding Locating Work Table
Built for high-demand professional metal fabrication workflows, the Sturdy D28 3D Fixture Welding Table delivers reliable fixture positioning for complex metal assembly and welding jobs. Its standardized D28 hole grid enables fast re-arrangement of clamps, supports and locators without custom machining. The rigid platform absorbs welding vibration and thermal stress to keep consistent fixture alignment across repeated production cycles. Designed for busy professional fabrication shops, this 3D fixture table cuts fixture setup time and improves repeatability for both prototype builds and batch component manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | D28 3D Welding Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Product Advantages
- Grid-Driven Fast Fixture Reconfiguration
Uniform D28 hole grid covers the full working plane. Operators can relocate fixtures at any grid position within minutes. There is no need for on-site cutting or drilling to hold different workpieces, greatly shortening preparation time between production batches. - High Vibration Resistance During Welding Operations
Thick alloy main body dampens vibration generated by welding and grinding. Vibration will not shift pre-aligned fixtures. Stable support preserves assembly accuracy even during long continuous working shifts. - Height Adjustable Support For Flexible Workstation Layout
Telescopic metal support legs allow fine tuning of overall table height. Workshops adjust elevation to match workpiece size and operator working posture. It adapts well for standing operation or cooperation with lifting equipment. - Consistent Dimensional Repeatability For Batch Production
CNC machined hole positions keep tight tolerance for every grid point. Identical fixture settings can be reproduced for successive workpieces. This feature lowers defective rate for mass metal fabrication orders. - Broad Compatibility With Global D28 Standard Accessories
All mainstream D28 series fixture parts fit seamlessly on this table. Shops can reuse existing D28 clamps, locating pins and angle brackets. Extra purchasing of special adaptors is completely avoided. - Solid Structure For Long-Term Shop-Floor Service Life
Reinforced internal rib structure improves anti-deformation performance under heavy even load. Proper daily usage prevents permanent warping. The table maintains its working performance after years of heavy-duty professional use.
Product Applications
- Complex metal frame assembly for machinery industry
- Batch fabrication of structural metal components
- Custom metal prototype building for engineering projects
- Multi-angle fixture setup for welded cabinet production
- Heavy metal part fitting and pre-assembly work
- High-precision subcontract metal welding assignments
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
Q1: Can I expand this D28 table by adding extra table modules later?
A1: Yes. Its modular expandable design supports connection of additional modules to enlarge your working platform as business grows.
Q2: Does this table fit D28 clamps purchased from other overseas brands?
A2: Absolutely. It follows international D28 hole standards and works with most mainstream D28 fixture accessories from global suppliers.
Q3: Is custom table size acceptable for special workshop space requirements?
A3: Custom dimensions are available. Send your required length width and height to our sales team for technical review and quotation.
Q4: How do you pack the table for long distance sea export shipment?
A4: The welding table is secured inside export‑standard fumigation‑free wooden crates to avoid collision damage during ocean transit.
Q5: What payment options are available for bulk orders of this D28 welding table?
A5: We support FOB trade terms. Deposit plus balance before shipment is available for bulk orders. Other solutions can be discussed based on order volume.
Q6: Will you share production progress after order confirmation?
A6: Our sales team will update production status regularly. Finished product photos and packing information will be sent before shipment arrangement.
Contact Information
If you look for a dependable D28 3D fixture platform to upgrade your professional metal fabrication capacity, please reach out to our engineering team. Provide information including target size, typical workpiece weight and your daily production type. Our specialists will sort out suitable configuration for your shop. Submit your inquiry now and obtain full technical documents and competitive quotation.
