Industrial D28 Modular Fixture Welding Table For Accurate Metal Working
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Condition:
New
Flatness:
≤0.1mm/1000mm
Diameter:
28mm
Thickness:
25mm
Working Face:
5-Sided Precision Machining
Verticality:
≤0.1mm/200mm
Trademark:
Lemar
HS Code:
732690
Highlight:
Industrial D28 welding table
,Modular fixture welding table
,Accurate metal working table
Product Description

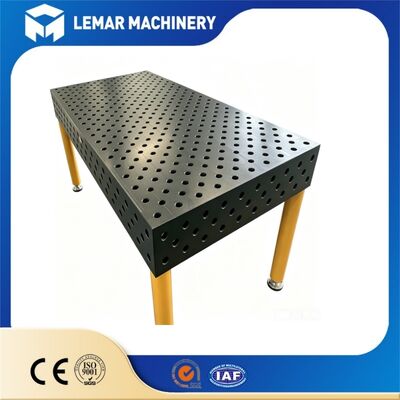

Industrial D28 Modular Fixture Welding Table For Accurate Metal Working
Product Overview
Our Industrial D28 Modular Fixture Welding Table delivers stable positioning support for high-precision metal working tasks. Built with standardized D28 hole grid layout, this modular fixture platform allows fast assembly of various clamping accessories without complex modification. It is engineered to withstand long-hour continuous operation in busy fabrication workshops. Every hole maintains consistent dimensional tolerance to guarantee repeatable fixture setup for batch welding jobs. This welding table simplifies fixture configuration and cuts down preparation time for diverse metal processing assignments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | D28 Large 3D Welding Fixture Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Product Advantages
- Consistent D28 Grid Positioning
Uniform D28 hole grid keeps fixture alignment stable across repeated setups. Operators can mount clamps, supports and locators at any grid point, removing extra drilling or cutting work on site. It secures reliable positioning outcome for different workpiece sizes. - Flexible Modular Combination Design
Modular structure enables quick reconfiguration to match changing production demands. Multiple table sections can connect together for extra-large workpieces. Shops adjust fixture layouts freely when switching between small-batch and mass-production orders. - Superior Static Load Performance
High-strength alloy base absorbs vibration generated during welding and grinding. Even weight distribution avoids local deformation under heavy workpieces. Long-term heavy usage will not easily damage the overall table geometry. - Time-Saving Workflow Optimization
Standardized accessory interface shortens fixture assembling cycle greatly. Workers spend less time on measuring and calibration before welding. Overall workshop throughput improves with fewer setup interruptions between tasks. - Reliable Surface Dimensional Stability
Precision milling process controls surface flatness within tight tolerance. Working face resists thermal deformation from welding heat radiation. Consistent flatness stays available after thousands of production cycles. - Wide Compatibility With Standard Accessories
All D28 series clamps, locating pins and support blocks fit directly onto this table. Buyers can expand tool sets gradually without purchasing special adaptors. Existing D28 workshop hardware can be fully reused.
Industry Applications
| Industry Segment | Typical Workpieces |
|---|---|
| Structural Steel Fabrication | Building columns, roof trusses, bridge girders, transmission towers |
| Heavy Machinery Manufacturing | Excavator arms, bulldozer frames, press machine beds, crane components |
| Shipbuilding and Offshore | Deck frames, pipe supports, hatch coamings, subsea structures |
| Mining and Earthmoving Equipment | Crusher frames, conveyor sections, bucket components, drill rig bases |
| Railway and Transportation | Bogie frames, coupler pockets, railcar structural assemblies |
| Robotics and Automation | Robot base plates, end-of-arm tooling fixtures, test stands |
| Energy and Power Generation | Wind turbine tower sections, generator bases, transformer tanks |
| Agricultural Machinery | Tractor chassis, harvester frames, implement hitches |
| General Job Shops and Repair Facilities | Custom fabrications, equipment repairs, prototype frames |
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
1. Can I extend this D28 welding table by joining several units together?
Yes, multiple single tables can be connected side-by-side to create larger working areas for oversized workpieces. Connection accessories are offered as optional parts.
2. What maximum load can this D28 modular fixture table handle safely?
Its evenly distributed static load reaches 3500 kg. Concentrated point load shall be avoided to prevent local surface distortion.
3. Is custom dimension acceptable for this welding fixture platform?
Custom length, width and height are supported. Send your target dimension and typical workpiece weight for our technical evaluation.
4. Do I need special tools to install D28 clamps onto the table holes?
Standard D28 locating pins and manual clamps can be mounted with regular hand tools. No dedicated professional installation equipment is necessary.
5. How to maintain surface flatness for long-term daily operation?
Keep table surface clean from welding spatter and metal chips. Avoid direct heavy impact onto hole zones. Regular flatness inspection is recommended for high-accuracy jobs.
6. Are spare fixture accessories available for separate ordering?
Full sets of D28 compatible clamps, positioning pins and support components can be ordered individually to expand your workstation.
Contact Information
If you are looking for a dependable modular D28 welding solution to boost your metal-working efficiency, get in touch with our engineering team today. Share your workpiece dimension, typical load requirement and production scenarios. Our specialists will work out suitable configuration suggestions for your workshop project. Submit your inquiry now to obtain detailed quotation and technical guidance.
