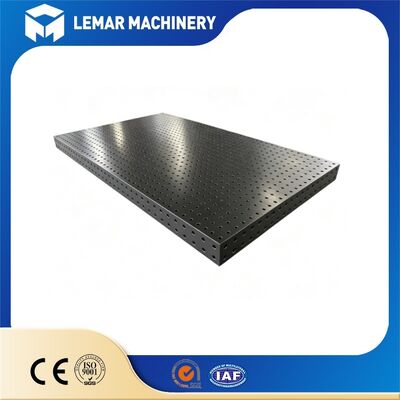

D16 Welding Table with Grid System for Accurate Joint Alignment
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 welding table with grid
,welding fixture table for alignment
,grid system welding table
Achieve precise weld joint fit-up with our D16 modular welding table. Featuring a high-accuracy 50 mm grid hole system across the working faces, it allows rapid reconfiguration of fixtures for small-to-medium assemblies, sheet-metal and cobot welding. Skip expensive custom jigs, reduce rework from misaligned joints and keep consistent welding quality batch after batch. Choose from standard or zero-grade flatness, steel or HT300 cast-iron body to fit your workshop production.
| Item | D16 Welding Table | D28 Heavy-Duty Welding Table |
|---|---|---|
| Hole Diameter | 16 mm | 28 mm |
| Grid Pitch | 50 × 50 mm (Denser hole pattern) | 100 × 100 mm |
| Positioning Advantages | More positioning points. Ideal for precision small-size parts, sheet metal, prototype builds and collaborative robot welding. | High clamping force. Suitable for heavy-duty steel structures and thick-plate large workpieces. |
| Weight & Cost | Lighter weight, lower cost | Heavy-weight structure, higher load-bearing capacity |
| Typical Applications | Sheet-metal components, machine frames, medical equipment, 3C accessories, laboratories & small workshops | Construction machinery, heavy-duty vehicle frames, thick-plate steel welding |
- Precise Joint Alignment: A 50mm dense grid provides high-precision reference points in both the X and Y directions. Workpieces are placed on the table, and locating pins and stops are engaged in the grid holes to directly lock the part in position, ensuring consistent weld gaps and butt joint dimensions, reducing welding misalignment, and suitable for batch, prototyping, and small-batch, multi-variety production.
- Modular Rapid Fixture Assembly: No need to manufacture dedicated welding fixtures; when changing products, simply move the parts to reconfigure the fixture, reducing fixture preparation time from several hours to just a few minutes, lowering fixture manufacturing costs.
- 3D Stereoscopic Positioning: Not only the top surface, but also all four sides have D16 grid holes, enabling Z-axis positioning in the height direction, allowing for spatial angle workpiece clamping. Frames, sheet metal, and irregularly shaped parts can all be fixed.
Our D16 welding tables comply with Machinery Directive 2006/42/EC for EU market access. Risk assessment and technical documentation are completed according to EN ISO 12100 machinery safety standards. EC Declaration of Conformity is available upon request for customs clearance and local inspection. All safety markings are applied on the table body. ISO 9001 quality-system certification is also available.
Should you have any questions about our D16 Welding Table with Grid System for Accurate Joint Alignment, such as size customization, CE documentation, fixture compatibility or lead time, please do not hesitate to contact our sales team. We are ready to assist you to find the optimal welding workstation solution for your production.
