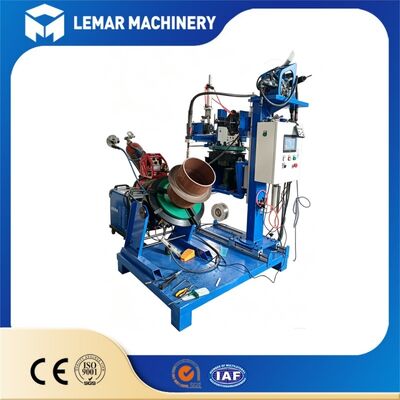

600kg Welding Positioner 600mm Table 0‑90° Tilting 360° Rotary Turntable
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-600
Document
Model NO.:
BWJ-600
Rotaion Speed:
0.1-1rpm
Max Eccentricity Distance:
150mm
Tilting Angle:
0-135°
Horizontal Loading Weight:
600kg
Vertical Loading Weight:
300kg
Tilting Motor:
Manual
Worktable Diameter:
500mm
Rotation Motor:
3.75W
Highlight:
600kg welding positioner turntable
,600mm rotary welding positioner
,0-90° tilting welding turntable
Product Description
600kg Welding Positioner 600mm Table 0‑90° Tilting 360° Rotary Turntable
This 600kg welding positioner is a compact and efficient auxiliary welding device. It features 360° continuous rotation and 0-90° electric tilting, enabling optimal workpiece positioning to avoid overhead welding and improve welding quality and efficiency.
Built with a sturdy welded frame and variable-frequency speed control, the machine runs smoothly with stable torque. Equipped with a T-slot turntable for easy clamping, it comes with a standard hand controller and optional foot pedal, 3-jaw chuck and through-hole turntable.
Suitable for flanges, pipes, elbows and small vessels, compatible with MIG, TIG and arc welding. Customizable voltage and turntable size to fit different working conditions.
Core Advantages
- 600kg rated load capacity, heavy‑duty welded frame for stable bearing
- 0‑90° electric tilting plus 360° rotary turntable, flexible workpiece angle adjustment
- Inverter stepless speed regulation, wide speed range, stable rotation without shake
- T‑slot turntable for easy fixture and workpiece installation
- Multiple operation modes: hand control box, optional foot pedal for convenient operation
- Self‑locking tilting mechanism, emergency‑stop and overload protection for safe operation
- Optional three‑jaw chuck, through‑hole turntable to fit pipe welding work
- Support customization on voltage, turntable dimension and auxiliary accessories
Technical Parameters
| Item | Specification |
|---|---|
| Model | 600kg Welding Positioner |
| Rated Load Capacity | 600kg |
| Tilting Angle | 0°-90° Electric Tilting |
| Turntable Rotation | 360° Continuous Rotation |
| Rotation Speed | 0.1-1.1rpm, Inverter Stepless Adjustable |
| Turntable Diameter | 1000mm |
| Standard Operation Mode | Hand Control Box |
| Optional Accessories | Foot Pedal, 3-Jaw Chuck, Through-hole Turntable |
| Working Voltage | 380V 3Phase 50Hz (Customizable) |
Application Scenarios
- Circumferential seam welding for flanges, elbows and various pipe fittings in metal workshops
- Welding and assembly of medium‑sized pressure vessels and cylindrical tank components
- Medium‑load circular workpiece processing for plumbing, hardware and machinery manufacturing
- Used as standalone equipment for manual automatic mixed welding operation
- Support system integration to cooperate with robotic welding equipment
Matching Supporting Equipment
- The 600kg welding turntable can install three‑jaw or four‑jaw chuck for clamping pipe and round parts
- It can be fitted with torch holder to fix welding gun for semi‑automatic circular seam welding
- Connect with welding manipulator to build complete automatic welding workstation
- Reserved external signal interface supports linkage with welding power source for synchronous working
- Compatible with carbon steel, alloy steel and stainless‑steel workpieces for diversified welding solutions
Frequently Asked Questions
Q1: Can this 600kg positioner connect with welding robot?
Yes, external control interface is reserved, it can work with welding robot for automatic welding.
Q2: What welding processes are applicable?
Fit for MIG, MAG, TIG and SAW welding for carbon steel, alloy steel and stainless steel workpieces.
Q3: Can you change the worktable size for us?
Yes, table diameter, T‑slot and related structure can be customized based on your workpieces.
Q4: What about your warranty policy?
12‑month warranty for whole machine excluding wearing parts, lifelong online technical support.
Q5: What is the shipping packing?
Standard export plywood case, safe for long‑distance sea freight transportation.
