Heavy Duty Welding Manipulator 2000mm Column And Boom For Arc Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 600.00cm * 320.00cm * 620.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
HJ2020
Document
Effective Lifting Stroke:
2000 MmApplicable
Effective Boom Extension Stroke:
2000 Mm
Max. Load Of Boom End:
50 Kg
Boom Travelling Speed:
0.1‑1 M/min, VFD Stepless Adjustable
Column Lifting Speed:
0.2‑0.8 M/min
Welding Process:
SAW / MIG / MAG / TIG Welding
Guide Rail:
High Precision Linear Guide / Hard Rail
Control Mode:
Local Button Control, Optional Wireless Remote Controller
Highlight:
Heavy Duty Welding Manipulator 2000mm
,Arc Welding Column And Boom
,Welding Fixture Table with Boom
Product Description

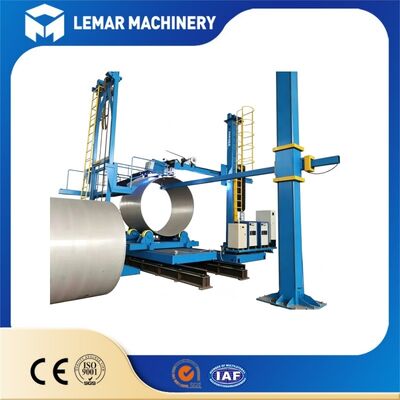

Heavy Duty Welding Manipulator 2000mm Column And Boom For Arc Welding
Product Introduction
This 2m×2m welding manipulator (column and boom) is automatic welding auxiliary equipment for tank, vessel and pipe fabrication. With an effective lifting stroke of 2000mm and boom extension stroke of 2000mm, it supports submerged‑arc welding, MIG and TIG welding processes. When cooperated with welding rotator or welding positioner, it completes longitudinal seam and circumferential seam automatic welding for cylindrical workpieces. Equipped with VFD stepless speed regulation and stable transmission system, it ensures smooth travelling and accurate gun positioning. Widely applied in pressure vessel, chemical equipment, pipeline and steel structure manufacturing workshops.
Our Advantages
- 2×2m Standard Stroke: 2000mm lifting & 2000mm boom travel, perfectly matching medium‑size tank and pipe welding requirements.
- Stable Mechanical Structure: Heavy‑duty column‑boom frame with rigid guide rail ensures low deformation under welding head load.
- VFD Stepless Speed Control: Adjustable boom moving speed with stable running and easy parameter setting on control cabinet.
- Multi‑process Compatibility: Compatible with SAW, MIG, MAG, TIG welding, with optional flux recovery device installation.
- Good System Compatibility: Seamlessly connects with welding rotator/positioner to build full‑auto welding workstation.
- Simple Operation System: Control box with manual buttons and optional wireless remote controller for convenient field operation.
Technical Specifications
| Item | Specification |
|---|---|
| Model | WZM‑2020 |
| Effective Lifting Stroke | 2000 mm |
| Effective Boom Extension Stroke | 2000 mm |
| Max. Load of Boom End | 50 kg |
| Boom Travelling Speed | 0.1‑1 m/min, VFD stepless adjustable |
| Column Lifting Speed | 0.2‑0.8 m/min |
| Column Structure | Heavy‑duty box‑type steel structure |
| Guide Rail | High precision linear guide / hard rail |
| Control Mode | Local button control, optional wireless remote controller |
| Applicable Welding Process | SAW / MIG / MAG / TIG welding |
| Optional Accessory | Welding oscillator, flux recovery unit, motorized moving base trolley |
| Power Supply | 380V 50Hz 3Ph (can be customized) |
| Total Installed Power | ≈4.5 KW |
Application Scope
Mainly used for longitudinal seam and circumferential seam automatic welding of cylinders and tanks. Widely applied in pressure vessel, chemical tank, oil‑gas pipeline, boiler, wind power and general steel structure manufacturing workshops. Suitable for SAW, MIG, MAG and TIG welding production.
Optional Configuration
- Wireless remote controller for convenient on‑site operation
- Welding oscillator for wider weld seam weaving welding
- Flux recovery and recycling device for submerged arc welding
- Motorized moving base trolley for horizontal whole‑machine shifting
- Welding camera monitoring system for remote welding observation
- Custom‑made different voltage power supply for various countries
Frequently Asked Questions
What is the effective stroke of this manipulator?
Lifting stroke 2000mm, boom extension stroke 2000mm.
Which welding processes can it support?
Support submerged‑arc welding, MIG, MAG and TIG welding.
Can it work together with welding rotator?
Yes, matched with welding rotator or positioner for longitudinal & circumferential seam welding.
Is the travelling speed adjustable?
Adopt VFD stepless speed regulation for boom moving and column lifting.
Do you provide customized version?
Longer stroke, motorized base trolley, welding oscillator are available as optional items.
What documents can you offer before shipment?
Provide operation manual, test report and related export documents.
After Sales Service
- Warranty: 12‑month warranty for core electric and mechanical components against manufacturing defects.
- Response Time: Prompt online reply for technical inquiries, priority handling for breakdown issues.
- Remote Support: Remote video guidance for parameter setting, troubleshooting and commissioning.
- Preventive Maintenance: Supply maintenance checklist for regular inspection to prolong machine service life.
- Training: Provide online training for equipment operation, adjustment and daily maintenance.
- Spare Parts: Original spare parts available at factory cost with reliable global delivery.
