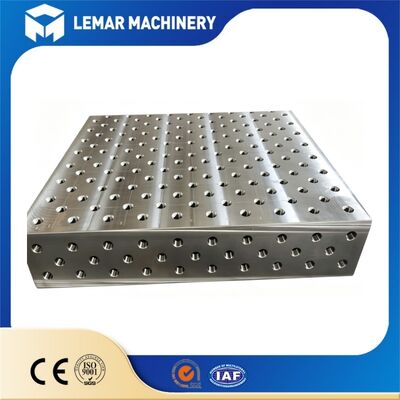

Industrial D28 Modular Welding Table for Complex Component Welding Work

Engineered for complex multi‑component welding and assembly tasks, this Industrial D28 Modular Welding Table delivers high repeatable accuracy for challenging fabrication jobs. The standardized D28 hole grid runs across tabletop and side planes, supporting multi‑direction clamping for irregular and multi‑angled workpieces. Built with stress‑relieved heavy steel frame, this modular platform minimizes fixture rebuilding work when switching between different complex parts. Every table undergoes full dimensional inspection to guarantee hole‑position consistency and stable flatness. It helps fabricators cut down tedious manual adjustment and improve output quality for intricate component welding projects.

• Multi‑Direction Clamping for Irregular Parts
  Holes distributed on top and side surfaces allow clamping from horizontal, vertical and tilted orientations. Operators can firmly fix odd‑shaped complex components without additional custom auxiliary supports.
  Stress‑Relieved Frame for Long‑Term Stability
  The whole frame goes through stress‑relief treatment after welding. Internal welding stress is fully eliminated to avoid slow deformation during long‑time processing of heavy complex workpieces.
  High Interchangeability of Modular Fixtures
  Precision machined D28 hole system ensures perfect compatibility with standard modular accessories. Operators can reorganize fixture layouts rapidly to match different complex component geometries.
  Hard Nitrided Surface Resists Welding Damage
  Hardened nitrided layer repels welding spatter and resists scratch impact. Even under long‑time complex‑part welding cycles, the table keeps stable surface condition and reduces frequent grinding maintenance.
  Expandable Table Combination Solution
  Multiple individual tables can be linked by dedicated connection kits. Extended working area handles extra‑large complex assemblies which cannot fit on single welding table units.
  Strict Dimensional Consistency Control
  Each finished table passes hole spacing, verticality and flatness measurement. Stable precision avoids accumulated assembly errors when assembling multi‑part complex workpieces.

‑ Multi‑angle mechanical component assembly and welding
‑ Irregular steel frame complex structure fabrication
‑ Heavy equipment accessory mixed‑batch production
‑ Special vehicle component welding and positioning
‑ Custom metal complex prototype manufacturing
‑ Job‑shop diverse intricate component processing tasks

• What types of projects can I use this D28 welding table for?
  This table is designed for all types of metal fabrication work, including MIG, TIG, and stick welding, assembly and fitting, frame squaring, pipe layout, prototype development, and quality inspection. Its flexible 3D design works equally well for small parts and large structural assemblies.
• How quickly can I change from one project setup to another?
  Most standard setups can be reconfigured in 15 to 30 minutes, depending on complexity. This is significantly faster than building custom jigs or reworking a traditional fixed table, which can take hours or even days for new projects.
• Do I need to buy all new fixtures, or can I use my existing tools?
  The D28 hole pattern is an industry standard, so many of your existing clamps and positioning tools may already be compatible. We also offer a full range of D28 fixturing accessories sold separately, allowing you to build out your toolkit gradually as needed.
• Can multiple tables be connected together for larger workpieces?
  Yes, our D28 tables are designed with matching grid alignment across all units. You can join two or more tables side by side or end to end to create a larger continuous work surface, and the grid pattern will remain consistent across the entire combined surface.
• What level of flatness can I expect from the table?
  Each table is precision machined to a flatness tolerance of ±0.05 mm per square meter under standard load conditions. This level of accuracy is sufficient for the vast majority of metal fabrication and welding applications.
• Is assembly required when the table arrives?
  The table top ships as a single pre-machined unit. You will need to attach the support legs and level the table using the adjustable feet, which typically takes one to two hours with two people. We provide detailed assembly instructions and can offer remote guidance if needed.
