Flexible D16 Modular Fixture Table for Multi-Style Welding Operations
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Standard Hole Diameter:
Φ16.065‑16.149 mm (H7 Tolerance)
Grid Pitch:
50 mm × 50 mm
Tolerance:
±0.05 mm
Table Top Thickness:
12mm
Flatness:
0.02mm/m
Material:
Q355 High‑strength Steel (Nitrided Treatment) Or HT300 Cast Iron
Available Dimensions:
1000×800 ~ 2400×1200 mm
Surface Roughness:
Ra 1.6‑3.2
HS Code:
732690/851590
Highlight:
D16 modular welding table
,flexible welding fixture table
,multi-style welding operations table
Product Description

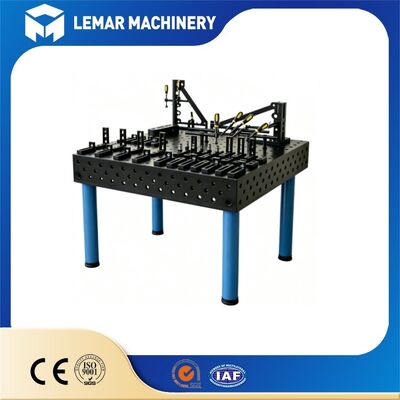

Flexible D16 Modular Fixture Table for Multi-Style Welding Operations
The Flexible D16 Modular Fixture Table for Multi‑Style Welding Operations brings flexible 3‑dimensional positioning to your welding workshop. Featuring full five‑sided CNC‑machined surfaces and a complete range of interchangeable modular accessories, it quickly adapts to different workpiece shapes, cuts down fixture‑making costs and shortens change‑over time for multi‑style welding tasks.
Core Technical Parameters
| Item | Specification |
|---|---|
| Standard Hole Diameter | Φ16.065‑16.149 mm (H7 Tolerance) |
| Grid Pitch | 50 mm × 50 mm, Tolerance ±0.05 mm |
| Machined Surfaces | Fully five‑sided machined (Top surface + 4 side surfaces for fixture mounting) |
| Table Top Thickness | 12 mm |
| Perpendicularity | Perpendicularity between top and side surfaces: ≤0.1 mm/200 mm |
| Standard Static Load Capacity | Uniform table load: 2 tons; Overall frame load: 5 tons |
| Material | Q355 High‑strength Steel (Nitrided treatment) or HT300 Cast Iron |
| Nitriding Hardness | HV550‑900 (Optional), resistant to welding spatter abrasion |
| Available Dimensions | 1000×800 ~ 2400×1200 mm, multiple tables can be jointed for enlarged working area |
| Surface Roughness | Ra 1.6‑3.2 |
Core Advantages
- Highly Flexible, Adaptable to Multiple Welding Types - One platform handles sheet metal, pipes, frames, and small structural components; when changing products, only the fixtures need to be rearranged, eliminating the need to remake tooling, significantly shortening changeover time and reducing tooling costs.
- High Precision and Repeatability - High-precision hole system ensures high consistency in workpiece clamping position each time; suitable for both manual and robotic welding, guaranteeing consistent weld dimensions.
- Five-Sided Usability, Three-Dimensional Spacing - Not limited to the table surface, tooling can be clamped on all four sides, enabling multi-angle workpiece assembly welding in space.
- Comparison with D28 Series
- D16 Welding Table: 16mm hole diameter, 50mm hole spacing; suitable for small to medium-sized parts, sheet metal, pipes, precision small parts, and small-batch prototyping; smaller fixtures, lower investment
- D28 Welding Table: 28mm hole diameter, 100mm hole spacing; primarily for heavy-duty steel structures and large welded parts; higher load-bearing capacity; heavier fixtures, higher cost
Applicable Scenarios and Industries
- Processing Objects: Sheet metal parts, stainless steel pipe fittings, machine frames, small steel structures, welding prototype prototyping
- Industries: Automotive parts, construction machinery parts, rail transportation, equipment frames, hardware manufacturing, robotic welding workstations
- Processes: Manual arc welding, MIG welding, TIG welding, robotic welding, welding assembly, testing and calibration benchmark platforms
FAQ
Q: What base options are available?
A: Adjustable leveling legs, caster mobile base, hydraulic lifting base and robot anchoring base are optional. Caster wheels are only for transportation; do not bear clamping force during welding operation.
Q: What documents can you provide for export shipment?
A: Material test report, measuring protocol for flatness & perpendicularity, CE documents, packing list, commercial invoice and certificate of origin are available. HS Code: 73269000.
Q: How to maintain the D16 modular fixture table?
A: Keep holes clean of welding slag and metal chips. Apply anti‑rust oil on locating pins and holes periodically. Avoid heavy objects dropping onto working surfaces. Re‑check flatness every 6‑12 months.
Q: What size should I select?
A: Available sizes range from 1000×800 mm to 2400×1200 mm. Select table size according to your maximum workpiece dimension, leave extra space for clamping accessories. Joint multiple units if single table cannot meet your size requirement.
Q: Is this table suitable for robotic welding station?
A: Yes. Grade 0 precision version is strongly suggested for robot cells. Anchor the base to concrete floor to reduce vibration. Pneumatic clamps can be configured for automatic clamping cycles.
The Flexible D16 Modular Fixture Table for Multi‑Style Welding Operations delivers excellent repeat positioning and great flexibility for diverse welding jobs.
Contact us now to discuss your project, receive tailored proposal and competitive offer. We are ready to assist you!
