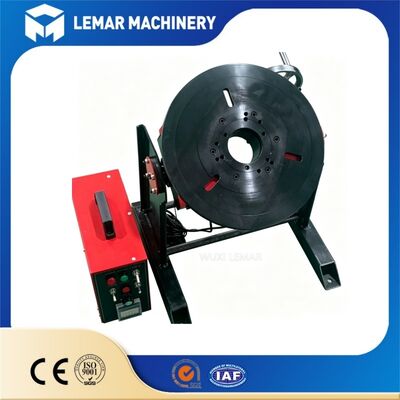

300kg Tilting Welding Positioner Rotary Welding Turntable
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-300
Document
Model NO.:
BWJ-300
Max Eccentricity Distance:
150mm
Control Mode:
Normal Or CNC
Horizontal Loading Weight:
300kg
Vertical Loading Weight:
150kg
Tilting Motor:
Manual
Max Eccentric Distance:
100mm
Exported To:
USA, UK, Canada, Greece, Poland, Brazil
Colour:
Customized
Highlight:
300kg tilting welding positioner
,rotary welding turntable fixture
,heavy-duty welding positioner table
Product Description
300kg Tilting Welding Positioner Rotary Welding Turntable
Product Overview
This 300kg welding positioner is compact rotary tilting equipment for small-medium workpieces. It rotates and tilts parts to keep welding seams in the flat position, greatly improving welding quality and working efficiency. Widely applied for pipe fitting, flange, valve, hardware component and small pressure part fabrication. It can work separately or cooperate with automatic welding systems.
Core Advantages
- Compact solid steel frame, small footprint, suitable for limited-space workshops
- 0-90 degree electric tilting, easy adjustment of workpiece to ideal welding angle
- Frequency-conversion stepless rotation speed, stable running, low noise
- Dual control: wired control box plus foot pedal, convenient for single-operator operation
- Support installation of 3-jaw chuck for fast clamping of circular workpieces
- Overload protection and emergency stop function for site safety
- Accept OEM modification for table size, voltage and extra accessories
Specifications
| Item | Parameter |
|---|---|
| Model | HBJ-03 Welding Positioner |
| Max Horizontal Load | 300 kg |
| Max Vertical Load | 150 kg |
| Turntable Diameter | 600 mm |
| Tilting Range | 0-90° electric tilting |
| Rotation Speed | 0.15-1.5 rpm stepless adjustable |
| Main Motor Power | 0.37 kW |
| Input Power | 380V 3-Phase 50Hz, custom voltage |
| Control | Wired control box + foot pedal |
| Optional Accessory | 3-jaw self-centering chuck |
| Application | Pipe, flange, valve, small metal component welding |
Application Scenarios
- Pipe fitting & flange welding
- Valve and pump component manufacturing
- Small pressure vessel parts fabrication
- Hardware metal workshop production
- Batch circular parts automatic welding
Quality Assurance
- Heavy-duty welded steel base with stress relief treatment
- Well-known brand reducer and frequency converter for stable performance
- Every unit completes no-load and partial-load running test before delivery
- CE compliant, 12-month whole-machine warranty, lifelong online technical support
Frequently Asked Questions
Q1: What is horizontal load vs vertical load?
A1: Horizontal load means workpiece placed flat on table up to 300kg. Vertical load means workpiece stands upright, max allowable 150kg. Please follow this parameter for safety production.
Q2: Can you supply matching 3-jaw chuck?
A2: Yes, 3-jaw chuck is optional extra accessory for fast clamping round workpieces.
Q3: Do you support different local workshop voltage?
A3: We support 220V, 415V, 440V and other customized voltage according to customer requirement.
Q4: Can this positioner connect with automatic welding machine?
A4: Yes, reserved signal interface for matching auto welding power source for automatic circumferential welding.
Q5: What support will you offer after order?
A5: We provide operation manual and assembly drawing. Online video guidance for installation, commissioning and troubleshooting. Spare parts available at factory cost after warranty period.
Packing & Shipment
- Main machine fixed inside standard thick plywood case against shock and moisture
- Control box, foot pedal and spare small parts packed in separate inner carton
- Fit for 20GP /40GP container loading, also accept LCL sea shipment
- Packing photos and loading photos can be provided before goods departure
Send us your workpiece parameters, we offer tailored solution and factory‑direct quotation for you.
