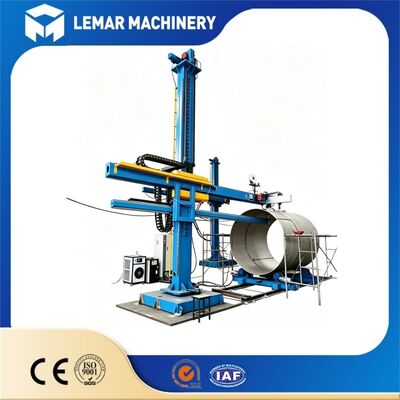

2mX2m Welding Manipulator Column And Boom for Tank Vessel Automatic Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 220.00cm * 130.00cm *2200.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Model Number
HJ2020
Document
Model:
HJ2020
Product Name:
2×2m Column Boom Welding Manipulator
Elevation Speed:
0.3 M/Min
Max Load:
100 Kg
Power:
0.91 Kw
Lifting Speed:
60-240 Mm/Min Stepless
Drive Mode:
Electric
Optional:
Welding Positioner,Welding Rotator
Welder:
TIG,MIG,Mag,Saw
Highlight:
2mX2m welding manipulator for tank vessel
,automatic welding column and boom
,welding manipulator with large work area
Product Description
2mX2m Welding Manipulator Column And Boom for Tank Vessel Automatic Welding
Product Overview
- Medium-duty welding auxiliary equipment with 2000mm vertical stroke and 2000mm horizontal stroke
- Primarily used for circumferential seam and longitudinal seam welding of medium-small tanks, pipes and cylindrical workpieces
- Cross-boom structure provides flexible welding range and maintains stable welding track during operation
- Reduces manual work, lowers welding defects and improves overall welding quality
- Compact footprint, well-suited for automation upgrade of medium and small welding workshops
Core Product Features
- Heavy welded steel frame with high rigidity and anti-deformation for long-time continuous operation
- Frequency-conversion stepless speed control for smooth boom movement without shaking
- Equipped with welding oscillator for uniform weld width and superior weld appearance
- Manual column rotation ±180° for flexible welding angle adjustment
- Pendant control box for easy field operation with optional wireless remote control
Technical Specifications
| Item | 2×2M Welding Manipulator |
|---|---|
| Effective Vertical Stroke | 2000 mm |
| Effective Horizontal Stroke | 2000 mm |
| Boom Moving Speed | 100-800 mm/min, stepless adjustable |
| Applicable Workpiece Diameter | 500-2000 mm |
| Column Rotation Range | ±180° Manual Rotation |
| Welding Mode Compatibility | MIG / TIG / Submerged Arc Welding |
| Control Mode | Pendant control, wireless remote optional |
| Power Supply | 3-phase 380V, 415V customizable |
| Driving Type | Chain transmission |
| Applicable Matched Equipment | Welding rotator, welding positioner |
Factory & Quality Advantages
- Professional welding equipment manufacturer with extensive manufacturing experience
- Every machine undergoes running inspection and testing before shipment
- CE documentation provided to support customer import customs clearance
- Strict material selection and machining processes ensure stable equipment performance
- Customization available for structure, speed parameters and control modes
Application Scope
- Circumferential and longitudinal seam welding for medium-small storage tanks and pressure vessels
- Automatic welding for pipes, flanges and cylindrical mechanical components
- Integration with welding rotators/positioners to create complete automatic welding stations
- Batch production for metal fabrication and machinery processing factories
- Cost-effective automation solution for small and medium manufacturing plants
Frequently Asked Questions
Q1: Can this manipulator work with welding rotator?
A: Yes. It can connect with welding rotators or positioners to realize automatic welding production.
Q2: Do you support 415V voltage for our local power grid?
A: Sure, we can customize 3-phase 415V according to customer requirements.
Q3: What welding methods does this machine adapt to?
A: It fits MIG, TIG and submerged arc welding for different production needs.
Q4: Is moving speed adjustable?
A: Yes, it adopts frequency conversion stepless speed regulation from 100-800mm/min.
Q5: What documents can you provide for import?
A: We can offer CE certificate, commercial invoice, packing list and other export papers.
