100kg Welding Positioner Rotary Welding Turntable For Circular Workpiece Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/P,T/T,L/C,D/A |
| Supply Capacity: | 500 units/month |
100kg welding positioner turntable
,rotary welding turntable for circular workpieces
,welding positioner for heavy-duty welding

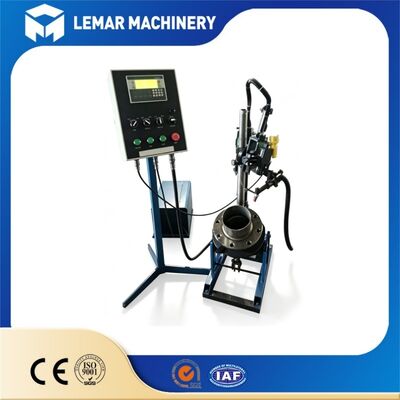

The 100kg welding positioner is compact rotary welding equipment designed for positioning circular workpieces including pipes, flanges, elbows, and round vessels. It rotates workpieces to the ideal flat-welding position, significantly improving welding quality and workshop efficiency.
This unit features a heavy-duty steel frame with stable rotation and frequency stepless speed regulation. Foot-pedal hands-free control supports linkage with welding machines, making it suitable for manual or semi-automatic circular seam welding. Widely used in machinery, hardware, pressure vessel, and pipeline fabrication workshops.
- Rated horizontal load: 100kg with compact, space-saving structure
- Worktable 360° electric rotation with infinitely adjustable rotation speed
- Manual tilting angle: 0-90 degrees for easy welding angle adjustment
- Foot pedal switch for hands-free operation with forward & reverse rotation
- Good conductive structure to prevent electric leakage during welding
- Optional accessories: three-jaw chuck, torch holder, tailstock
- Compatible with MIG, TIG, and MMA welding processes
- Simple maintenance with 1-year warranty for core components
| Item | Specification |
|---|---|
| Model | WP-100 |
| Rated Horizontal Load | 100kg |
| Rated Vertical Load | 50kg |
| Worktable Diameter | 400mm |
| Rotation Speed | 0.2-2rpm stepless adjustable |
| Tilting Mode | Manual tilting |
| Tilting Range | 0-90° |
| Control Mode | Control box + Foot pedal |
| Input Voltage | 220V 50/60Hz |
| Optional Parts | 3-jaw chuck, torch holder, tailstock |
| Warranty | 1 Year |
We provide flexible modification services for this 100kg welding positioner to meet different workshop requirements.
- Input voltage customization: 110V / 220V / 380V for different regional power supplies
- Upgrade optional components: 3-jaw /4-jaw chuck, torch holder assembly, simple tailstock
- Special worktable T-slot layout according to customer workpiece clamping requirements
- Reserved signal interface for cooperation with automatic welding systems
- OEM service for logo marking on machine body
Ideal for pipe fittings, flanges, elbows, small pressure vessels, round hardware parts, and circular seam welding job-shops. Can be matched with welding manipulators to build semi-automatic welding stations.
- Standard export packing: Inner waterproof plastic film with shock-proof foam protection for corners; outer solid plywood case for sea-worthy long-distance transportation
- Standard model in stock with delivery within 3-7 working days after deposit received
- Support for FOB, CFR, CIF, DAP trade terms - our sales team can provide freight references with destination port information
- All necessary documents including packing list and commercial invoice supplied for customs clearance
