D16 Welding Table for Precision Metal Joining and Repairs
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,D/P |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Locating Hole Diameter:
Φ16 mm (H7 Tolerance)
Hole Grid Pitch:
50 × 50 mm
Tabletop Thickness:
12mm
Available Working Surfaces:
Top + 4 Sides, Total 5 Faces
Tabletop Material:
Q355 Steel / HT300 Cast Iron (optional)
Surface Treatment:
Plasma Nitriding, HV550‑900
Nitrided Layer:
0.3-0.5mm
Verticality:
≤0.1 mm / 200 mm
Transportation Methods:
Sea Freight/Air Freight/China-Europe Railway
Highlight:
D16 welding table for metal joining
,precision welding fixture table
,welding table for metal repairs
Product Description

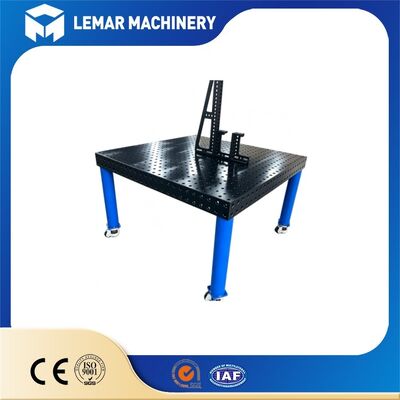

D16 Welding Table for Precision Metal Joining and Repairs
The D16 Welding Table for Precision Metal Joining and Repairs is a 3D modular welding workbench featuring Φ16 mm locating holes in a 50×50 mm grid. Equipped with a plasma‑nitrided anti‑spatter surface and five working faces, it supports flexible fixturing for precision metal joining, part repairing, sheet‑metal fabrication and prototype production. All matching clamping accessories are specially designed for this D16 system.
Dimensions
| Tabletop Size (L×W) mm | Tabletop Thickness mm | Side Height mm |
|---|---|---|
| 1000 × 800 | 12 | 100 |
| 1200 × 800 | 12 | 100 |
| 1200 × 1000 | 12 | 100 |
| 1200 × 1200 | 12 | 100 |
| 1500 × 1000 | 12 | 100 |
| 1500 × 1200 | 12 | 100 |
| 1500 × 1500 | 12 | 100 |
| 2000 × 1000 | 12 | 100 |
| 2000 × 1200 | 12 | 100 |
| 2000 × 1500 | 12 | 100 |
| 2000 × 2000 | 12 | 100 |
| 2400 × 1200 | 12 | 100 |
| 2500 × 1500 | 12 | 100 |
| 2500 × 2000 | 12 | 100 |
| 3000 × 1500 | 12 | 100 |
| 3000 × 2000 | 12 | 100 |
| 4000 × 2000 | 12 | 100 |
Key Features
- High-precision positioning: 50mm dense mesh ensures excellent dimensional repeatability, reducing dimensional deviations caused by welding deformation
- Slag-resistant and wear-resistant worktable: Nitrided treatment prevents weld slag from adhering to the worktable, reducing surface damage
- Flexible modular design: One welding worktable can accommodate multiple workpieces, eliminating the need for custom tooling costs
- Multi-faceted use: Positioning holes on the top and four sides allow for the construction of three-dimensional fixtures
- Optional accessories: Adjustable height support legs, casters with brakes, hydraulic lifting legs, and a complete set of clamping kits
Support System
- Tabletop Delivery Status: The tabletop is a single CNC-machined finished product, requiring no splicing; simply bolt the support legs to the bottom of the tabletop. The entire installation takes 30-60 minutes.
- Support Leg Options:
- Standard Adjustable Support Legs: Each leg has a ±50mm adjustment range; the platform can be adjusted to accommodate uneven ground; single leg load capacity is 900-1000kg
- Support Legs with Brakes: The worktable is movable, suitable for changing workstations in the workshop
- Hydraulic Lifting Support Legs: Electric/manual lifting to change the worktable height
- Heavy-Duty Frame Base: For large tabletops, providing greater overall rigidity
- Leveling Operation: After installation, use a level to adjust the feet at the bottom of the support legs to level the tabletop; it is recommended to check the flatness annually with a laser level
- Expansion and Connection: Multiple D16 welding tables can be connected using splicing plates to form a larger worktable, suitable for welding large frames and long components
Customer Applications
Looking for a reliable modular welding table?
Contact us for further information on D16 Welding Table for Precision Metal Joining and Repairs.
We support various custom options to match your production needs.
