D28 Welding Table with 3D Clamp Accessories Included
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table with clamps
,3D welding table with accessories
,welding table with 3D clamp set

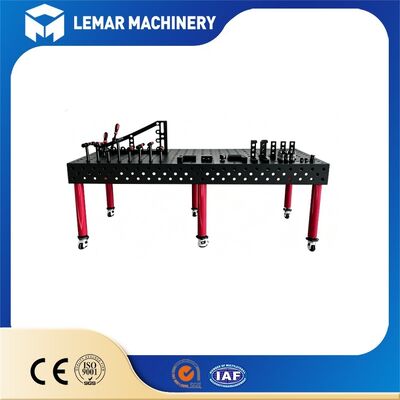

D28 Welding Table with 3D Clamp Accessories Included is a turn-key heavy-duty 3D flexible welding workstation. Built with standard D28 hole system (Φ28 mm holes, 100×100 mm grid), this complete package consists of the main welding table and full-range 3D clamp accessories. With holes available on the top and four side panels, it supports 3-dimensional positioning and clamping for large-size heavy workpieces. It removes the cost of custom-made welding jigs, perfectly suited for engineering machinery, chassis fabrication and steel structure workshops with high-mix, low-volume production.
| Tabletop Size (L×W) | Tabletop Thickness | Side Height | Approx. Weight (Q355 Steel) | Static Load Capacity |
|---|---|---|---|---|
| 1000×1000 mm | 25 mm | 200 mm | 860 kg | 5 Ton |
| 1500×1000 mm | 25 mm | 200 mm | 1260 kg | 6 Ton |
| 2000×1000 mm | 25 mm | 200 mm | 1640 kg | 8 Ton |
| 2000×1500 mm | 25 mm | 200 mm | 2280 kg | 10 Ton |
| 2500×1500 mm | 25 mm | 200 mm | 2850 kg | 10 Ton |
| 3000×1500 mm | 25 mm | 200 mm | 3420 kg | 10 Ton |
| 3000×2000 mm | 25 mm | 200 mm | 4480 kg | 10 Ton |
| 4000×2000 mm | 25 mm | 200 mm | 5850 kg | 10 Ton |
- Three-dimensional flexible tooling: The table and four sides are all perforated, allowing workpieces to be positioned and clamped in three directions (X, Y, and Z). It enables tilting and multi-angle welding without the need for dedicated welding molds; product modifications only require adjusting the fixture position, saving on mold costs.
- High precision: CNC machined for high flatness and perpendicularity, minimizing welding deformation. It can also serve as an assembly and inspection platform.
- Nitrided surface: Resistant to welding spatter, wear-resistant, and not easily damaged by electric arcs.
- Modular expansion: Multiple units can be combined to produce larger workpieces; fixture accessories can be continuously added.
- Locating pin (D28 locking pin): Inserted into the table hole for reference positioning.
- Right-angle locating block / 90° angle block: Vertically positions the workpiece.
- Adjustable angle block: Positions at any angle from 0-180°.
- Support pad block, height adjustment block: Z-axis height adjustment.
- Quick clamping fixture (C-clamp, manual clamp): Clamps the workpiece.
- Extension rod, connecting block: Expands the tooling position.
- Locking bolt, nut: Secures all tooling components.
The entire set of components can be combined at any hole position on the top surface and four sides of the welding table to achieve three-dimensional clamping. No welding tooling mold is required; changing the workpiece only requires rearranging the fixtures.
- Clean welding slag after each use with a copper spatula/wire brush. Never use an angle grinder to polish the worktable.
- Regularly check the wear of the locating pins. Worn pins can cause positioning errors; it is recommended to check every 6 months.
- For long-term shutdowns, apply anti-rust oil to the worktable.
- Perform welding table precision calibration every 1-2 years. Localized wear on the worktable can be repaired by scraping.
- Never drop workpieces directly onto the worktable to avoid localized dents and deformation.
If you are interested in D28 Welding Table with 3D Clamp Accessories Included, please feel free to send us your inquiry with your required table size and accessory kit.
Our professional team will offer you a detailed quotation and technical support promptly.
