Industrial D28 Welding Table for Complex Metal Welding Assignments
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
China
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Material:
HT300 Cast Iron And Q355 Steel
Flatness:
Tight Precision Flatness Tolerance
Optional Parts:
Mobile Casters, Height Adjustable Legs
Application:
Steel Structure, Metal Frame, Auto Parts Welding
Hole Diameter:
28mm Standard D28 Hole
Matching Accessories:
Positioning Square, T-Clamp, Quick Lock
Feature:
Anti-Deformation, Fast Positioning, Wear Resistant
Surface Treatment:
Integral Nitriding
Model:
D28 Welding Table
Highlight:
Industrial D28 welding table
,3D welding table for metal
,Welding table for complex assignments
Product Description

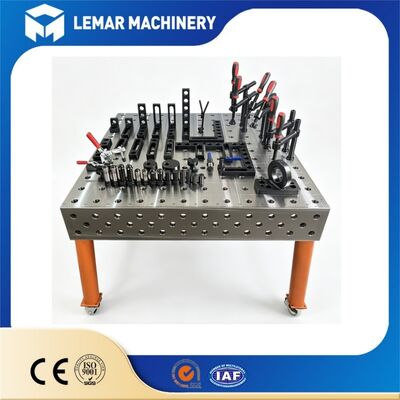

Industrial D28 Welding Table for Complex Metal Welding Assignments
Product Overview
Designed to tackle tricky multi‑angle metal welding assignments, this industrial D28 welding table delivers dependable modular positioning for non‑standard and intricately shaped workpieces. Built around the universal D28 hole grid system, this workbench removes limits of fixed jigs. Fabricators can rearrange locating and clamping components freely to handle constantly changing project requirements. Reinforced steel framework absorbs welding‑generated heat stress and mechanical impact, preserving surface geometry through long shifts of industrial‑grade production. It helps workshops cut custom fixture expenditure while boosting consistency for complex welding outputs.
Core Features
-
Purpose-Built for 3D Modular PositioningThe D28 table is specifically designed for three-dimensional modular workpiece setup. Its grid-based hole system allows fixtures to be mounted on any position, enabling precise clamping of complex shapes and angles that traditional flat tables cannot handle.
-
Nitrided Surface for Durability and Easy MaintenanceThe nitrided tabletop resists welding spatter and corrosion effectively, maintaining stable flatness over years of heavy daily use. Weld spatter does not adhere to the hardened surface, making cleanup quick and reducing long-term maintenance costs.
-
Five-Side Fully CNC Machined for Uniform PrecisionAll five working surfaces are precision CNC machined to ensure consistent accuracy across the entire table. This allows simultaneous fixturing on the top and side surfaces, enabling true 3D positioning for complex assemblies and multi-sided welding jobs.
-
Full Range of Interchangeable FixturesOver 100 compatible accessories are available, including locking pins, clamps, angle stops, rotary positioners, V-blocks, and extension arms. All components are fully interchangeable across D28 tables, so you can reconfigure your setup in minutes for different projects.
-
Heavy-Duty Reinforced Frame for Large LoadsThe robust steel frame with reinforced underside ribs supports substantial weight, with a standard load capacity of 5 tons and a frame load capacity of up to 10 tons per square meter. This makes the table suitable for both light sheet metal work and heavy structural fabrication.
-
Reduces Setup Time and Eliminates Custom Jig CostsBy replacing project-specific custom jigs with a reusable modular system, the D28 flexible welding table cuts setup time by up to 60 percent and eliminates ongoing custom fixture expenses. One table serves hundreds of different workpiece configurations, delivering rapid return on investment.
Product Specifications
| Item | Specification |
|---|---|
| Model | D28 Welding Table |
| Surface Treatment | Nitriding |
| Hole Diameter | 28mm |
| Material | HT300 Cast Iron / Q355 Steel |
| Standard Accessories | Positioning square, T-clamp, support block, quick lock |
| Optional Accessories | Mobile caster set, height adjustable legs |
Product Applications
This industrial D28 welding table is built to execute complex metal welding assignments across multiple sectors. Typical uses include mechanical frame fabrication, bent metal component welding, pipe structure assembly, agricultural machinery part manufacturing, transport accessory processing and custom metal structural fabrication. It fits independent fabrication shops, medium‑scale manufacturing plants, equipment modification workshops and vocational technical training centers.
Frequently Asked Questions
What's the difference between D16 and D28 welding tables?
D28 (28mm holes) is designed for heavy industrial work – thicker plates, larger workpieces, and higher clamping forces. D16 (16mm holes) is for lighter, precision assembly work. D28 accessories are NOT compatible with D16 tables and vice versa.
What does "3D five-sided" mean?
It means the table has precision-machined D28 holes on the top surface AND all four vertical sides. You can mount clamps and fixtures horizontally, vertically, or at angles – enabling true 3D fixturing for complex weldments.
How flat is the table, and how is it measured?
Our D28 tables guarantee ±0.1mm flatness per square meter. Each table is measured with a precision electronic level and laser tracker across multiple grid points before shipment. A flatness inspection report can be provided upon request.
What is nitriding, and why is it important?
Nitriding is a heat treatment that infuses nitrogen into the steel surface, creating a hard, wear-resistant layer (≥HV600). It protects against welding spatter, scratches, and corrosion – extending table life by 3-5 times compared to untreated steel.
Can I use my existing D28 accessories from other brands?
Yes, as long as they use the standard 28mm pin diameter and 100mm grid spacing. Our D28 system follows industry-standard dimensions, so most third-party D28 fixturing components will be compatible.
Do you offer custom sizes and configurations?
Absolutely. Send us your specifications for a custom quote.
How is the table shipped? Does it need assembly?
Standard models ship fully assembled – just unbox and place on your shop floor. Larger tables may have legs packed separately for transport safety, but assembly takes about 30 minutes with basic tools. Full instructions are included.
What's the warranty on the D28 welding table?
We offer a 1-year warranty against manufacturing defects. Normal wear from welding spatter and everyday use is not covered, but the nitrided surface is designed to last for years of heavy industrial use.
Contact Us
Reach our technical sales team when you look for reliable equipment to finish complex metal welding assignments. Share information covering workpiece shapes, table dimension expectation and accessory matching needs. Our specialists will analyze your actual production scenario and deliver targeted solution. Equip your workshop with this robust industrial D28 welding table and improve your complex welding project performance today.
