5 Ton Welding Positioner Heavy‑Duty Welding Turntable 5000kg Capacity
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 2000.00cm * 1200.00cm * 1000.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/P,T/T,D/A |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
HM-5T
Document
Model NO.:
HM-5T
Voltage:
110V/220V
Rotaion Speed:
0-120°
MOQ:
1 Set
Table Diameter:
1200mm /1500mm Optional
Price:
Varies According To Different Materials And Sizes
Customized:
Yes
Tilting Motor Power:
3.0 Kw
Rotation Motor Power:
2.2 Kw
Highlight:
5 ton welding positioner turntable
,heavy-duty welding fixture table
,welding turntable 5000kg capacity
Product Description

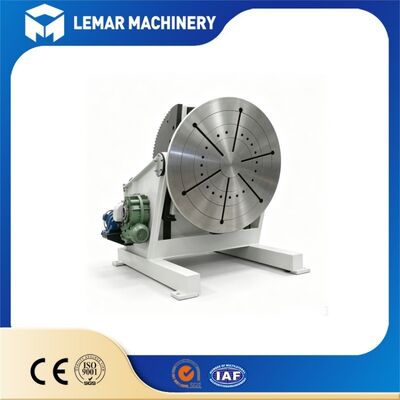

5 Ton Welding Positioner Heavy-Duty Welding Turntable 5000kg Capacity
Overview
This 5-ton welding positioner is heavy-duty welding auxiliary equipment designed for heavy workpieces. It can rotate and tilt workpieces to achieve down-hand welding, significantly improving welding quality and working efficiency. The solid steel frame features stress-relieved welding structure, ensuring stable operation under full load. It is widely compatible with automatic welding machines, welding manipulators, and welding rotators for complete welding production lines.
Main Features
- Maximum load capacity: 5000kg, heavy-duty welded steel base with excellent rigidity and anti-deformation properties
- 360° continuous rotation with frequency stepless speed adjustment for rotary table
- Tilting range: 0-135 degrees, large gear drive for stable tilting movement
- Equipped with wired pendant control box and emergency stop button for safe operation
- Conductive slip ring installed to prevent welding cable twisting
- Worktable with T-slots for easy fixture and chuck mounting
- Support for custom table size, 3-phase voltage 380V/415V 50/60Hz
- Compatible with 3-jaw chuck and can connect with welding manipulator for automatic welding
Technical Parameters
| Item | Parameter |
|---|---|
| Model | WP-50 |
| Rated Load | 5000kg |
| Rotation | 360° continuous |
| Rotating Speed | 0.05-1.0 rpm, frequency control |
| Tilting Angle | 0-135° |
| Standard Table Diameter | 1400 mm (customizable) |
| Rotation Motor | 1.5 kw |
| Tilting Motor | 2.2 kw |
| Power Supply | 3-phase 380V/415V, 50/60Hz |
| Control Mode | Wired pendant control |
| HS Code | 84688000 |
Note: All parameters can be adjusted according to customer's actual working conditions.
Product Application
- Pressure vessel & boiler manufacturing: circular seam welding for tanks, flanges, and pipe components
- Heavy metal fabrication workshop: large structural parts and machinery housing welding
- Pipeline industry: pipe fittings, elbows, and large flange all-position welding
- Machinery manufacturing: heavy mechanical parts and gear housing welding
- Cooperate with welding manipulator to build full-automatic welding stations
After-Sales Service
- 1-year warranty for whole machine under normal operation
- 24/7 online technical support with video guidance for installation, commissioning, and troubleshooting
- Free English operation manual and operation video
- Lifelong supply of spare parts at factory cost price
- Accept custom configuration for table, voltage, and accessories
Frequently Asked Questions
Q1: What is your MOQ?
A1: 1 set is acceptable.
Q2: Can you customize table diameter and working voltage?
A2: Yes. We support custom table size, 3-phase 380V/415V 50/60Hz.
Q3: What is production lead-time?
A3: Standard model: 12-15 working days; customized version: 18-25 working days after deposit.
Q4: Can it work together with welding manipulator?
A4: Yes, it can be matched with welding manipulator to realize automatic circular seam welding.
Q5: How about package for shipment?
A5: Heavy-duty fumigated export wooden case or steel frame package for sea transportation.
