D28 System Welding Table with 28mm Holes for Versatile Clamping
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
System Hole Diameter:
Φ28 mm (H7 Tolerance)
Hole Center Spacing:
100 × 100 mm
Tabletop Thickness:
25 mm (standard)
Flatness:
≤0.02 mm/1000 mm
Surface Treatment:
Plasma Nitriding
Hardness:
HV550‑900
Static Load Capacity:
5‑10 Tons
Configuration Option:
2D (top Surface Only) / 3D (top + Four Side Faces With Holes)
Compatibility:
Fully Compatible With Global Standard D28 Clamping Fixtures
Highlight:
D28 System Welding Table with 28mm holes
,3D Welding Table for versatile clamping
,Welding table with 28mm hole system
Product Description

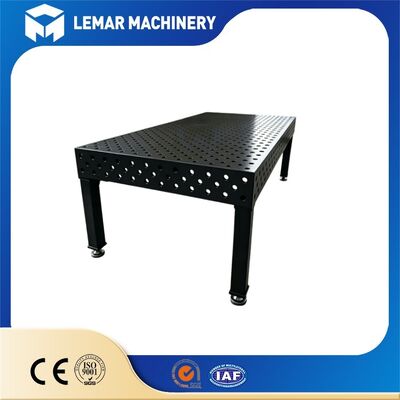

D28 System Welding Table with 28mm Holes for Versatile Clamping
A robust modular welding workbench designed for heavy‑duty metal processing. Equipped with 28 mm system holes in a 100×100 mm grid, it supports versatile 2D flat clamping or 3D multi‑axis fixturing.
Available in Q355 steel or HT300 cast iron, finished with plasma nitriding for anti‑spatter and wear‑resistant performance. It works with global D28‑series fixtures and supports table splicing for oversized components, ideal for robotic welding and heavy‑structure fabrication.
D28 System Welding Table Specifications
| Item | Specification |
|---|---|
| System Hole Diameter | Φ28 mm (H7 tolerance), compatible with M16 locking bolts |
| Hole Center Spacing | 100 × 100 mm, hole position accuracy ±0.05 mm |
| Tabletop Thickness | 25 mm (standard) |
| Flatness | ≤0.1 mm/1000 mm; High‑precision Grade 0: ≤0.05 mm/1000 mm |
| Material | Q355 high‑strength steel / HT300 gray cast iron (optional) |
| Surface Treatment | Plasma nitriding, hardness HV550‑900; anti‑weld‑spatter, wear‑resistant & corrosion‑resistant |
| Static Load Capacity | 5‑10 tons; single‑leg load capacity 900‑1000 kg |
| Standard Tabletop Sizes | 1000×800 / 1200×800 / 1500×1000 / 2000×1000 mm, custom & spliced large‑size tabletop available |
| Tabletop Height | Standard 200 mm; optional fixed legs, adjustable legs, lifting legs, caster‑equipped support frames |
Working Principle
- The table and four sides are covered with standardized 28mm system holes for grid coordinate positioning, with X/Y millimeter graduations
- Positioning blocks, corner brackets, quick clamps, and supports can be inserted into any hole using M16 bolts for free tooling combinations
- Workpieces can be fixed on the table surface, sides, or corners without the need for special molds
- Changing products only requires rearranging the fixtures, with changeover time typically a few minutes, suitable for multi-variety, small-batch production
Product Advantages
- Flexible Modular Design: One worktable adapts to countless workpieces, eliminating the cost of customized tooling
- High Precision: High hole position and flatness ensure consistent welding dimensions
- Durable and Slag-Resistant: Nitrided surface prevents slag adhesion and facilitates cleaning
- Three-Dimensional Clamping: Side openings allow for lateral clamping of workpieces, solving the problem of clamping irregularly shaped parts
- High Versatility: The D28 welding table adopts globally compatible standards, and fixture accessories are interchangeable
FAQ
Are D28 fixtures compatible with other international brands?
Yes, our D28 hole system is global standard, compatible with Siegmund, Demmeler and other European brand accessories. Adapter plates are available for D16‑D28 conversion.
Can multiple D28 tables be spliced together?
Yes. With connecting locating pins and bolts, multiple tables can be joined for extra‑large workpiece welding, keeping consistent hole grid and precision.
What is the difference between 2D and 3D D28 welding table?
3D table has holes on top and four side surfaces for 3‑dimensional clamping. 2D table only has holes on top surface for flat‑part welding only.
What is the warranty?
Main table body 1‑5 years warranty against manufacturing defects. Accessories 1‑year warranty, spare parts are available for replacement.
What size can you customize?
From 1000×800mm up to 4000×2000mm, custom hole grid and surface treatment are supported.
Whether you need standard size or custom spliced large‑size tabletop, our D28 System Welding Table with 28mm Holes for Versatile Clamping can match your workshop requirements.
