10kg Mini Welding Positioner 0‑90° Tilting Welding Turntable
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-1
Document
Model NO.:
BY-1
Tilting Angle:
0-90°
Horizontal Loading Weight:
10kg
Product Name:
10kg Mini Welding Positioner
Table Diameter:
180mm
Chuck:
3-Jaw Chuck (ø65mm)
Transport Package:
Wooden Box
Voltage:
110V/220V
Rotation Speed:
2-16r/Min Stepless
Highlight:
10kg welding positioner turntable
,mini welding turntable 0-90° tilting
,welding fixture table with warranty
Product Description

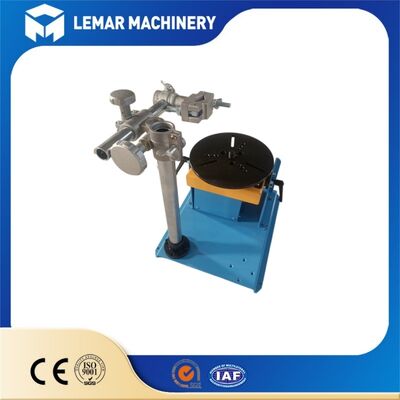

10kg Mini Welding Positioner 0‑90° Tilting Welding Turntable
Product Overview
- This 10kg Mini Welding Positioner is compact bench-top rotary equipment, specially designed for small-size pipe, flange and round-part circumferential welding.
- Horizontal rated load 10kg, vertical load 5kg, tilting angle 0-90° with worm-gear self-locking structure, keeps workpiece stable at any required angle.
- DC stepless speed regulation motor provides smooth rotation, equipped with foot pedal switch for hands-free operation, improves welding efficiency for small workshops.
- Reserved mounting hole for 3-jaw chuck, built-in conductive carbon brush, avoids welding arc damage to machine body.
- Small footprint, easy to place on workbench, widely used for TIG, MIG and arc welding as practical Portable Welding Positioner.
Technical Parameters
| Product Model | HD-10 10kg Mini Welding Positioner |
| Horizontal Rated Load | 10 kg |
| Vertical Max Load | 5 kg |
| Turntable Diameter | 180 mm |
| Rotation Speed | 2-16 rpm stepless adjustable |
| Tilting Angle | 0-90°, worm-gear self-locking |
| Driving Motor | 20W DC speed-regulating motor |
| Control Mode | Control box + Foot pedal switch |
| Compatible Chuck | KC-65 / KC-80 3-jaw chuck |
| Input Voltage | 220V 50/60Hz (customizable 110V) |
| Overall Dimension | 320×270×230 mm |
| Net Weight | About 10 KG |
| Certificate | CE / ISO available |
| Warranty | 1 year whole-machine warranty |
Main Features
- Compact bench-top structure, small size, light weight, convenient to move and install on workbench.
- 0-90° manual tilting with worm-gear self-locking mechanism, firmly locks workpiece angle during welding.
- DC stepless adjustable rotation speed, stable low-speed running for high-quality circular weld seam.
- Dual control mode: control box + foot pedal switch, operators can realize hands-free operation.
- Built-in conductive carbon brush, reliable grounding protection, prevent electric arc burn on machine components.
- Pre-reserved chuck installation hole, compatible with KC-65 / KC-80 three-jaw chuck for fast workpiece clamping.
Optional Upgrade Options
- 3-jaw self-centering chuck for fast round workpiece clamping.
- Welding torch holder assembly for automatic gun positioning.
- Pneumatic tailstock for long pipe workpiece supporting.
- Special-voltage transformer for 110V different-country power grid.
- OEM painting color and logo marking service.
Application
- Circumferential welding for small pipes, flanges, fittings and miniature cylindrical workpieces.
- Suitable for TIG, MIG, arc welding, also for polishing, assembling and testing work.
- Perfect for small workshop, laboratory, repair shop and welding training station.
- Can cooperate with small welding manipulator to realize simple automatic welding workflow.
Frequently Asked Questions
Q1: What is the actual load capacity of this mini welding positioner?
A: Horizontal load 10kg, vertical tilting status max 5kg, please do not overload for stable running.
Q2: Does the machine include 3-jaw chuck?
A: Chuck is optional accessory, we can supply matching chuck according to your demand.
Q3: Can rotation speed be adjusted?
A: Yes, DC stepless speed regulation from 2-16rpm for different welding requirement.
Q4: What voltage can you provide?
A: Standard 220V, 110V transformer can be customized.
Q5: What after-sales support can you offer?
A: One-year whole-machine warranty, operation manual, video-call remote guidance are available.
If you have any technical questions about our 10kg mini welding positioner, such as load requirement, compatible chuck, voltage adaptation or customized modification needs, feel free to send us your inquiry.
Please tell us your workpiece size, material and working condition, we will recommend the most suitable solution for you. We reply to all messages promptly.
