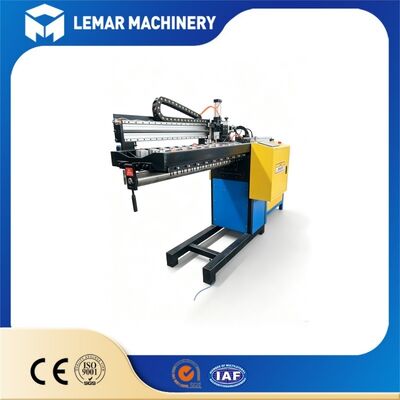

1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 150.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
Zfh1500
Document
Electric Current:
DC
Welding Metal:
Stainless Steel, Iron, Aluminum, Brass
Welding Thickness:
0.5-3mm/0.8-6mm
Workpiece Type:
Cylinder, Pipe, Tank, Sheet Metal
Current:
10-1000A
Welding Diameter 100-750mm:
100-750mm
Rated Duty Cycle:
50-100%
Welding Mode:
TIG MIG Mag Saw Welding Machine
Transport Package:
Wooden
Highlight:
1500mm longitudinal seam welding machine
,cylinder flat plate butt welder
,straight seam welding machine with warranty
Product Description
1500mm Longitudinal Seam Welding Machine for Cylinder Flat Plate Butt Welding
Product Overview
This 1500mm Longitudinal Seam Welding Machine is designed for butt-joint welding of cylindrical shells and flat plates, widely used for stainless steel tank, pressure vessel and metal shell production.
- Adopts stable pneumatic clamping structure, copper forming backing block realizes single-side welding and double-side forming, greatly improves weld quality for stainless steel workpieces.
- Servo-driven torch carriage delivers stepless adjustable welding speed, PLC touch screen saves multiple groups of welding parameters for repeated mass production.
- X/Z axis torch fine-tuning mechanism ensures accurate seam alignment. Reserved signal interface supports linkage with external welding power source.
- Suitable for carbon steel, stainless steel and other metal materials, it is core Tank Longitudinal Welder for metal fabrication workshops.
Main Features
- Max effective welding length reaches 1500mm, fits cylinder shell and flat-plate butt joint processing.
- Pneumatic clamping structure provides even pressure, prevents workpiece shifting during welding process.
- Copper backing block with forming groove achieves single-side welding double-side forming for neat weld bead.
- PLC touch screen control, stores multiple sets welding parameters for repeat production.
- Servo-driven torch carriage, stepless adjustable welding speed, stable running performance.
- X/Z-axis torch fine-tuning structure for precise seam alignment.
- Reserved signal interface for connecting external welding power source to realize automatic linkage.
Technical Parameters
| Technical Item | Parameter Data |
|---|---|
| Product Model | 1500mm Longitudinal Seam Welding Machine |
| Max Effective Welding Length | 1500 mm |
| Applicable Workpiece Thickness | 0.5-6mm (depends on welding power source) |
| Clamping Mode | Pneumatic clamping |
| Welding Forming | Single-side welding double-side forming |
| Carriage Driving | Servo motor drive |
| Welding Speed | 0.2-3 m/min stepless adjustable |
| Control System | PLC + Touch Screen |
| Torch Adjustment | X / Z axis manual fine-tuning |
| Working Power Supply | 380V 50/60Hz (customizable) |
| Total Weight | About 1400 KG |
| Certificate | CE / ISO available |
| Warranty | 1 year whole machine warranty |
Optional Upgrade Options
- Back-side gas protection device for high-standard stainless steel welding.
- Wireless handheld controller for convenient on-site parameter adjustment.
- Water-cooled torch assembly for long-time heavy-duty continuous production.
- Reinforced clamping module for thicker workpiece processing.
- Torch swing module for wide-gap butt welding condition.
- Customized travel stroke and clamping range for special-size shells.
- OEM painting color and marking service for brand-oriented customers.
Application
- Longitudinal seam welding for stainless steel tanks, pressure vessels and cylindrical shells.
- Flat-plate butt welding for sheet metal, carbon steel and alloy steel workpieces.
- Applied in food equipment, chemical industry, environmental protection equipment manufacturing.
- Can cooperate with welding positioner and turning rolls to complete full workpiece welding workflow.
Frequently Asked Questions
Q1: What workpiece can this 1500mm longitudinal seam welder process?
A: It is mainly for longitudinal butt welding of cylindrical shells and flat plates, suitable for stainless steel, carbon-steel sheet.
Q2: Does it come with welding power source?
A: The welding power source is optional. We can supply matching power source according to your requirement.
Q3: Can we change welding stroke for special workpieces?
A: Yes, customized stroke, clamping range and special-voltage cabinet are supported.
Q4: How about after-sales service?
A: One-year whole-machine warranty. We provide operation video, manual, and remote video-call guidance.
Q5: Can it link with other welding equipment?
A: Yes, reserved signal interface supports linkage with external welding power source.
