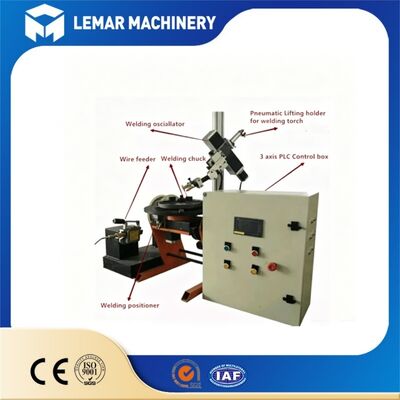

300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/P,T/T,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-30
Document
Load Capacity:
300kg (Horizontal)
Tilting Angle:
0‑90 Degree
Speed Control:
VFD Stepless Speed Regulation
Control Method:
Hand Control Box + Foot Pedal
Faceplate Type:
T‑slot Faceplate
Application:
Pipe, Flange, Cylinder Welding
Drive Typ:
Worm‑gear Reducer Driving
Power Supply:
220V/380V 50Hz, Custom Voltage Available
Customizable:
Voltage, Faceplate, Accessories Supported
Highlight:
300kg welding positioner table
,welding turning table for pipe
,flange circumferential welding positioner
Product Description
300kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
The 300kg Welding Positioner is practical welding auxiliary equipment, also known as a welding turning table. It enables 360° workpiece rotation and 0-90° tilting adjustment, helping operators complete circumferential seam welding, assembly, and grinding work. VFD stepless speed ensures stable rotation for small to medium cylindrical workpieces.
Main Features
- 300kg horizontal rated load, stable bearing for medium-size workpieces
- 0-90 degree tilting angle, adjusting workpiece to ideal flat welding position
- VFD stepless speed regulation with forward & reverse rotation function
- T-slot faceplate for easy installation of chucks and various clamping fixtures
- Compact welded steel frame with good rigidity for long-term workshop operation
- Hand control box plus foot pedal for convenient field operation
- Support for customized voltage, faceplate size and optional accessories
Technical Parameters
| Item | Specification |
|---|---|
| Model | BWJ-300 Welding Positioner |
| Horizontal Rated Load | 300 kg |
| Vertical Allowable Load | 150 kg |
| Faceplate Diameter | Φ600 mm |
| Tilting Angle | 0-90° |
| Rotation Speed | 0.2-2.5 r/min, VFD stepless speed |
| Rotation Motor Power | 0.2 kW |
| Power Supply | 220V/380V 50Hz, custom voltage supported |
| Control Mode | Hand control box + Foot pedal |
| Net Weight | About 145 kg |
Optional Configuration List
- 3-jaw self-centering chuck for fast workpiece clamping
- Wireless remote control for flexible workshop operation
- Larger-size T-slot faceplate for bigger workpieces
- Custom motor for 415V-60Hz international power grid
- Welding earth-return copper brush assembly
Order & Delivery Notice
- Standard production lead time: 12-18 working days after formal confirmation
- Heat-treated wooden case for sea-worthy export packaging
- Key components well protected to avoid damage in long-distance transport
- 1-year whole machine warranty, wearing parts excluded
- Online technical guidance for installation, commissioning and daily troubleshooting
Custom Note
We can adjust power supply voltage, faceplate dimension and match different chucks according to customer actual working conditions.
Frequently Asked Questions
Q1: What workpiece can this 300kg welding positioner handle?
A1: This welding turning table is suitable for flanges, short pipes, small cylinders and circular mechanical parts. The horizontal rated load is 300kg, please do not exceed the loading limit.
Q2: Can I change the rotation speed of the welding positioner?
A2: Yes. It adopts VFD stepless speed regulation. Users can adjust rotating speed freely, with forward and reverse rotation function for circumferential seam welding.
Q3: Is custom service available for this welding auxiliary equipment?
A3: Sure. We support custom power supply voltage, faceplate size. Matching 3-jaw chuck and other accessories are optional according to your working condition.
Q4: What is the delivery time for the 300kg welding positioner?
A4: Standard lead time is 12-18 working days after order confirmation. Goods are packed in seaworthy heat-treated wooden case for overseas shipment.
Q5: What after-sales support can you provide?
A5: The machine comes with 1-year warranty (wearing parts excluded). We offer online technical guidance for installation, commissioning and daily troubleshooting.
