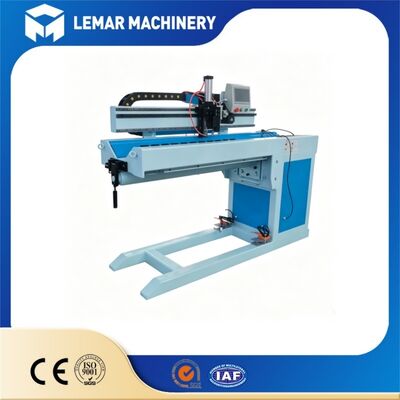

1200mm Longitudinal Seam Welding Machine Automatic Straight Seam Welder
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
1200mm automatic seam welding machine
,longitudinal seam welder with fixture
,straight seam welding machine automatic
The 1200mm longitudinal seam welding machine is specialized automatic equipment designed for straight butt seam welding. It features a pneumatic keyboard clamping structure to securely fix cylindrical shells or flat plates. The servo torch carriage ensures stable travel for high-quality longitudinal welds. Compatible with TIG, MIG, and MAG welding sources, this machine is widely used in stainless steel tank, duct, and small pressure vessel shell production. It can integrate with welding rotators and positioners to create fully automated production lines. All machines are manufactured in our own factory, with non-standard modifications available to meet specific workshop requirements.
- Maximum effective welding length of 1200mm for cylinder shells and plate butt joints
- Pneumatic keyboard clamping ensures uniform pressure and prevents workpiece shifting
- Copper backing block enables single-side welding with double-side forming
- PLC touch screen control with multiple welding parameter groups stored
- Servo-driven torch carriage for stable and adjustable welding speed
- Support for non-standard customization and OEM services
| Parameter | Specification |
|---|---|
| Max Effective Welding Length | 1200mm |
| Workpiece Diameter Range | 100-800mm |
| Applicable Plate Thickness | 0.5-3mm |
| Welding Speed | 100-1800mm/min (stepless adjustable) |
| Control Mode | PLC + Touch Screen |
| Clamping Mode | Pneumatic Keyboard Clamping |
| Torch Fine Tuning | X/Z Axis Manual Fine Adjustment |
| Standard Voltage | 380V 3Ph (customizable global voltage) |
| Optional Accessories | Back gas protection, water cooled torch assembly |
- Ideal for longitudinal seam welding of cylindrical shells and flat plate butt joints.
- Perfect for stainless steel and carbon steel thin-wall container fabrication.
- Widely applied in duct, water tank, small pressure vessel, and metal cabinet production.
- Compatible with TIG and MIG automatic welding processes for consistent weld beads.
- Suitable for both small batch trial production and large-scale factory mass processing.
- Designed for stable continuous operation in daily industrial workshop manufacturing environments.
As a direct factory with over 20 years of experience in welding auxiliary equipment, we produce welding rotators, positioners, manipulators, and longitudinal seam welding machines. All products undergo strict quality inspection before shipment. CE supporting documents are available. We accept custom solutions and OEM services to meet your specific requirements.
The standard model offers 1200mm effective welding length. Longer versions can be customized for larger workpieces.
It supports TIG, MIG, and MAG welding sources. Signal interfaces are reserved for linkage with welding power sources.
Yes. Pneumatic uniform clamping and copper backing blocks guarantee stable welding for thin wall stainless steel workpieces. Back side gas protection is optional for higher quality requirements.
Yes, we support custom voltage, clamping range, and fixture structure modifications according to your actual workpiece requirements.
We provide a 12-month warranty for core mechanical and electrical parts (excluding wearing consumables). Long-term online technical support is available.
