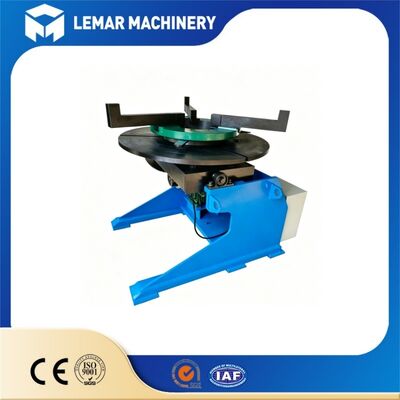

300Kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-30
Document
Product Name:
300Kg Welding Positioner
Model Number:
BWJ‑3
Rated Horizontal Load:
300 kg (Full‑load)
Rated Vertical Load:
150 kg
Rated Vertical:
Load150 kg
Tilting Angle:
0‑90° (Manual Tilting)
Rotation Speed:
0.2‑2.5 Rpm
Rotation Motor:
200 W
Control Mode:
Main Control Box + Foot Pedal Switch
Highlight:
300kg welding positioner for pipe welding
,welding turning table for circumferential welding
,rotary welding positioner for flange welding
Product Description
300Kg Welding Positioner Welding Turning Table for Pipe Flange Circumferential Welding
Product Overview
This 300 kg welding positioner is essential auxiliary equipment for circumferential welding of pipes, flanges, and small pressure vessels. The table can tilt from 0-90° manually, easily positioning workpieces for flat welding.
Equipped with VFD stepless rotation speed and foot-pedal hands-free operation. The T-slot worktable supports 3-jaw/4-jaw chuck installation. Featuring a compact and sturdy welded-steel frame, it is widely used for MIG/TIG girth welding, significantly improving welding quality and working efficiency.
Technical Specifications
| Item | Specification |
|---|---|
| Model | BWJ-3 |
| Horizontal Full-load Capacity | 300 kg |
| Vertical Full-load Capacity | 150 kg |
| Worktable Diameter | 500 mm |
| Tilting Range | 0-90°, Manual tilting |
| Rotation Speed | 0.2-2.5 rpm |
| Rotation Motor | 200 W |
| Power Input | 220V 1-Phase 50Hz (Customizable) |
| Control | Control box + Foot pedal |
| Optional | 3-jaw /4-jaw chuck, torch stand, wireless remote |
| Net Weight | 130 KG |
Tilting & Rotary Worktable Structure
- Manual tilting mechanism, adjustable 0-90 degree to achieve flat welding position
- Heavy-duty T-slot worktable, easy to install chucks and fixtures
- Large central hole for pipe penetration, convenient for pipe girth welding
- Precision worm-gear reducer, smooth and stable workpiece rotation
- High rigidity steel table-plate, anti-deformation under rated load
Optional Matching Accessories
- Support 3-jaw or 4-jaw chuck for clamping round workpieces
- Optional adjustable welding torch holder for fixed welding gun
- Custom-made work fixture for special-shape components
- Conductive copper block to protect welding motor from welding current damage
- Custom-made voltage for different countries' power grid
Mechanical Performance & Safety
- Integral welded steel base, strong rigidity and vibration resistance
- Strict no-load running test before delivery
- Over-load protection design to protect motor and reducer
- Compact footprint, save workshop floor space
- Low running noise, suitable for continuous workshop production
Application & After-sales Service
- Ideal for flange, pipe, small vessel, elbow circumferential welding
- Fit for MIG, TIG, MMA various welding processes
- Spare-parts supply for wearing components
- Online technical guidance for installation and troubleshooting
- 12-month warranty against manufacturing defects
Should you have any technical questions or quotation requirements, please feel free to send us your inquiry.
