D28 Modular Welding Table for Metal Structure Welding Projects
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Condition:
New
Flatness:
≤0.1mm/1000mm
Diameter:
28mm
Thickness:
25mm
Working Face:
5-Sided Precision Machining
Verticality:
≤0.1mm/200mm
Trademark:
Lemar
HS Code:
732690
Highlight:
D28 modular welding table
,welding table for metal structures
,3D welding table with warranty
Product Description

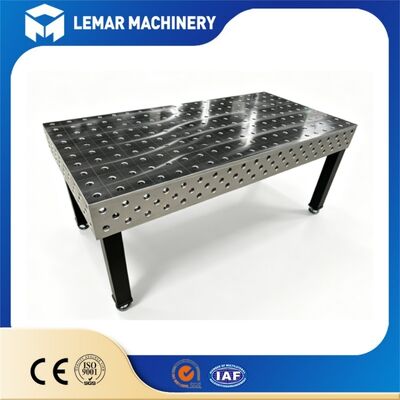

D28 Modular Welding Table for Metal Structure Welding Projects
The D28 modular welding table is a robust 3D fixture platform specially built for metal structure welding projects. Built with high‑strength steel material, this worktable features dense D28 hole grids across the surface and side faces to support abundant clamping accessories.
It delivers high‑precision positioning for various welding fabrication tasks. Operators can quickly assemble jigs and fixtures without complex custom machining. Compatible with manual welding and robotic welding workflows, this modular welding table greatly improves workshop production efficiency and guarantees consistent welding accuracy for metal structure manufacturing.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | D28 3D Welding Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
Key Features
- Standard D28 hole grid design supports full range modular accessories for fast fixture setup
- High load‑bearing steel structure handles heavy metal structure workpieces without deformation
- Excellent surface flatness ensures repeatable positioning accuracy for batch welding jobs
- Compatible with manual welding stations and robotic welding cells for flexible production upgrade
- Dense holes on top and four side faces provide multi‑direction clamping for complex metal parts
- Customizable table dimensions meet different workshop layout and project requirements
Applications
This D28 modular welding table serves wide‑ranging metal structure welding scenarios. It works for steel frame fabrication, chassis assembly, machinery component welding, heavy metal part processing, engineering structure manufacturing and small‑batch custom metal fabrication. It fits job‑shop workshops, metal fabrication factories and automated robotic welding production lines.
Customer Feedback
Shipping & Delivery
Frequently Asked Questions
What is the main difference between D28 and D16 welding table?
D28 uses 28mm hole system for heavier load and larger workpieces, while D16 suits light‑to‑medium welding tasks.
Can I purchase only the table body without any accessories?
Yes, we support separate table body sales. You can select matching clamps and fixtures according to your own needs.
Is table size customizable?
Yes, we offer non‑standard dimension customization to fit your workshop space and workpiece size.
Does this table work for robotic welding projects?
Absolutely. The D28 modular system is widely applied in robotic welding cells for automatic positioning.
What surface treatment options can I choose?
Nitrided treatment for high wear resistance or painted surface for cost‑effective general use are both available.
What is your lead time for standard D28 welding table?
Normally 15‑25 working days for standard models. Custom sizes will require longer production time.
