100kg Welding Positioner Rotary Welding Turning Table for Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
100kg welding positioner table
,rotary welding turning table
,circular welding positioner fixture

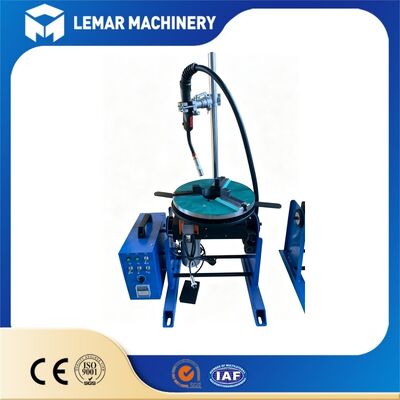

Our 100kg welding positioner is compact rotary workpiece turning equipment, widely used for circular welding of flanges, small pipes, cylinders and pressure vessel parts. It tilts and rotates workpieces to down-hand welding position, improves weld quality and workshop working efficiency, and fits small-medium fabrication workshops.
- Stable Gear Transmission: Precision worm-gear drive ensures smooth rotation without shaking under full-load working status.
- VFD Stepless Speed Regulation: Wide adjustable rotation speed range matches TIG/MIG/MAG different circular welding processes.
- Flexible Tilting Design: 0-90° tilting angle allows free adjustment of workpiece angle for comfortable down-hand welding operation.
- Compact & Solid Structure: Heavy-duty welded steel frame with small footprint, easy to install and move inside workshop.
- Pipe Fabrication: Circular seam welding for short pipes, pipe fittings and pipe flange assemblies.
- Flange Welding Work: Positioning and turning for carbon steel & stainless steel flange welding jobs.
- Small Tank & Cylinder: Circular welding of small-size tanks, shells and cylindrical structural parts.
- General Metal Workshop: Batch welding, assembly and grinding operation for rotary metal workpieces.
- Foot Pedal Controller: Hands-free operation with start-stop rotation by foot when welder keeps hands on welding torch.
- 3-Jaw Welding Chuck: Quick clamping for round workpieces improves fixture efficiency for batch production.
- Torch Holder Bracket: Fix welding torch to realize semi-automatic circular welding together with positioner rotation.
- Custom Working Voltage: Support 220V single-phase, 380V three-phase and other local-standard voltage customization.
| Item | Specification |
|---|---|
| Model | HD-100 Welding Positioner |
| Rated Load Capacity | 100kg (horizontal position) |
| Table Diameter | Φ400mm |
| Rotation Speed | 0.1-1 rpm stepless adjustable |
| Tilting Angle | 0-90° |
| Drive Mode | Worm gear reducer + VFD control |
| Input Power | 0.18kW |
| Input Voltage | 220V 1-Phase (customizable) |
| Center Hole | Φ45mm |
| Certification | CE |
- Factory Quality Inspection: Every unit passes full-load running test before shipment to guarantee stable performance.
- Complete Document Supply: CE certificate, English operation manual and electrical drawing files provided.
- Spare-parts Support: Long-term supply of wearing spare parts with factory direct cost price.
- Remote Technical Support: Online guidance for installation, parameter setting and daily troubleshooting.
A: 100kg rated load under horizontal state; effective load will decrease when tilting to large angle. Please confirm workpiece weight and gravity center before order.
A: Yes. Optional signal interface can realize simple linkage with welding power source for circular seam welding.
A: Chuck belongs to optional accessory, not included for standard model. You can select matching chuck according to your workpiece diameter.
A: Yes, we can adjust speed range and make simple modification according to your actual production demand.
A: Standard model 7-10 working days; customized version will take 15-20 working days.
