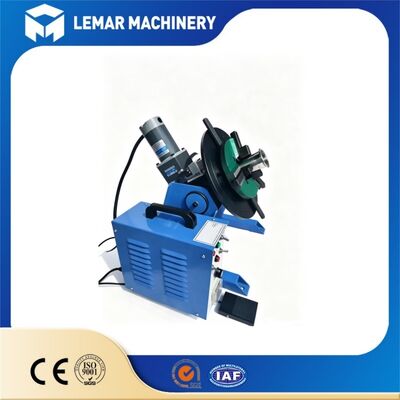

50kg Tilting Welding Positioner, Light Weight Welding Rotary Table for Metal Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 50.00cm * 47.00cm * 42.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-5
Document
Model NO.:
BWJ-05
Max Eccentricity Distance:
200mm
Voltage:
110V/220V
Horizontal Rotation Speed:
0-3rpm Stepless Adjustable
Tilt Angle:
0-90
Table Speed:
0.5-5
Optional:
TIG MIG Mag Welder
Oversize:
Customized
Welder Holder:
Yes
Highlight:
50kg tilting welding positioner
,light weight welding rotary table
,welding positioner for metal fabrication
Product Description
50kg Tilting Welding Positioner, Light Weight Welding Rotary Table for Metal Fabrication
Product Overview
This 50kg light-duty welding positioner is a compact rotary turntable designed for small-size circumferential welding jobs. It tilts from 0-90° and delivers 360° smooth rotation, turning workpieces to flat welding position to avoid overhead and vertical welding. With stepless adjustable rotation speed and foot-pedal control, it greatly improves welding consistency and reduces operator fatigue. Widely matched with TIG, MIG, CO₂ welding machines for pipe, flange and small cylinder welding tasks.
Core Advantages
- 0-90° worm-gear tilting structure with self-locking function, keep table stable at any angle
- 360° continuous rotation, 0.5-6 RPM stepless speed regulation for precise circular seam welding
- Convenient foot pedal switch, free hands for welding operation
- Compact and sturdy cast-iron structure, low noise and long service life
- Support optional 3-jaw chuck and torch holder for integrated welding work
- Voltage customizable for global market: 220V / 380V /415V 3-phase
Technical Parameters
| Item | Specification |
|---|---|
| Horizontal Rated Load | 50kg |
| Vertical Max Load | 25kg |
| Tilting Angle | 0-90° |
| Rotation Angle | 360° Continuous |
| Rotation Speed | 0.5-6 RPM stepless adjustable |
| Table Diameter | 315mm |
| Motor Power | 120W |
| Control Mode | Control box + Foot pedal |
| Input Voltage | 220V (Customizable) |
| Optional Accessories | 3-jaw chuck, torch holder |
| Weight | 35kg |
Application Scope
- Pipe and flange circumferential welding
- Small cylinder, ring-shaped metal parts welding
- Suitable for TIG / MIG / CO₂ welding process
- Also available for cutting, grinding, assembly and testing work
- Widely used in small metal workshop, hardware fabrication, equipment accessory manufacturing
Standard & Optional Accessories
| Standard Accessories | Optional Accessories |
|---|---|
| Main positioner host | 3-jaw welding chuck |
| Control box | Welding torch holder |
| Foot pedal switch | Custom-size worktable |
| Power cable | CE certification document |
Quality Control
- Full-load running test under 50kg rated load before shipment
- All electrical components pass incoming inspection
- Complete aging test to eliminate early-stage equipment failure
- Rotation smoothness and low-speed jitter calibrated by professional instruments
- Each unit comes with operation manual for installation and maintenance
