D28 Modular Steel Welding Fixture Table for Frame Assembly Jobs
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
modular steel welding table
,welding fixture table for assembly
,D28 frame assembly welding table

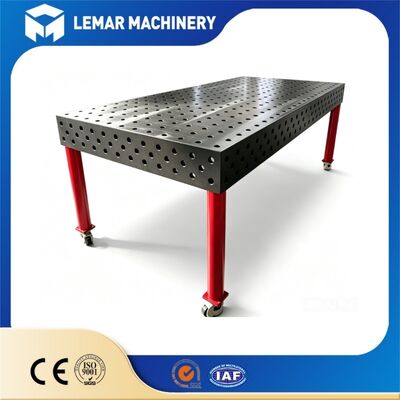

The D28 Modular Steel Welding Fixture Table is a professional industrial work platform specially optimized for frame assembly and welding operations. Tailored for square tube frames, equipment racks, vehicle frames and steel structure frame production, this D28 standard welding table adopts high strength integral steel plate structure and precise industrial processing technology.
Equipped with standard D28 full grid hole layout, it supports universal matching of various positioning fixtures, clamps and connection accessories. The overall structure features excellent stability and load bearing capacity, which effectively solves the problems of inaccurate positioning and easy deformation in traditional frame manual assembly.
With anti high temperature and anti spatter surface treatment, it can adapt to long term continuous frame welding work in industrial workshops, greatly improving assembly precision and production consistency of frame workpieces.
| Parameter | Specification |
|---|---|
| Model | D28 3D Welding Table |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
- Professional D28 hole spacing design, perfectly matching various frame assembly fixtures, realizing fast positioning and clamping of frame workpieces without repeated marking and measurement.
- High strength steel integral table body with strong compression and deformation resistance, effectively avoiding frame offset and deformation during long time welding and assembly.
- High temperature resistant surface treatment isolates welding spatter adhesion, prevents table surface damage and scratch, and maintains long term flatness and usability.
- Adjustable leveling support feet adapt to uneven workshop ground, ensuring horizontal assembly of frames and improving the overall assembly precision of finished products.
- Modular splicing design allows multiple tables to be combined freely, meeting the assembly and welding requirements of super long and oversized frame structures.
- Simple and easy maintenance structure, smooth table surface is convenient for cleaning welding slag and metal debris, reducing daily workshop maintenance cost and time.
This D28 modular welding fixture table is highly targeted for all kinds of frame assembly and welding scenarios. It is widely used in automobile frame and chassis assembly, mechanical equipment support frame welding, steel structure building frame processing, logistics equipment rack production, agricultural machinery frame manufacturing and custom metal frame customization.
It is suitable for small batch customized frame processing in small workshops and stable batch frame production in large manufacturing factories. It can not only complete precise welding and assembly of frames, but also support workpiece detection, correction and subsequent finishing operations, serving as an essential core fixture platform for frame processing enterprises.
Yes. The D28 standard fixture matching precision is high, which can fix thin walled tube frames stably, avoid shaking and deformation during welding, and ensure the flatness and verticality of frame finished products.
Absolutely. We support personalized structural reinforcement customization according to your heavy duty frame processing needs to improve the overall load bearing and stability of the workbench.
All standard D28 series fixtures, clamping blocks, positioning pins and connecting accessories are fully compatible, which can realize flexible combination for different frame shapes.
The table adopts integral thick steel plate and professional high temperature resistant treatment, with stable physical properties. It will not deform or warp under normal frame welding temperature, maintaining long term processing accuracy.
Yes. The standardized modular design supports seamless splicing of multiple workbenches, which can expand the operation area arbitrarily to meet the processing needs of oversized frames.
Conventional standard models have sufficient stock for fast delivery. Customized size and reinforced structure products take about 15 to 25 working days according to the customization difficulty.
If you are looking for a high precision and high stability welding table dedicated to frame assembly jobs, our D28 Modular Steel Welding Fixture Table will be your ideal choice. We focus on providing professional industrial welding fixture solutions for global metal processing manufacturers.
You can tell us your frame workpiece size, processing type and special load requirements. Our professional technical team will provide you with exclusive customized solutions and favorable factory prices. We sincerely look forward to establishing long term stable and win win cooperative relations with you.
