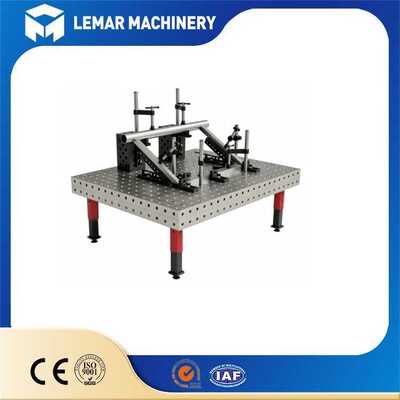

D16 16mm Hole System Modular Welding Fixture Table Kit
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
16mm hole welding fixture table
,modular welding table kit
,welding fixture table with holes
D16 16mm Hole System Modular Welding Fixture Table Kit is a complete 3-dimensional flexible workholding solution for precision metal fabrication and welding operations. Built around the Φ16 mm H7-tolerance hole system with 50×50 mm high-density grid, this full kit delivers repeatable positioning accuracy up to ±0.05 mm across the full five-sided machined tabletop (top plus four side faces).
Supplied with table body, adjustable support legs, and full range of modular clamping & locating fixtures, it eliminates high costs for custom-built dedicated jigs. Quickly reconfigure fixtures for small-medium sheet metal, prototype parts, batch fabrication, and cobot welding cells. Available in Q355 steel or HT300 cast iron, optional nitrided surface treatment for superior anti-spatter and wear resistance, fully compatible with international D16 standard accessories.
| Item | Specification |
|---|---|
| Hole Diameter | Φ16 mm, H7 tolerance: Φ16.065‑16.149 mm |
| Hole Center Distance | 50 × 50 mm, tolerance ±0.05 mm |
| Tabletop Material | Q355 Steel / HT300 High‑Strength Cast Iron; Optional Nitriding Treatment HV550‑900 for anti‑spatter & wear resistance |
| Tabletop Thickness | 14‑17 mm, bottom reinforcing ribs, stress‑relieved |
| Flatness | ≤0.1 mm /1000 mm |
| Static Load Capacity | Standard tabletop: 2 tons; Reinforced frame: 5 tons; Per‑leg load capacity: 900‑1000 kg |
| Compatible Fasteners | M12 Locking Bolts, Φ16 Locating Pins |
| Worktable Dimensions | Regular sizes: 1000×500 / 1200×800 / 1500×1000 / 2000×1000 / 2400×1200 mm, custom splicing supported |
| Working Surface | 5‑sided machined (top surface + four side faces), side faces for extended fixturing |
- High Positioning Accuracy: Repeat positioning accuracy ±0.05mm, ensuring consistent welding dimensions across multiple batches and reducing scrap due to welding misalignment.
- Modular Flexibility: One tooling set adapts to multiple workpieces; tooling changeover is completed in 10-15 minutes, eliminating the need for separately manufactured special fixtures, suitable for multi-variety, small-batch production.
- Five-Sided 3D Positioning: Fixtures can also be mounted on the side, enabling multi-angle, three-dimensional clamping; multiple tables can be spliced to produce large workpieces.
- Durable and Deformation-Resistant: Aging stress relief; nitrided version resists weld slag and is wear-resistant; steel welding tables offer better resistance to welding heat deformation.
- Internationally Compatible Standards: Compatible with European parts; mainstream export specifications; can be integrated with robotic welding workstations.
We provide accessory kits tailored for the D16 welding table, fitting different fixturing conditions. If you are unsure which accessories to choose, consult Amy, and our sales team will recommend the best‑fit solution for your application.
- The D16 system features a 50mm grid pattern with high hole density; localized heating of the tabletop causes concentrated thermal expansion. When welding thick plates, avoid keeping high-temperature weld seams in prolonged contact with the tabletop surface.
- Do not strike an arc directly on the tabletop surface, as this causes ablation of the surface and the inner walls of the positioning holes, leading to hole ovality and increased positioning clearance; always use grounding blocks or copper backing plates to isolate the workpiece from the tabletop.
- Uniform load capacity: The D16 welding table performs well under uniform loads; however, heavy point loads are strictly prohibited, as they can cause localized depressions and permanent loss of flatness.
- Thermal error: Do not measure dimensions immediately after high-temperature welding; allow the workpiece to cool to room temperature before re-measuring.
- Customizable Tabletop Dimensions: Non-standard lengths and widths available, up to a maximum of 4000 × 2000 mm; larger sizes utilize a modular splicing approach with multiple D16 welding table units rather than a single oversized slab (due to extreme difficulties in casting, heat treatment, and transportation).
- Surface Finish: Standard milled finish or gas nitriding (HV 550-900); high-hardness customization (up to HV 870) is available for mold steel substrates.
- Height Customization: Standard tabletop height is 850-900 mm; customizable within the 700-1050 mm range; optional hydraulic lifting leg kits available.
- Base Options: Simple legs, reinforced frame base, or mobile caster base.
- Fixture Package Customization: Options range from SET1 (Basic) to SET5 (Complete); the fixture BOM can be adjusted (items added or removed) based on the customer's specific workpiece and operational requirements.
- Marking: Laser marking of customer logos on tabletops and fixtures (common for export orders).
Estimated Lead Time: 15-20 working days for standard specifications; 20-30 working days for nitrided or large-scale non-standard welding tables.
If you have any questions about the D16 16mm Hole System Modular Welding Fixture Table Kit, including table configuration, accessory selection, splicing solutions or lead‑time, please send over your inquiry.
Contact Amy for personalized recommendations, and we will respond with a suitable proposal for your welding projects.
