1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-1t
Document
Product Name:
1 Ton Welding Positioner
Model:
1T Welding Positioner
Rated Load:
1000kg
Rotation Speed:
Variable Speed Adjustable
Rotation Angle:
0‑360° Rotary; Tilt 0‑120°
Control System:
Foot Pedal + PLC Control Box
Workpiece Clamping:
Equipped With Chuck Mounting Flange
Applicable Material:
Carbon Steel, Stainless Steel
Input Voltage:
380V 3‑Phase (custom 220V/415V Available)
Highlight:
1 ton welding positioner turntable
,automatic rotary welding turntable
,cylinder pipe welding positioner
Product Description

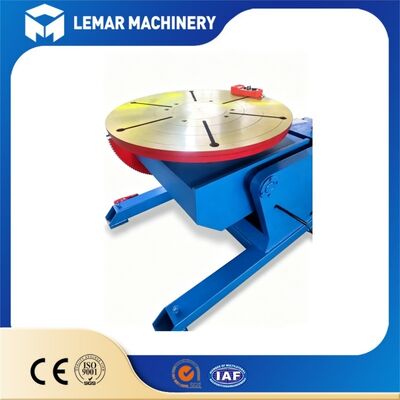

1 Ton Welding Positioner Automatic Rotary Welding Turntable for Cylinder Pipe Welding
Product Overview
The 1-ton welding positioner is compact automatic rotary welding equipment for small-size workpieces. It can rotate and tilt workpieces, keeping welding seams at ideal flat position. This equipment greatly improves welding quality and working efficiency, and is widely used for small cylinder, pipe, nozzle and shell circumferential welding. It can match 3-jaw /4-jaw welding chuck for stable workpiece clamping.
Working Principle
Workpiece is fixed on the turntable flange. Driven by motor and reducer, the table realizes 360° rotation and 0-120° tilting. Operators adjust rotating speed via control box or foot pedal. Workpiece turns automatically to place weld seam in down-hand welding position, reducing welding difficulty and manual labor.
Main Advantages
- Compact 1-ton load capacity: Light-duty structure for 1000kg workpiece, occupies small workshop space, easy to install and move.
- Rotating & tilting function: Realize multi-angle adjustment, keep weld seam in optimal welding position for nice weld bead.
- Flexible speed regulation: Stepless speed adjustment, adapt different pipe and cylinder welding requirements. Foot pedal for convenient on-site operation.
- Reserved chuck mounting flange: Directly fit 3-jaw or 4-jaw welding chuck for clamping round, square and irregular parts.
- Customizable configuration: Support different input voltage, modified flange size and special fixture according to your demands.
Technical Parameters
| Item | Specification |
|---|---|
| Product | 1 Ton Welding Positioner |
| Rated Loading Capacity | 1000kg |
| Turntable Rotation | 0-360°, stepless speed adjustable |
| Tilt Angle | 0-120 degree |
| Control Mode | Control box + foot pedal |
| Drive Type | Motor & reducer |
| Mounting Interface | Reserved flange for welding chuck |
| Input Power | 380V 3-Phase (custom voltage optional) |
| Application | Small cylinder, pipe, nozzle, shell circumferential welding |
Product Features
- Stable reducer drive, smooth running, low vibration during rotation.
- PLC control box together with foot pedal, simple operation for ordinary workers.
- Solid steel frame structure, good rigidity, long-time continuous working available.
- Reserved standard flange interface, convenient to install external welding chuck.
- Safe limit protection for tilting movement to avoid over-tilting risk.
Standard & Optional Accessories
| Standard Accessories (Included) | Optional Accessories (Extra Cost) |
|---|---|
| 1. Positioner main body | 1. 3-jaw welding chuck |
| 2. PLC control cabinet | 2. 4-jaw welding chuck |
| 3. Foot pedal controller | 3. Custom-made fixture |
| 4. Connecting cables | 4. Voltage conversion transformer |
| 5. Anchor bolts | 5. On-site commissioning service |
| 6. English operation manual |
Application Scope
- Small cylinder & barrel welding: Circumferential seam welding for small-size metal cylinders and storage shells.
- Pipe and nozzle welding: Pipe fitting, nozzle and flange circumferential welding.
- Mechanical part welding: Rotary welding for small-sized mechanical components.
- Stainless steel workpiece processing: Fit for stainless steel shell and vessel welding.
- Match with welding chuck: Work together with 3-jaw /4-jaw chuck to complete clamping-rotary welding workflow.
Frequently Asked Questions
Q1: What is the maximum loading weight?
A: Rated load is 1000kg, please do not overload.
Q2: Can it install 3-jaw or 4-jaw welding chuck?
A: Yes, reserved standard flange, compatible with our 3-jaw and 4-jaw chucks.
Q3: Can we change input voltage?
A: Yes, we can customize 220V,415V and other three-phase voltage.
Q4: Does it come with foot pedal?
A: Foot pedal is included in standard configuration for convenient operation.
Q5: What workpieces is this 1T positioner suitable for?
A: Mainly for small cylinder, pipe, nozzle and shell circumferential welding.
Welcome to Inquiry: Please tell us your workpiece weight, dimension and local voltage. We can offer suitable solution and competitive price.
