D28 Modular 3D Nitrided Heavy‑Duty Metal Welding Positioning Work Table
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
China
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Feature:
Anti-Deformation, Fast Positioning, Wear Resistant
Model:
D28 3D Flexible Welding Table
Hole Diameter:
28mm Standard D28 Hole
Application:
Steel Structure, Metal Frame, Auto Parts Welding
Matching Accessories:
Positioning Square, T-Clamp, Quick Lock
Optional Parts:
Mobile Casters, Height Adjustable Legs
Material:
HT300 Cast Iron And Q355 Steel
Surface Treatment:
Integral Nitriding
Flatness:
Tight Precision Flatness Tolerance
Highlight:
3D welding positioning table
,nitrided heavy-duty welding table
,modular metal work table
Product Description

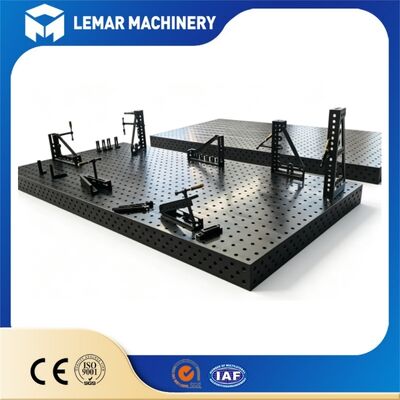

D28 Modular 3D Nitrided Heavy‑Duty Metal Welding Positioning Work Table
Product Overview
This D28 welding table is a heavy‑duty modular 3D positioning platform built for modern metal fabrication workshops. The tabletop adopts high‑strength Q355 steel with full nitrided surface treatment, equipped with standard D28 hole system at 100mm grid spacing. All matching fixtures are fully interchangeable, allowing users to assemble custom clamping layouts for diverse workpieces. It effectively cuts fixture preparation time and guarantees stable dimensional accuracy for batch welding jobs.
Core Features
- High rigidity Q355 steel structure effectively resists deformation under heavy‑load welding conditions
- Professional nitrided surface prevents welding spatter adhesion and extends service life
- Full five‑sided hole design supports multi‑direction clamping for complex 3D workpiece positioning
- All fixtures are fully interchangeable, greatly reducing repeated fixture manufacturing cost
- Strict CNC machining ensures stable flatness and consistent hole tolerance for assembly precision
- Flexible dimension customization is supported to fit different workshop production requirements
Product Specifications
| Item | Specification |
|---|---|
| Model | D28 Heavy‑Duty Modular Nitrided 3D Metal Welding Positioning Work Table |
| Hole System | D28, 28mm hole diameter, 100mm grid pitch |
| Raw Material | Q355 high strength steel |
| Surface Treatment | Plasma nitrided, anti‑spatter and wear‑resistant |
| Table Flatness | ≤0.03mm per meter |
| Standard Dimension | Custom available upon request |
| Matching Accessories | Complete fixture kits for optional selection |
| Warranty | 12 months for manufacturing defects |
Product Applications
- Automotive component fabrication: Position chassis parts, brackets and frame assemblies for welding and splicing work
- Machinery frame manufacturing: Fix thick steel structural frames during assembly and welding procedures
- Metal custom fabrication: Serve small‑batch custom welding of special‑shaped metal parts for job‑shop workshops
- New‑energy equipment production: Complete precise welding of equipment brackets and metal housing components
- Heavy hardware processing: Handle medium‑size heavy metal workpieces with reliable heavy‑load capacity
- Welding skill training: Act as standard modular jig platform for vocational welding training courses
Frequently Asked Questions
Q1: Can we get separate price list for individual fixtures?
A1: We do not provide separate price list for single fixtures. Complete fixture kit price sheets are available for your reference. You may find prices at the bottom of each kit document.
Q2: Is custom size available for this D28 welding table?
A2: Yes, custom dimensions are supported. Please share your target length width and thickness, we will check price and production lead‑time accordingly.
Q3: What is your minimum order quantity for custom non‑standard tables?
A3: Non‑standard custom items require relatively larger order quantity. As a gesture of thanks for your trust, 50 sets can be accepted for custom orders.
Q4: What is the surface hardness after nitrided treatment?
A4: The nitrided surface reaches HV400‑600 hardness, delivering good performance against welding spatter and surface wear.
Q5: What trade terms can you offer for shipment?
A5: We support EXW FOB CIF and DDP terms. Please advise your preferred destination port for us to calculate total cost.
Q6: How long will be the production lead‑time?
A6: Lead‑time depends on table dimensions and fixture quantities. Standard kits take around 25‑35 working days, custom items will be confirmed upon receiving your full specifications.
