50kg Rotary Welding Positioner Small Welding Turntable for Pipe Flange Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BY-50
Document
Model Number:
BY-50
Rated Horizontal Load:
50 Kg
Tilting Angle:
0°–90° Manual Tilt
Rotating Speed:
0.5–6 Rpm, VFD Stepless Regulation
Table Diameter:
Φ300mm
Optional Accessory:
3-jaw Chuck, Torch Holder
Control Mode:
Hand Control Box
Certification:
CE
Voltage:
220V / 380V Customizable
Highlight:
50kg rotary welding positioner
,small welding turntable for pipe
,flange circular welding fixture
Product Description

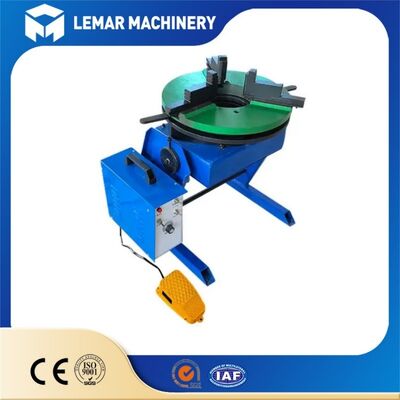

50kg Rotary Welding Positioner Small Welding Turntable for Pipe Flange Circular Welding
Product Overview
The compact 50kg welding positioner serves as lightweight rotary auxiliary equipment for small circular workpieces. It supports adjustable tilting angle and continuous variable rotation, allowing operators to complete circumferential welding at optimal posture. Widely adopted in small pipe fittings, flanges, valve parts and thin-wall cylinder batch welding.
Key Performance Features
- Mini compact layout, occupies little workshop floor space, easy to move and install
- 0-90° adjustable tilting table, self-locking worm gear structure for stable positioning
- VFD continuous speed adjustment, smooth rotation without shaking for high-quality circular seams
- Standard T-slots on turntable, convenient for fixture mounting; compatible with three-jaw chuck
- Low noise, stable drive system, suitable for long-hour light-duty continuous production
- Perfect match with TIG, MIG welding sources for small workpiece automatic girth welding
Main Technical Specifications
| Item | Specification |
|---|---|
| Model | BY-50 Welding Positioner |
| Rated Horizontal Load | 50 kg |
| Max Vertical Load | 25 kg |
| Tilting Range | 0° ~ 90° |
| Turntable Diameter | Φ300 mm |
| Rotation Speed | 0.5 ~ 6 rpm Stepless Adjustable |
| Control Mode | VFD Inverter + Hand Control Box |
| Working Voltage | 220V, Customizable for 380V |
Machine Structural Composition
- Rotary Turntable: Equipped with T-slots for flexible workpiece clamping
- Tilting Mechanism: Worm gear self-locking structure to fix arbitrary angles
- Driving Motor & Reducer: Deliver steady rotary power with low vibration
- Frequency Conversion Control Box: Realize forward/reverse rotation and speed adjustment
- Sturdy Base Frame: Integral welded construction to guarantee overall stability
Typical Application Fields
- Small pipe fitting and flange circular welding
- Valve body, hydraulic fitting and mechanical component fabrication
- Thin-wall cylinder, stainless steel small barrel girth welding
- Instrument housing and environmental equipment small parts welding
- Sample trial production and small batch workpiece processing
Certificates & Export Packing
- Qualification: CE certification available for customs clearance
- Packing: Main body wrapped with waterproof film; electrical components packed in export plywood case
- Transportation: Suitable for 20GP container shipment
Common Customer Queries
Q1: What is the maximum horizontal load capacity?
A1: Standard rated horizontal load reaches 50kg.
Q2: Can the table tilt freely?
A2: Tilting range 0°-90°, self-locking structure can hold any angle firmly.
Q3: Is rotation speed adjustable?
A3: Equipped with VFD drive, speed adjustable within 0.5-6 rpm.
Q4: Can it be equipped with lathe chuck?
A4: Yes, 3-jaw chuck is available as optional accessory.
Q5: Voltage options available?
A5: Standard 220V, support customized 380V power supply.
Q6: How long is the warranty period?
A6: 12-month whole machine warranty, wearing parts excluded.
