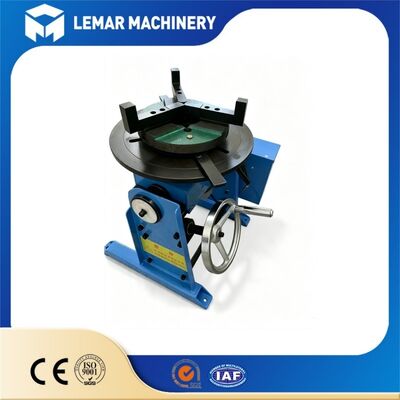

100kg Welding Positioner | Rotary Welding Turntable for Circular Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 65.00cm * 56.00cm * 64.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
100kg welding positioner turntable
,rotary welding turntable for circular welding
,welding fixture table positioner
This 100kg welding positioner is a compact rotary worktable designed for automatic circumferential welding of small cylindrical, disc and elbow workpieces. With stable variable frequency speed regulation and reliable tilting function, it greatly improves welding consistency and workshop efficiency, widely used in hardware, pipe fitting, pressure vessel accessory and mechanical component fabrication.
| Item | Technical Specification |
|---|---|
| Rated Load Capacity | 100kg |
| Turntable Diameter | 300mm |
| Rotation Speed | 0.2 ~ 2rpm, VFD stepless adjustable |
| Tilting Angle Range | 0° ~ 90°, electric automatic tilting |
| Rotation Motor Power | 0.37kW |
| Tilting Motor Power | 0.37kW |
| Standard Input Voltage | 220V Single Phase 50/60Hz |
| Optional Custom Voltage | 380V 3 Phase / 415V 3 Phase |
| Control Mode | Independent control box; optional foot pedal / wireless remote control |
| Turntable Structure | Cast steel turntable with standard fixture mounting holes |
| Applicable Workpiece | Cylinder, disc, flange, elbow, rotary parts |
| Applicable Welding Process | MIG / MAG / TIG / SAW / Plasma welding |
| Machine Color | Standard industrial blue/grey (customizable) |
Suitable for circular welding of carbon steel, stainless steel and alloy steel small workpieces:
- Pipe fittings, flanges, elbows, pipe connectors
- Small cylindrical shells, miniature tank and pressure vessel accessories
- Hydraulic parts, mechanical accessories, engine components
- Hardware structural parts, stainless steel decorative parts
- Factory direct supply, professional welding auxiliary machine manufacturer, stable quality and competitive price
- Strict quality inspection. Each unit will pass rotation, tilting and load test before shipment
- Good compatibility, can match all brands of automatic welding equipment
- Support global voltage customization for Australia, Middle East, Europe and Southeast Asia
- Complete after-sales service: English manual, installation guidance, lifelong technical support and spare parts supply
Fix the cylindrical, disc or elbow workpiece on the turntable through fixture or chuck. The frequency conversion motor drives the turntable to rotate at a constant and adjustable speed. The welding torch remains stationary while the workpiece rotates evenly, realizing continuous and uniform circumferential welding. The electric tilting system adjusts the workpiece angle freely, enabling welders to operate at the best visual and working position, greatly improving welding efficiency and finished product qualification rate.
