Modular D28 Welding Table with Flexible Clamping Options
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Diameter:
Φ28 mm (H7 Precision Tolerance)
Main Grid Pitch:
100 × 100 mm
Side Hole Pitch:
50 mm Staggered Multi‑row Holes
Tabletop Thickness:
25mm
Table Body Height:
200 mm (excluding Legs)
Flatness Tolerance:
±0.1 mm / 1000 mm
Hole‑to‑hole Position Tolerance:
±0.05 mm
Five‑sided Perpendicularity:
≤0.1 mm / 1000 mm
Stress Relief:
Full Artificial Stress‑relieved Annealing 580‑650℃
Highlight:
Modular D28 welding table with clamps
,Flexible clamping welding fixture table
,D28 modular welding table with warranty
Product Description

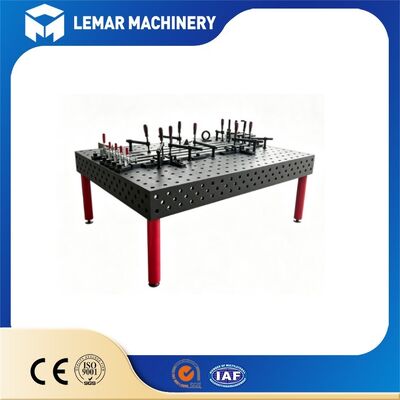

Modular D28 Welding Table with Flexible Clamping Options
Eliminate expensive custom-built jigs with our Modular D28 Welding Table with Flexible Clamping Options. This industrial-grade 3D welding platform features a five-sided hole layout to realize 3-dimensional clamping for frames, pipes, cabinets and heavy structural parts.
Stress-relieved base, precise CNC machining and hard nitrided surface guarantee long-term accuracy even under continuous welding heat and heavy loads. Fully modular design allows table expansion and interchangeable D28 clamping components, helping your workshop switch between different workpieces within minutes. Well suited for job shops, fabrication factories and automated robot welding stations.
Modular Design Characteristics
- Modular Expandability: Multiple tabletop units can be joined to form a large platform for welding oversized frameworks, or separated for use at different workstations.
- Modular Leg Options: A range of leg options including standard fixed legs, adjustable leveling legs, mobile caster legs, and hydraulic lifting legs are available with quick assembly/disassembly.
- Elimination of Custom Tooling: Traditional welding often requires custom-made fixtures; the D28 modular welding table relies on reconfiguration of standard modules, significantly reducing tooling costs for small-batch production and cutting changeover times from days to minutes.
Tabletop Structural Details (3D, Usable on Five Sides)
- 5-Face System (3D Core): D28 holes are machined on the top surface and all four vertical sides; side faces feature three rows of holes, allowing workpieces to be mounted flat, vertically, or clamped from the side for 3D fixturing.
- Positioning holes are precision-machined directly into the body without press-in bushings; hole edges are chamfered for smooth insertion and removal of locking pins.
- Table edges are chamfered to prevent injury and avoid accumulation of welding spatter.
- A grid of reinforcing ribs on the underside evenly distributes loads; local deformation ≤0.5 mm under concentrated load of 2 tons.
- Standard table height: 200 mm (excluding legs).
Application Scope
- MIG/MAG, TIG, and manual arc welding; robotic automated welding workstations (D28 welding tables are the industry standard for robotic welding fixtures in Europe and the US)
- Assembly, inspection, marking, grinding, alignment, and prototype fabrication
- Industries: Construction machinery frames, trailer chassis, rail transportation, steel structures, agricultural machinery, new energy equipment frames, pressure vessel frameworks, and large-scale enclosures and cabinets
Service Support
- Packaging: Fumigation-free solid wood crates suitable for ocean export; protective boards cover the tabletop, fixtures individually compartmented
- Weight Reference: 1000×2000 HT300 D28 welding table gross weight approximately 660-700 kg; classified as heavy cargo suitable for sea freight. Trade terms: FOB, CIF, DDU, or DDP
- Lead Time: 10-15 working days for standard sizes; 20-30 working days for large-scale modular custom builds
- Warranty: 1-year warranty on main unit against manufacturing defects (excluding man-made damage); fixtures and locking pins considered consumables. Online technical support provided for tooling configuration and leveling guidance
