Industrial D16 welding table with 1200x1000mm table top and 150mm height
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200m |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 welding table 1200x1000mm
,industrial welding fixture table 150mm height
,welding table with large table top

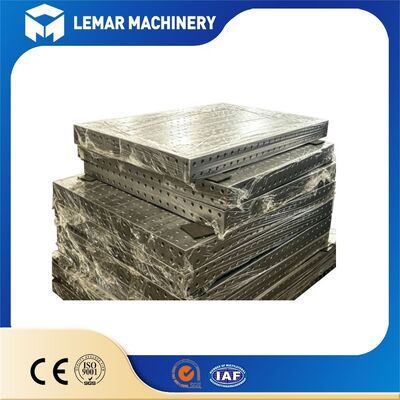

The D16 3D Flexible Welding Table 1200 × 1000 mm with 150 mm side wall height is a high-precision modular fixture platform designed for accurate positioning and assembly of medium-small welding workpieces. Adopting D16 Φ16 mm locating hole system with 50×50 mm standard grid, the table integrates five-sided CNC machined surfaces, enabling multi-direction clamping on top and four vertical side faces.
Processed with artificial aging stress relief and plasma nitriding hardening treatment, the table body effectively avoids long-term deformation and delivers excellent anti-spatter and wear-resistant performance. All locating holes are precision-reamed to D10 tolerance, fully compatible with worldwide D16 standard clamps, locating pins and positioning blocks.
Please note: This is a table-body-only offer; support legs and tooling accessories require separate purchase. Widely adopted for metal fabrication, chassis manufacturing, tubular parts processing and robotic welding stations.
| Item | Technical Specification | Remarks |
|---|---|---|
| Tabletop Flatness | ≤0.1 mm /1000mm | Max allowable error 0.12mm for full 1200×1000 table |
| Center-to-center Distance of Adjacent Holes | ±0.05 mm | 50mm grid pitch |
| Cumulative Hole Spacing Error | ≤0.1mm/1000mm | No progressive deviation over long distances |
| Perpendicularity Between Side Faces & Tabletop | ≤0.1mm/200mm | Guarantees right-angle accuracy for side-clamped workpieces |
| Hole Diameter | Φ16.065-16.149 mm | Compatible with standard D16 locating pins |
| Perpendicularity of Holes To Tabletop | ±0.03mm | Prevents tilted insertion of locating pins |
- D16 Hole Diameter: Φ16.065-16.149 mm (D10 tolerance)
- Grid: 50 mm × 50 mm; adjacent hole spacing tolerance of ±0.05 mm with no cumulative error; holes on all five faces machined in a single setup using a gantry CNC machine
- Locating pins, squares, and clamps comply with ISO/DIN industry standards and are compatible with fixtures from major European brands, avoiding reliance on accessories from a single manufacturer
- Positioning Components: D16 locking positioning pins, zero-point stops, 90° positioning squares, V-blocks, angle positioners
- Clamping Components: Manual quick-action clamps, screw clamps, pneumatic clamps
- Support Components: Adjustable support blocks, riser blocks, support pillars
- Connecting Components: Connecting pins, connecting plates
- Accessories: Lifting eyes, protective covers, robot adapter bases
Looking for a reliable modular fixturing solution for your workshop?
Our D16 3D Flexible Welding Table 1200 × 1000 mm, 150 mm Side Wall Height can be matched with various D16 clamps, locating pins and support legs according to your actual demands. Drop us an inquiry now to get your competitive offer.
