1 Ton Welding Positioner for Pipe, Flange & Small Vessel Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 74.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
Hbj-10y
Document
Rated Horizontal Load:
1000kg
Type:
Welding Turntable
Max Eccentricity Distance:
200mm
Tilting Angle:
0-120°
Control Way:
Remote Hand Control + Foot Pedal
Voltage:
380V
Welding Tilter Type:
Flexible Combination
Condition:
New
Product Model:
Hbj-10y
Highlight:
100mm pipe welding positioner
,250kg vertical loading positioner
,rotary welding positioner for precise tasks
Product Description

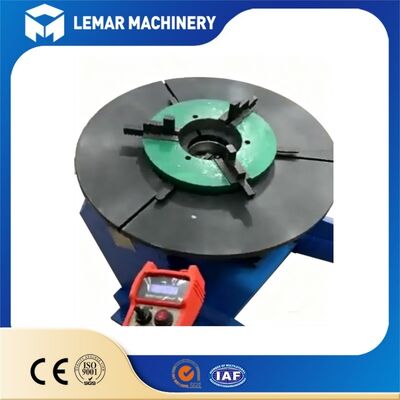

1 Ton Welding Positioner for Pipe, Flange & Small Vessel Circumferential Welding
Product Overview
This 1-ton welding positioner is heavy-duty rotary welding auxiliary equipment, designed for medium circular workpieces. It tilts and rotates workpieces continuously to achieve ideal welding posture for circumferential seams. Widely adopted in pressure vessel workshops, pipe fitting factories, metal fabrication and engineering machinery manufacturing. It effectively reduces welding labor intensity and guarantees uniform welding quality.
Core Advantages
- Rated horizontal load: 1000kg, vertical load: 500kg
- Worm & worm gear driving structure, self-locking after angle adjustment, safe and reliable
- 0-10rpm stepless adjustable rotating speed, stable rotation, low vibration
- Large central through hole, suitable for long pipe penetration welding
- Large slotted rotary table, flexible for clamping fixtures and workpieces
- 0-90° manual tilting angle, meet multi-angle welding requirements
- Optional self-centering welding chuck, torch holder, foot switch and remote controller
- Robust thickened steel frame, durable for long-time continuous workshop operation
Optional Configuration
Customers can select matching accessories according to actual production demands:
- Self-centering welding chuck for quick clamping of round workpieces
- Welding torch stand to realize automatic circular welding
- Foot pedal switch for hands-free operation
- Wireless remote controller for convenient on-site operation
- Variable frequency control system for more stable rotation
- Custom widened rotary table, customized hole layout
Technical Parameters
| Item | Specification |
|---|---|
| Model | 1 Ton Welding Positioner |
| Horizontal Rated Load | 1000 kg |
| Vertical Rated Load | 500 kg |
| Rotary Table Diameter | 800 mm |
| Central Through Hole | 160 mm |
| Rotating Speed | 0-10 rpm, stepless adjustable |
| Tilt Range | 0°-90° (Manual Tilting) |
| Main Motor Power | 1.5 kW |
| Power Supply | 380V 3 Phase (220V Optional) |
| Optional Matching Chuck | K1000 Self-centering Welding Chuck |
Application Scope
Suitable for circumferential seam welding of workpieces as below:
- Pipe fittings, flanges and pipe spools
- Small stainless steel pressure vessels & cylinders
- Elbows, tank heads and rotary hardware parts
- Engineering mechanical circular components
- Boiler and pipeline accessory workpieces
Frequently Asked Questions
Q1: What is the maximum workpiece weight this 1 ton positioner can bear?
A1: Horizontal rated load is 1000kg; vertical load is 500kg. Please note that the load capacity depends on the workpiece gravity center. If the center is far from the table surface, the allowable weight will decrease.
Q2: Can I equip a welding chuck on the rotary table?
A2: Yes. The slotted rotary table supports installation of K1000 self-centering welding chuck. We can supply the chuck as optional accessory.
Q3: Is rotating speed adjustable?
A3: The rotation speed ranges from 0-10 rpm with stepless speed regulation, stable operation for circumferential welding.
Q4: Can the tilt angle be locked?
A4: Adopt worm & worm gear structure with self-locking function. After adjusting the tilt angle from 0° to 90°, the machine stays fixed safely.
Q5: What power supply is available?
A5: Standard power supply is 380V 3-phase. 220V single-phase power can be customized upon request.
Q6: Can it match a welding torch holder for automatic welding?
A6: Yes. Welding torch stand, foot switch and wireless remote controller are optional configurations.
