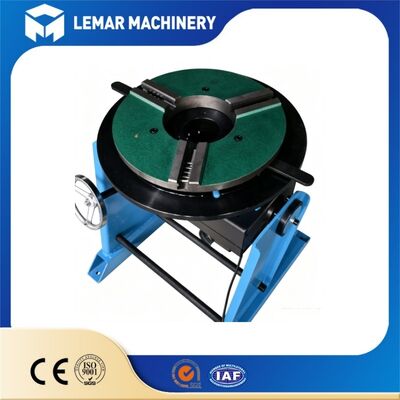

30kg Welding Positioner Small Rotary Welding Turntable for Pipe & Flange Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
30kg Welding Positioner
Document
Model NO.:
30kg Welding Positioner
Max Eccentricity Distance:
150mm
Rotaion Speed:
0.05-0.5rpm
Work For:
Tank Seam Welding Turning Table
Tilting Angle:
0-90°
Welding Chuck:
3 Three-Jaw
Optional:
TIG MIG Mag Welder
Rotary Motor:
80W
Table Diameter:
12 Inches
Highlight:
1000mm rotary welding positioner with 45mm center hole
,0.75 kw tilting power welding positioner
,rotary welding positioner for welding performance
Product Description
1000MM Worktable Diameter Rotary Welding Positioner
Product Overview
This 30kg welding positioner is compact rotary welding equipment, widely used for circular workpieces such as pipes, flanges, small cylinders and elbows. It can rotate workpieces steadily to realize horizontal circumferential welding, greatly reduce labor intensity and improve welding quality.
Suitable for small welding workshops, metal fabrication factories and engineering processing.
Key Features
- Max Load Capacity: 30kg, ideal for small round workpieces
- Stepless speed regulation, stable rotation, low noise
- Large central hole design, convenient for long pipe penetration welding
- Equipped with self-centering welding chuck for fast clamping
- Adjustable tilt angle, flexible to meet various welding angles
- Compact body, small floor space, easy to move and install
- Can be matched with welding torch stand for automatic circular welding
Technical Specifications
| Item | Specification |
|---|---|
| Model | 30kg Welding Positioner |
| Horizontal Rated Load | 30 kg |
| Vertical Rated Load | 15 kg |
| Table Diameter | 310 mm |
| Central Through Hole | 65 mm |
| Rotating Speed | 1-15 rpm, stepless adjustable |
| Tilt Range | 0°-90° (Manual Tilt) |
| Motor Power | 60 W |
| Power Supply | 220V Single Phase (380V Optional) |
| Standard Matching Chuck | KP200 Self-centering 3-jaw Chuck |
Applications
Suitable for circumferential and partial welding of below workpieces:
- Pipe fittings & connecting flanges
- Small stainless steel cylinders
- Pipe elbows & pressure vessel small parts
- Round hardware components
- Automotive circular workpiece parts
Packaging & Delivery
Packing: Standard export plywood wooden case
Available Trade Terms: EXW / FOB / CIF / DDP
Support customized configuration: welding torch stand, foot switch, remote controller
Why Choose Lemar Machinery
- Wuxi factory direct supply, available CE certification
- Full inspection before packing to guarantee stable performance
- Complete spare parts long-term supply
- Professional technical guidance and after-sales support
- Accept personalized modification according to your workshop requirements
