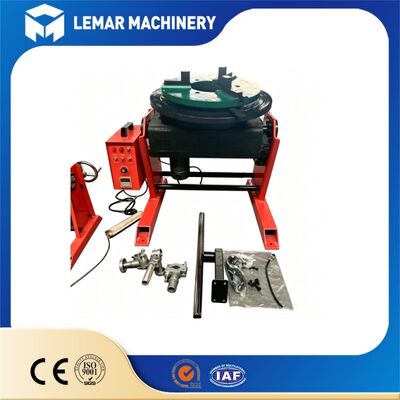

Small 300kg Welding Positioner Machine for Elbow, Flange and Cylinder Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 50.00cm * 47.00cm * 42.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
small welding positioner machine
,300kg welding positioner for elbow
,rotary welding positioner for flange
Product Description:
WUXI LEMAR 300kg Rotary Welding Positioner is medium-load welding auxiliary equipment widely used in metal fabrication workshops. It features 360° full rotation of the worktable, enabling operators to access every welding position of workpieces without frequent re-clamping. Equipped with a 1000mm diameter worktable, it provides sufficient space for fixing cylindrical parts, flanges, small tanks and pressure vessels.
Adopting frequency speed regulation, the machine runs smoothly with stable rotation, effectively guaranteeing consistent circumferential welding quality and reducing welding defects. The solid mechanical structure ensures outstanding stability during long-time continuous operation.
Features:
- Product Name: Rotary Welding Positioner
- Worktable Diameter: 1000MM
- Turning Speed Range: 0.05-0.5 RPM
- Table Diameter: 360mm
- Gravity: ≤100 Mm
- Center Hole Diameter: 45mm
- Includes 3-Jaw Chuck Positioner for secure workpiece clamping
- Designed as a Flange Welding Positioner for precise flange alignment
- Functions as a Tilting Welding Positioner to facilitate welding at various angles
Technical Parameters:
| Condition | New |
| Worktable Diameter | 1000MM |
| Center Hole Diameter | 45mm |
| Hydraulic Pump Pressure | 20MPa |
| Application | Tank Seam Welding Turning Table |
| Tilting Power | 0.75 Kw |
| Rotary Angle | 360° |
| Gravity | ≤100 Mm |
| Benefits | Low Maintenance Cost |
| Table Diameter | 360mm |
Applications:
- Advanced multi-functional welding auxiliary equipment to upgrade welding efficiency and machining precision.
- Adopts AC inverter speed regulation, delivering smooth and adjustable rotation for precise welding control.
- Supports 360° full rotation; optional tilting structure for flexible adjustment of workpiece angles.
- Equipped with 360mm diameter worktable, suitable for multiple industrial welding scenarios.
- Works excellently as a dedicated pipe welding positioner, rotating pipes steadily and avoiding manual re-clamping.
- Greatly improves weld quality and eases operator fatigue, widely used in oil & gas, construction and shipbuilding industries.
- Tilting function handles complex welding work for auto parts, heavy machinery and metal structural components.
Customization:
WUXI LEMAR offers a high-quality 300kg Welding Positioner designed to enhance your welding operations. This Pipe Welding Positioner is specifically engineered for tank seam welding turning tables, providing precise and efficient positioning to ensure optimal weld quality. With a tilting power of 0.75 Kw and a rotate speed of 70 degrees per second, this Foot Control Welding Positioner allows for smooth and accurate adjustments during welding processes. Manufactured in CHINA, the 300kg Welding Positioner features a gravity of ≤100 mm, ensuring stability and reliability in various welding applications. This new model combines advanced technology and robust construction to meet the demanding requirements of professional welders.
Support and Services:
- This rotary welding positioner delivers smooth, adjustable workpiece rotation to improve welding efficiency and precision. Please follow the guidelines below to maintain stable performance and extend service life.
- Installation and Setup: Mount the positioner on a stable, level base. Check all mechanical and electrical connections to meet factory specifications. Proper workpiece alignment is required to guarantee precise welding outcomes.
- Operation: Run the machine within the rated load and rotational speed range. Adjust rotation speed and direction via the control panel. Strictly follow safety standards to avoid operational accidents.
- Maintenance: Carry out routine maintenance regularly. Lubricate movable components according to the user manual. Periodically inspect the drive system, electric parts and frame for wear and damage; replace faulty components in a timely manner.
- Troubleshooting: Abnormal rotation, strange noise or control failure can be preliminarily checked by verifying power supply, wiring and parameter settings. Refer to the manual for instructions. Contact our technical team if faults remain unsolved.
- Spare Parts and Accessories: Only adopt original manufacturer-approved spare parts and attachments to preserve equipment performance and valid warranty. Source parts via authorized channels.
