100kg Welding Positioner Turning Table for Pipe and Small Vessel Circumferential Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 55.00cm * 59.00cm * 65.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-10
Document
Model NO.:
BWJ-10
Rotaion Speed:
0.05-0.5rpm
Max Eccentricity Distance:
150mm
Tilting Angle:
0-90°
Voltage:
110V/220V
Max Loading Weight:
1000kg
Work Table Size:
900mm
Welding Rated Current:
300A
Tilting Power:
0.42rpm/Min
Highlight:
100kg welding positioner table
,pipe circumferential welding positioner
,small vessel welding turning table
Product Description

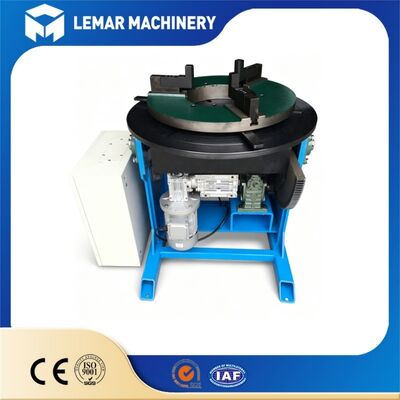

100kg Welding Positioner Turning Table for Pipe and Small Vessel Circumferential Welding
Product Overview
BWJ-100 welding positioner is a compact rotary welding turntable that can tilt and rotate workpieces flexibly, keeping welding seams in flat position to improve welding quality and working efficiency. Widely applied for flanges, pipe fittings, small tanks and stainless steel workpieces circumferential welding. Custom service is available upon request.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | BWJ-100 |
| Horizontal Rated Load | 100 kg |
| Vertical Allowable Load | 50 kg |
| Tilting Range | 0-90° |
| Tilting Type | Manual Tilting |
| Rotation Speed | 0.5-5 rpm |
| Table Diameter | Φ360 mm |
| Central Hole Diameter | Φ65 mm |
| Motor Power | 120 W |
| Input Voltage | AC220V 50Hz |
| Optional Voltage | 110V |
| Control Mode | Frequency Conversion |
| Operation Accessory | Foot Pedal Switch |
| Table Structure | T-slot Worktable |
| Tilting Mechanism | Worm Gear Self-locking |
| Applicable Welding | Circumferential Welding |
| Protection Class | IP54 |
| Certification | CE, ISO9001 |
Product Features
- Horizontal Rated Load: 100 kg, vertical allowable load up to 50 kg
- 0-90° manual tilting with worm gear self-locking structure, no slipping
- 0.5-5 rpm frequency stepless speed control, stable low-speed operation
- Rotary table equipped with T-slots and central through hole for pipe penetration welding
- Standard configuration with foot pedal switch to free operators' hands
- Compact and lightweight overall structure, convenient for workshop movement
Application Industries
- Stainless steel processing factory: small storage tanks, pipe fittings, connecting flanges, thin-wall cylindrical workpieces
- Hardware manufacturing plant: disc components, valve bodies, small cylinder structural parts
- Equipment production workshop: laboratory vessels, filter barrels, mini pressure vessels
- Pipeline processing workshop: pipe elbows, short pipe sections for circumferential seam welding
- Custom metal processing: metal crafts and rotary welded structural components
After-sales Service
- One-year warranty for the whole machine; key components including rotation motor and frequency inverter enjoy a 2-year warranty period
- 24-hour online technical support via WhatsApp and Email for operational and technical questions
- Free English version operation manual with remote video guidance for installation, debugging and operation
- Spare parts supplied at factory cost price after warranty period expires
- Professional troubleshooting guidance for common failures during daily workshop operation
- Long-term technical archives maintained for each equipment set for follow-up service support
Frequently Asked Questions
What is the horizontal rated load of this welding positioner?
The horizontal rated load is 100kg, and the vertical allowable load is 50kg.
What is the tilting range of the turntable?
The tilting range is 0-90°, adopting manual worm gear tilting with self-locking function.
What is the adjustable rotation speed?
Rotation speed ranges from 0.5 rpm to 5 rpm with frequency stepless control.
Can pipes pass through the worktable for through welding?
Yes. The worktable is designed with a Φ65mm central through hole suitable for pipe penetration welding.
Does the standard set include a foot pedal switch?
Yes, the foot pedal switch is provided as standard for hands-free operation.
Is the three-jaw welding chuck included?
The 3-jaw chuck belongs to optional accessory, you can place an additional order if required.
