100kg Welding Positioner Rotary Turning Table Small Workpiece Welding Positioner
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 50.00cm * 47.00cm * 42.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-10
Document
Model NO.:
BWJ-10
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Horizontal Loading Weight:
100kg
Rotation Speed:
0.5-5rpm
Worktable Diameter:
400mm
Speed Mode:
AC Frequency
Table Height:
520mm
Pedal Switch:
Yes
Highlight:
100kg welding positioner rotary table
,small workpiece welding positioner
,rotary turning table with warranty
Product Description

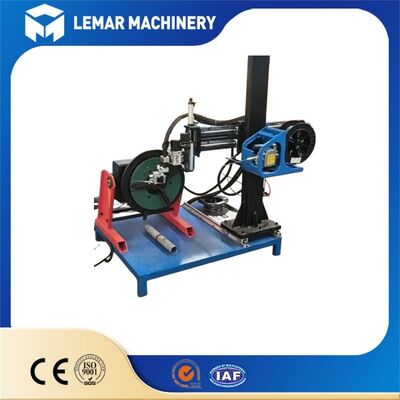

100kg Welding Positioner Rotary Turning Table
Product Overview
Our 100kg welding positioner is light-duty rotary welding equipment designed for circumferential welding of small pressure vessels, pipe flanges, stainless steel barrels, elbows, and hardware components.
Equipped with a variable frequency drive system, the rotary speed can be adjusted smoothly. Operators can maintain welding in flat position effectively, eliminating the need for overhead welding. This compact welding positioner requires minimal space and is ideal for small batch production workshops.
Technical Parameters
| Item | Specification |
|---|---|
| Rated Load | 100 kg |
| Rotating Range | 360° Continuous Rotation |
| Rotary Speed | 0.1-2 rpm, stepless adjustable |
| Standard Chuck | 3-jaw self-centering chuck |
| Control Mode | VFD frequency control |
| Operation Mode | Control box / Optional foot pedal switch |
| Working Voltage | 380V 3 Phase (220V/415V customizable) |
| Rotating Direction | Forward & Reverse |
| Structure Type | Horizontal rotary type |
Main Features
- Rated load capacity 100kg, compact body, easy to move and install
- VFD stepless rotary speed regulation, stable low-speed operation
- 360° continuous clockwise & counter-clockwise rotation
- Standard three-jaw chuck for clamping round workpieces; customized fixture available
- Simple control panel, optional foot switch for hands-free operation
- Low noise, stable transmission, convenient daily maintenance
- Customizable working voltage for global markets
Quality Control Process
- Raw material inspection for steel structure, motor and electrical components
- Frame machining and assembly dimensional inspection
- Complete machine assembly and debugging
- Continuous load aging test
- Surface anti-rust paint treatment
- Final function inspection and trial operation
- Standard export moisture-proof packaging
Operation Steps
- Fix the workpiece firmly on the three-jaw chuck
- Set suitable rotary speed on control panel
- Start rotation, begin circumferential welding
- Adjust speed during welding according to welding requirement
- Stop equipment and unload workpiece after welding
Safety Tip: Do not place hands near rotating workpiece during operation.
Frequently Asked Questions
Q1: What is the maximum bearing capacity of this welding positioner?
A1: Rated load is 100kg. Please note the workpiece eccentric weight, eccentric load will reduce the actual bearing capacity.
Q2: Can it be equipped with a foot pedal switch?
A2: Yes, foot pedal control is optional, which allows operators to control rotation without hands.
Q3: Can you customize the chuck size and special fixtures?
A3: Sure. We can supply larger three-jaw chucks or non-standard fixtures according to your workpiece size.
Q4: Is the tilting function available for this model?
A4: The standard version is horizontal rotary type. The tilting function can be made as customized option.
Q5: What is your warranty policy?
A5: One-year warranty for motor, inverter and reducer (excluding wearing parts). Operation manual, wiring diagram and online technical guidance are provided.
Product Summary
This 100kg welding positioner is a compact rotary turning table for small cylindrical parts, flanges and pipe fittings. It provides 360° continuous rotation with VFD adjustable speed. The workpiece can be rotated to the optimal welding position to reduce labor intensity and improve weld quality. Features include compact structure, easy operation and CE certification availability. Custom chuck, tilting function and voltage configurations are supported.
