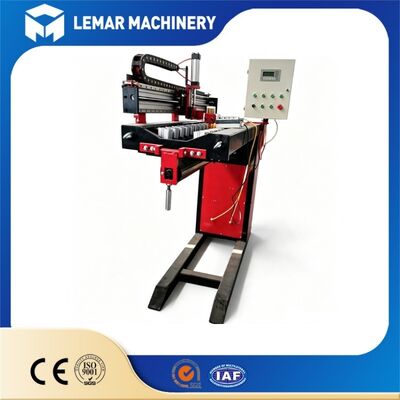

1000mm Longitudinal Seam Welding Machine Cylindrical Shell Straight Seam Welder
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 100.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
Zfh-1000
Document
Model NO.:
ZTH-1000
Frequency Range:
High Frequency
Product Name:
1000mm Longitudinal Straight Seam Welding Machine
Effective Welding Stroke:
TIG MIG Laser Compatible
Max. Inner Diameter Of Workpiece:
800mm
Min. Inner Diameter Of Workpiece:
95mm
Effective Welding Length:
1000mm
Control Unit:
PLC + 10-Inch Digital Touch Screen
Highlight:
1000mm longitudinal seam welding machine
,cylindrical shell straight seam welder
,welding fixture table with warranty
Product Description
1000mm Longitudinal Seam Welding Machine Cylindrical Shell Straight Seam Welder
Product Overview
This 1000mm longitudinal seam welding machine is specifically designed for straight seam welding of cylindrical shells, stainless steel barrels, ventilation ducts, and pressure vessel sections. It features a fixed welding torch with movable workpiece structure and supports TIG, MIG, and PAW welding methods. Precise seam positioning ensures consistent welding quality, with custom clamping length, welding power, and automation functions available.
Main Features
- Effective welding length of 1000mm, specially designed for cylindrical shell straight seam welding
- Pneumatic clamping mechanism for fast positioning and low deformation on thin and medium plates
- Precision linear guide structure for stable operation and straight, smooth welding seams
- Supports TIG, MIG, and Plasma welding power sources for different metal materials
- Adjustable welding speed with easy operation, suitable for mass production of cylindrical workpieces
- Safety protection design with optional automatic arc starting and closing control
Technical Specifications
| Item | Specification |
|---|---|
| Effective Welding Length | 1000 mm |
| Applicable Plate Thickness | 0.3-6 mm (depends on welding power) |
| Applicable Workpiece | Cylindrical shell, straight barrel, flat plate |
| Clamping Mode | Pneumatic clamping |
| Driving System | Variable speed motor + linear guide |
| Welding Method | TIG / MIG / Plasma welding (optional) |
| Working Voltage | 380V 3 Phase (Customizable 220V / 415V) |
| Control Mode | Digital speed adjustment |
Welding Sample Performance
This 1000mm longitudinal seam welding machine delivers uniform and smooth weld beads with typical welding samples including:
- Stainless steel cylindrical shell - full penetration, no undercut, smooth inner and outer weld surfaces
- Thin carbon steel air duct - low deformation with consistent seam forming
- Aluminum alloy barrel - stable arc with clean weld appearance
- Pressure vessel section - reliable penetration quality meeting industrial standards
Quality Assurance
- 10+ years focused on automatic welding equipment manufacturing
- Self-owned factory with complete machining and assembly workshop
- Strict QC process with each machine tested before delivery
- CE certified products compliant with European market requirements
- Professional technical team with fast after-sales response within 24 hours
- Customization available for voltage, welding length and automation level
Frequently Asked Questions
What kinds of materials can the 1000mm longitudinal seam welding machine weld?
It supports stainless steel, carbon steel, and aluminum alloy. You can match TIG, MIG, or plasma welding sources according to your plate thickness and material requirements.
Can this straight seam welder be used for cylindrical shell longitudinal welding?
Yes. It is widely applied for longitudinal seam welding of cylindrical shells, barrels, and tubular workpieces. We can provide matched internal support tooling as required.
Is the effective welding length customizable?
Yes. We supply longitudinal seam welders with 600mm, 1000mm, 1500mm, and 2000mm effective welding lengths for selection. Custom lengths are negotiable.
What optional upgrades are available for this machine?
We provide plasma welding systems, automatic arc length tracking, touch screen controls, extended clamping fixtures, and welding fume extraction devices for optional configuration.
What is your warranty and after-sales service?
We offer a one-year warranty for core motors and electrical components (excluding wearing parts). Operation manuals, wiring diagrams, test videos, and online technical guidance are provided continuously.
