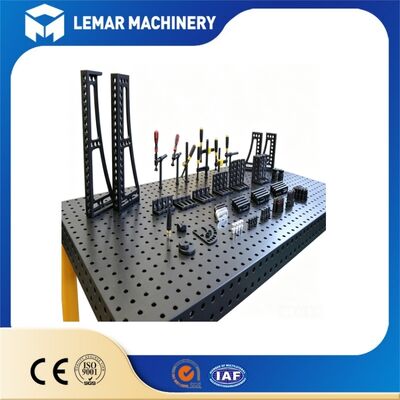

Solid D16 3D Welding Table for Metal Manufacturing Shops
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Model NO:
D16
Diameter:
16mm
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Flatness:
≤0.1mm/1000mm
Thickness:
12mm
Working Face:
5-Sided Precision Machining
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Verticality:
≤0.1mm/200mm
Production Capacity:
50000PCS/Year
Highlight:
D16 3D welding table
,welding table for metal shops
,solid 3D welding table
Product Description
Solid D16 3D Welding Table for Metal Manufacturing Shops
Our Solid D16 3D Welding Table is a robust modular work platform designed for daily‑intensive operations inside metal manufacturing shops. Built with thick high‑strength carbon steel, this 3D fixturing table adopts standard D16 hole grid layout to accommodate various positioning jigs, support blocks and clamps. Its rigid body structure prevents bending under regular workshop loads. The tabletop can be processed with nitrided treatment to enhance wear performance against welding spatter and repeated clamping friction. It enables flexible multi‑angle workpiece setup, improves working efficiency, and brings stable performance for medium‑duty manual and semi‑automated metal manufacturing processes.
Product Specifications
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 cast iron/Q355 Steel |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Standard Sizes | 1000×750, 1200×800, 1500×1000mm |
| Working Height | 820mm (custom available) |
Key Features
- Precision machining guarantees stable and accurate workpiece positioning in every welding cycle
- Nitrided working surface achieves excellent wear resistance for long-term daily operation
- Thickened steel structure effectively avoids structural deformation under heavy workpiece load
- Standard D16 hole system supports quick assembly of various clamps and positioning tools
- High flatness tabletop helps form neat and uniform welding seams for finished products
- Modular layout allows flexible adjustment to match diversified welding project demands
Applications
- Heavy machinery component welding in industrial manufacturing workshops
- Custom metal fabrication for engineering construction projects
- Batch workpiece welding in automobile accessory production lines
- Assembly welding of pipeline frames and structural steel parts
- Prototype trial welding for mechanical research and development teams
- On-site welding tasks for shipbuilding and equipment maintenance scenarios
Frequently Asked Questions
Can this D16 bench match welding fixtures purchased from other overseas suppliers?
Yes. The standard D16 hole design fits most mainstream D16 series fixtures sold worldwide for direct installation.
What is the service life of the nitrided working surface under normal working conditions?
The high-hardness nitrided layer resists indentation and abrasion, supporting several years of frequent industrial use with stable performance.
Can you provide customized bench sizes according to our workshop space?
Custom dimensions are supported. Share your target length width and height requirements with our sales team for tailored solutions.
Will you update production progress regularly after we place the official order?
Our team will send periodic production updates including packing photos, crate weight and outer dimensions before shipment arrangement.
