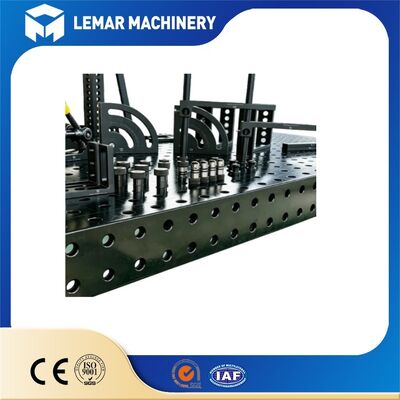

1000x1000mm D16 welding table with 5 axis machined surfaces
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units |
1000x1000mm D16 welding table
,5 axis machined welding table
,welding fixture table with D16 steel
Searching for high-precision small-size 3D welding tables for precision parts? Our 1000×1000mm D16 welding table with fully 5 axis machined surfaces is your ideal choice.
One clamping for 5 working surfaces eliminates offset errors between top and side holes. Dense 50×50mm D16 locating holes allow multi-point clamping for thin metal and tiny fabrications. Two material grades for different production scenarios, complete modular fixture system, multiple base upgrades and full export service for worldwide metalworking factories.
- Machine five faces in a single setup with exceptional precision consistency - Standard 3-axis machines can only mill the top surface individually, requiring the workpiece to be flipped to machine the four side faces; multiple setups introduce errors in perpendicularity and hole positioning. In contrast, the 5-axis machine features a 360° rotating table that mills the top and all four vertical sides in one go, ensuring a unified coordinate datum and eliminating misalignment during cross-face fixture mounting.
- Interference-free 3D fixturing - Featuring high-precision vertical hole patterns on all four sides, the system allows for the direct mounting of vertical components, frame-type parts, and bent sheet metal on the sides. This eliminates the need for extra riser blocks and significantly reduces fixture setup time.
- Long-term precision stability - Uniform milling across all five faces relieves internal material stress, ensuring the table resists warping or deformation caused by high welding temperatures or heavy loads, while maintaining repeatable positioning accuracy for years.
- Fully interchangeable accessories - Compatible with all standard D16 fixtures on the market (such as angle squares, support blocks, quick-action clamps, and extension blocks), these accessories work seamlessly on both the top and side surfaces, allowing a single set of fixtures to serve the entire welding table.
| Item | Specification Parameter |
|---|---|
| Overall Dimension | 1000mm (L) × 1000mm (W) × 200mm (Side Height) |
| Hole Standard | D16, Φ16.10±0.03mm locating holes |
| Hole Grid Pitch | 50×50mm uniform grid on all 5 surfaces |
| Machining Process | 5-axis CNC one-time machining for top + four vertical sides |
| Available Material Option 1 | HT300 High-strength Cast Iron |
| Available Material Option 2 | Q355 Steel with full vacuum nitriding treatment |
Packaging: Fumigation-free plywood crate; rubber protective mat on the tabletop; edge protectors on all corners; accessories individually packed in foam to prevent transit damage or scratches to the nitrided surface; single-unit crate dimensions: 1060×1060×260mm.
Weight: Cast iron model gross weight ≈ 175kg; steel plate model gross weight ≈ 110kg.
HS Code: 732690 (Iron/steel tooling equipment); suitable for global export with no special commercial inspection restrictions.
Shipping Methods: Full Container Load (FOB), China-Europe Railway Express, or air freight for small samples; single welding tables are shipped via LCL (Less-than-Container Load) on pallets.
Non-standard sizes: Customizable dimensions such as 900×900, 4000×2000, etc.
Special configurations: Thickened tabletop, heavy-duty support frame, comprehensive fixture kit, and laser-engraved customer logo on the tabletop.
Integrated solutions: Turnkey welding tooling packages for robotic workstations, including welding table, full fixture set, and lifting base.
Technical support: English operation manuals, instructional videos on tooling setup, and remote video-based commissioning guidance; on-site installation and training services available for overseas customers upon request.
