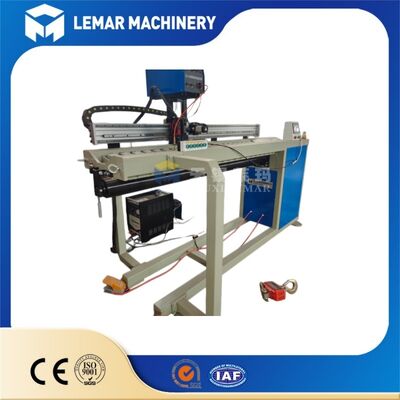

1200mm Automatic Longitudinal Straight Seam Welding Machine for Stainless Steel Cylinder
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 120.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | ,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
1200mm automatic straight seam welding machine
,stainless steel cylinder welding machine
,longitudinal seam welding machine with warranty
1200mm effective welding stroke automatic longitudinal seam welder, pneumatic full-length clamping + copper cooling fixture, minimal welding deformation, compatible with TIG/MIG welding power source, perfect for stainless steel tank, water tank, pipeline cylinder mass production, CE certified, factory direct customization available.
| Key Parameter | Technical Index |
|---|---|
| Effective Welding Length | 1200mm |
| Applicable Workpiece Diameter | Φ100mm - Φ1200mm |
| Adapted Plate Thickness | 0.6mm - 6mm |
| Welding Travel Speed | 0.2-3m/min stepless adjustable |
| Clamping Mode | Pneumatic key-type full-length clamping |
| Control System | PLC + Touch Screen |
| Supported Welding Type | TIG / MIG / MAG |
| Power Supply | 380V/415V 50/60Hz (customizable) |
| Certification | CE, ISO9001 |
- Weld Quality Standardization: Uniform weld bead width & penetration rate, reject rate of longitudinal seam reduced by over 80% compared with manual welding, meet pressure vessel non-destructive testing standards.
- Labor Cost Reduction: Only one operator for feeding & unloading, cancel skilled senior welders for straight seam operation, greatly cut labor salary expenditure.
- Shorten Production Cycle: Continuous automatic welding, production efficiency increased 3-5 times vs manual welding, support order rush delivery.
- Low Post-Workload: Small welding deformation, less grinding & shaping work after welding, save post-processing time and abrasive.
- Main machine frame fixed with high-strength steel wire, electrical cabinet and precision fixtures packed with fumigated wooden case for sea freight anti-collision protection
- Complete operation manual, wiring diagram, parameter setting guide and vulnerable spare parts attached
- Professional container loading layout design, provide detailed packing list for buyer customs clearance
- Support FOB, CIF, DDP international trade terms, coordinate door-to-door delivery service
Combine this straight seam welder with our other welding equipment to build a full-automatic cylinder tank production line, greatly improve overall workshop productivity:
- Welding Rotator / Fit-up Rotator: Complete circumferential seam welding after longitudinal seam forming, realize full circumference welding of tank body.
- Welding Positioner: Used for head flange assembly and auxiliary welding of tank bottom and tank mouth.
- CNC Plasma Cutting Machine: Cut cylinder blank steel plate accurately for subsequent straight seam splicing.
- Welding Manipulator: Match with rotator for long vessel outer circle automatic submerged arc welding.
- Hydraulic Tank Head Spinning Machine: Process tank end caps, form complete tank assembly production flow.
A1: It is suitable for plates from 0.6mm to 6mm, covering thin stainless steel plates, carbon steel and aluminum plates for water tanks and pressure vessels.
A2: Yes. The machine is compatible with mainstream TIG, MIG and MAG welding power sources. We can reserve the interface according to your welder brand and model.
A3: Standard effective welding length is 1200mm. We support customized lengthened or shortened travel stroke to match your cylinder height requirements.
A4: Equipped with full-length pneumatic compression and back water-cooled copper liner for rapid heat dissipation, which effectively controls thermal deformation and realizes single-side welding double-side forming.
A5: Perfect matching. After longitudinal seam welding, place the cylinder on welding rotator for circumferential welding to finish the whole tank body fabrication.
