30kg Welding Positioner Rotary Welding Turntable for Pipe Flange Welding
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 38.00cm * 37.00cm * 38.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
BWJ-3
Document
Model NO. BWJ:
BWJ-3
Max Eccentricity Distance:
150mm
Voltage:
110V/220V
Condition:
New
Max Loading Weight:
30kg
Welding Chuck:
3 Three-Jaw
Suitable Chuck:
Kd-150/200/300/400/500/600
Optional:
TIG MIG Mag Welder
Oversize:
Customized
Highlight:
30kg welding positioner turntable
,rotary welding turntable for pipe
,welding positioner for flange welding
Product Description

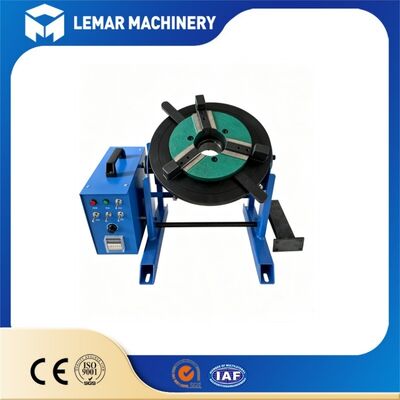

30kg Welding Positioner Rotary Welding Turntable for Pipe Flange Welding
Product Overview
WP-30 small welding positioner is lightweight rotary welding equipment designed for small circular workpieces. It features a three-jaw self-centering chuck to securely clamp pipes, flanges, and elbows. The tilting function enables positioning workpieces to horizontal welding positions, enhancing both welding quality and operational convenience. With a separate speed control box, operators can freely adjust rotation speed. Widely used in small machining workshops, pipeline prefabrication, and hardware circular parts welding applications.
Technical Specifications
| Item | Specification |
|---|---|
| Model | BWJ-30 |
| Horizontal Rated Load | 30kg |
| Vertical Overturn Load | 15kg |
| Turntable Diameter | 310mm |
| Turntable Center Hole | 25mm |
| Rotation Speed | 1-15rpm stepless adjustable |
| Tilting Range | 0°-90° Manual Handwheel Adjustment |
| Driving Motor Power | 80W |
| Input Voltage | 220V 50/60Hz (110V customizable) |
| Control Mode | Control Box + Foot Pedal |
| Overall Dimension | 380×360×400mm |
| Net Weight | 45kg |
| Optional Accessory | 200mm/300mm 3-jaw chuck, welding torch stand |
| Certification | CE Available |
| Warranty Period | 12 Months |
Core Features
-
Worm Gear Self-locking Tilt MechanismManual handwheel tilting 0-90° with worm gear structure providing strong self-locking performance. No shaking during welding, ensuring stable workpiece angle fixation for all-position welding.
-
Stepless Variable Rotation SpeedDC high-torque drive motor with rotating speed adjustable from 1-15rpm, accommodating different welding speed requirements for both thin and thick plates.
-
Foot Switch Control for Easy OperationIndependent foot pedal control allows welders to keep hands free for operating welding torches, significantly improving continuous welding efficiency.
-
Universal Worktable & Rich Optional Fixtures310mm large hole turntable with reserved mounting holes for fixtures; optional 200/300mm three-jaw welding chuck for fast clamping of round pipes.
-
Sturdy Integrated Frame & Anti-interference DesignThick steel frame anti-vibration welding structure with internal anti-high-frequency interference circuit, compatible with TIG high-frequency welding without equipment failure.
Application Industries
- Pipe flange circular seam welding
- Small cylinder, elbow, valve body welding
- Stainless steel pipe fitting processing
- Hardware mechanical parts welding
- Equipment maintenance & repair workshop
- Vocational school welding training
- Small batch circular workpiece automated welding
Customization Services
- Input voltage customization: 110V/220V/380V for global countries
- Equip 200mm/300mm self-centering three-jaw chuck
- Add welding torch support frame for automatic linkage welding
- Timing rotation control function upgrade
- Custom turntable hole position and special fixture
- English control panel and operation panel
Packing & Shipping
Export Packaging: Standard plywood case with internal moisture-proof film, fixed with steel belt
Trade Term: EXW / FOB Shanghai / FOB Ningbo negotiable
Production Lead Time: 7-10 working days upon deposit
Shipping Method: Sea freight, air freight, international land transport
Frequently Asked Questions
What is the maximum horizontal load of this 30kg welding positioner?
Rated horizontal load is 30kg, vertical tilting load is 15kg. Please arrange workpiece weight within the rated load for stable operation.
Does the positioner support TIG high-frequency welding?
Yes. The circuit is equipped with high-frequency anti-interference design, compatible with TIG, MIG, MAG and carbon arc welding equipment.
Can I add a three-jaw chuck to clamp round pipes?
Optional 200mm or 300mm self-centering three-jaw chuck is available, which greatly speeds up clamping of tubular and flange workpieces.
Is the tilting angle lockable at arbitrary positions?
0-90° manual tilting with worm gear self-locking structure, any angle can be fixed firmly without shaking during welding.
Can the rotation speed be adjusted freely?
Rotation speed ranges from 1rpm to 15rpm with stepless speed regulation, adaptable for thin plate and thick plate circular welding.
Can you provide CE documents for customs clearance?
Complete CE certification files, English operation manuals and maintenance guides can be provided to meet EU import and factory compliance requirements.
