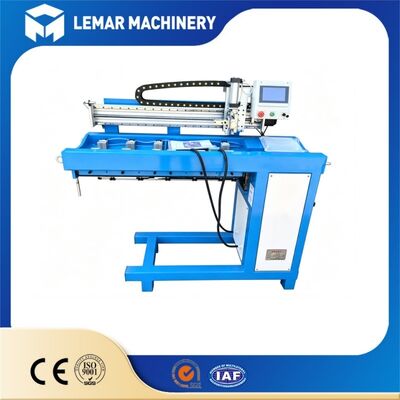

ZF1200 Automatic Straight Seam Welder for 1200 mm Metal Cylinder Barrel Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 100.00cm * 80.00cm * 120.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The ZF1200 longitudinal straight seam welding machine is designed for 1200 mm medium long seam fabrication. Its rigid cantilever frame and full-length pressing system effectively reduce seam offset, workpiece deviation, and thermal deformation. Ideal for tank, barrel, and thin-wall tubular parts manufacturing, this machine enables one-side welding with double-side forming to significantly increase finished product rates.
- Upgraded 1200 mm welding stroke accommodates medium to large cylinder parts, eliminating the need for secondary re-welding
- Stress-relieved heavy-duty integral frame ensures stable long-run production with consistent welding accuracy
- Full-section pneumatic piano key pressing prevents sheet bounce, gaps, and wrinkling during high-speed welding
- Water-cooled copper mandrel with optional back-side gas shielding minimizes heat deformation for smooth weld appearance
- PLC touch screen control supports parameter saving and quick recipe switching for flexible batch production setup
| Item | Specification |
|---|---|
| Model | ZF1200 |
| Effective Welding Length | 1200 mm |
| Minimum Workpiece Inner Diameter | 120 mm |
| Applicable Thickness | 0.5 mm to 4.0 mm |
| Welding Speed Range | 120 mm/min to 1200 mm/min (stepless adjustable) |
| Control System | PLC plus Touch Screen |
| Driving Mode | Rack and Pinion Transmission |
| Air Supply | 0.3 MPa to 0.7 MPa |
| Power Supply | 220V/380V, 50 Hz to 60 Hz |
| Optional Accessories | Back side gas protection, Water cooling unit, Seam tracking device |
- Designed for cylindrical and open shell workpieces, ideal for tank and pressure vessel component manufacturing
- Works with carbon steel, stainless steel, and aluminum alloy, compatible with TIG, MIG, MAG, and Plasma welding sources
- Processes material thickness from 0.5 mm to 4.0 mm, covering thin sheet and medium plate welding requirements
- Supports fine welding and high-volume production, adaptable for trial orders and assembly line manufacturing
- Minimum inner diameter of workpiece reaches 120 mm, satisfying various cylinder dimension demands
- Cantilever layout simplifies loading and unloading, reducing workpiece positioning time
- High-precision rack and pinion drive with stepless welding speed ensures straight and uniform weld seams
- Multi-directional torch fine-tuning corrects assembly errors and improves product yield
- Foot switch auto cycle control reduces manual operation errors and labor intensity
- Modular construction facilitates easy inspection, maintenance, and component replacement
A: This machine is designed for 1200 mm longitudinal seam welding, primarily for open shell, stainless steel tank, barrel, and thin-wall tubular workpieces.
A: Yes. It welds carbon steel, stainless steel, and aluminum alloy, and is compatible with TIG, MIG, MAG, and Plasma welding sources.
A: Yes. The welding speed ranges from 120 mm/min to 1200 mm/min with stepless adjustment, suitable for both fine work and mass production.
A: Custom services are available. We can adjust voltage specifications and install optional accessories such as back-side gas protection or seam tracking devices.
A: Minimum order quantity is 1 set. Lead time is 15 to 20 working days after deposit receipt.
