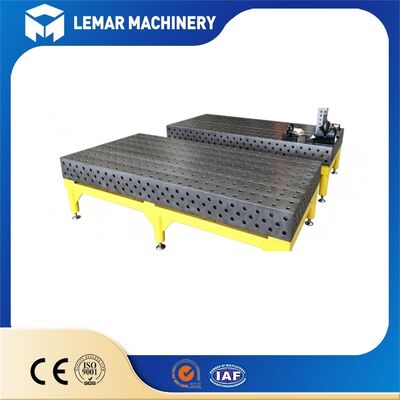

D28 3D Welding Table with 28mm Holes for Accurate Fixturing

D28 3D Welding Table with 28mm Holes for Accurate Fixturing

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200
Delivery Period: 15-25 work days
Payment Method: D/A,L/C,D/P,T/T
Supply Capacity: 500 units/month
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
CE certificate.pdf
Hole Diameter:
Φ28 Mm (D10 Tolerance)
Grid Spacing:
100 × 100 Mm ±0.05mm
Structure:
Five-sided Fully Machined 3D Working Surface
Flatness:
0.1 Mm / 1000 Mm (Precision:0.05mm/1000mm)
Material Option:
Q355 Steel Plate/HT 300 Cast Iron
Surface Treatment:
Gas Nitriding (Standard)
Surface Hardness:
HV550+
Nitriding Layer:
0.25 ~ 0.35 Mm
Custom Size:
Available
Highlight:

D28 3D welding table with 28mm holes

,

welding fixture table for accurate fixturing

,

3D welding table with precise hole spacing

Product Description
D28 3D Welding Table with 28mm Holes for Accurate Fixturing
D28 3D Welding Table overview

Upgrade your welding workshop with the D28 3D Welding Table with 28mm Holes for Accurate Fixturing. Designed for accurate, repeatable fixturing, this five-sided 3D welding table uses the industry-standard Φ28mm hole system, allowing you to assemble custom clamping solutions within minutes. Thanks to precise machining, stress relief and wear-resistant nitriding finish, the table resists deformation and weld spatter adhesion. Swap workpieces rapidly without custom jig fabrication, boost production efficiency and improve welding consistency for manual and robotic welding applications.

D28 3D Welding Table with 28mm Holes for Accurate Fixturing  D28 3D Welding Table with 28mm Holes for Accurate Fixturing
D28 3D Welding Table Size Specifications
Table Dimension (L × W) Standard Working Height Table Thickness Uniform Load Capacity Splicable
1000 × 800 mm 750 mm / 800 mm 25 mm 2000 kg/㎡ Yes
1000 × 1000 mm 750 mm / 800 mm 25 mm 2000 kg/㎡ Yes
1200 × 800 mm 750 mm / 800 mm 25 mm 2000 kg/㎡ Yes
1500 × 1000 mm 750 mm / 800 mm 25 mm 2500 kg/㎡ Yes
2000 × 1000 mm 750 mm / 800 mm 25 mm 2500 kg/㎡ Yes
2400 × 1200 mm 750 mm / 800 mm 25 mm 2500 kg/㎡ Yes
3000 × 1500 mm 750 mm / 800 mm 25 mm 3000 kg/㎡ Yes
4000 × 2000 mm 750 mm / 800 mm 25 mm 3000 kg/㎡ Yes
Product Advantages
Welding table advantages illustration
  • Rapid changeover: setup time for new product tooling reduced by over 70%
  • Stable dimensional accuracy, effectively controlling welding tolerances and minimizing rework
  • 5-sided 3D structure, eliminating clamping blind spots for complex spatial geometries
  • Global standard D28 hole system, ensuring cross-brand compatibility of accessories
  • Nitrided welding table resistant to weld spatter and corrosion, offering a long service life
Differentiation from Market Competitors

1. High-Quality D28 Welding Table (Our Standard)
Comprehensive stress-relief aging + monolithic 5-face CNC milling + full-surface nitriding + strict tolerances; ensures stable precision during long-term use and high resistance to hole wear.

2. Low-Cost, Inferior Table (Competitor Products)
Milling limited to the top surface with minimal side-wall processing; no vibration aging; surface blackening only (no nitriding); loose hole tolerances; prone to deformation, slag adhesion in holes, and rapid loss of precision after six months of use.

FAQ
Q: Are your D28 fixtures compatible with other brands' D28 welding tables?
A: Yes. We follow international D28 standard hole system. All modular accessories are interchangeable with global mainstream D28 series.
Q: What is your lead time?
A: Standard sizes: 15-20 working days. Customized specifications: 25-35 working days. The exact schedule will be confirmed on Proforma Invoice.
Q: What industries are D28 3D welding tables suitable for?
A: Widely used for heavy machinery, truck & trailer frames, agricultural equipment, rail components, steel structure fabrication and robotic welding stations.
Q: Are supporting legs included in the table price?
A: The quotation only includes the tabletop by default. Support legs, clamping fixtures and other accessories are optional extra items. We supply fixed legs, height-adjustable legs and mobile caster legs for selection.
Q: Can multiple D28 welding tables be spliced together?
A: Yes. Tables can be precisely connected via splicing plates and D28 locking pins. After splicing, the hole system maintains unified accuracy for extra-large workpieces. Re-leveling is required after installation.

Want more details about the D28 3D Welding Table with 28mm Holes for Accurate Fixturing? Send us your size requirements and application scenarios. We provide custom specifications, matching fixture packages and reliable bulk pricing. Drop your inquiry, and our sales engineer will reply to you within 24 hours.
